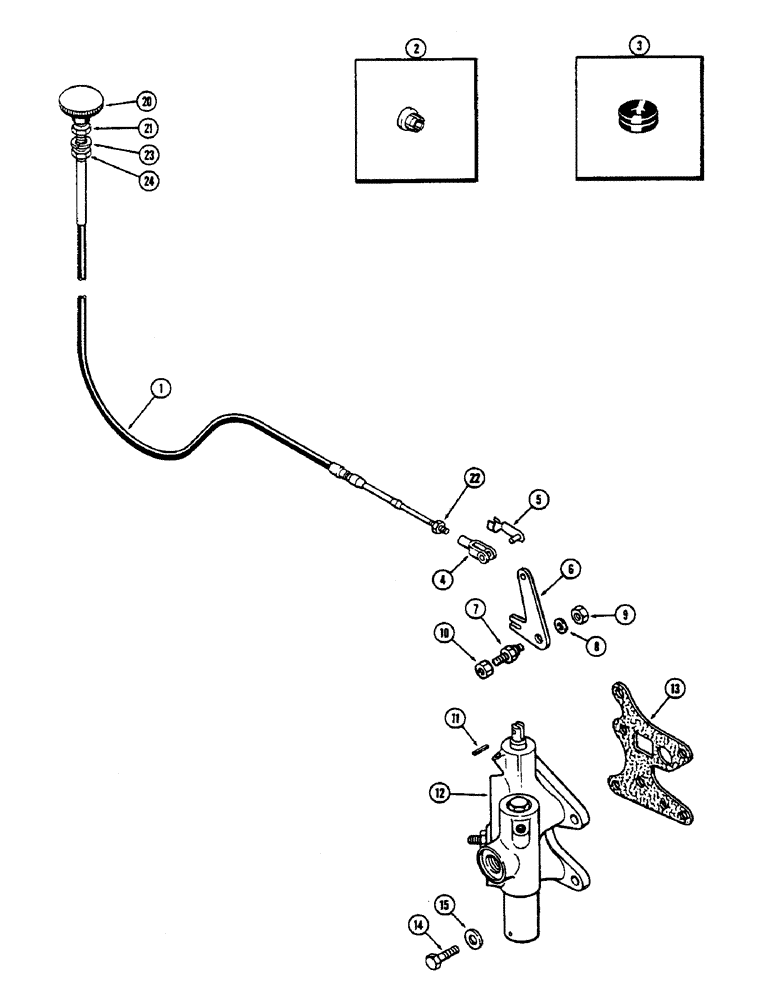

Запчасти Case IH 2390 (6-220) - PTO CONTROL LINKAGE (06) - POWER TRAIN

1

A160693

CABLE

- PTO control (Replaces A145221)

1шт.

2

A67295

PLUG

- cable

1шт.

3

A141389

GROMMET

- cable

1шт.

4

A141286

YOKE

- 3/16" plastic (4.83 MM)

1шт.

5

A149683

PIN

- spring clevis, 3/16"

1шт.

6

A141132

LEVER

- PTO

1шт.

7

A160040

STUD

- PTO lever

1шт.

8

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (9.52 x 22.22 x 1.98 MM)

1шт.

9

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" center lock jam

1шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

11

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

1шт.

12

REF

INSTRUCTION

VALVE ASSEMBLY - PTO control (See Figure 6-222)

1шт.

13

A145530

GASKET

- valve

1шт.

14

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

20

A164571

KNOB

- PTO control cable

1шт.

21

A149967

NUT

- PTO cable face plate

1шт.

22

129-121

NUT,1/4"-28, G5

1шт.

23

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

24

425-117

NUT,7/16"-20, G5

- 7/16" NF hex

1шт.
