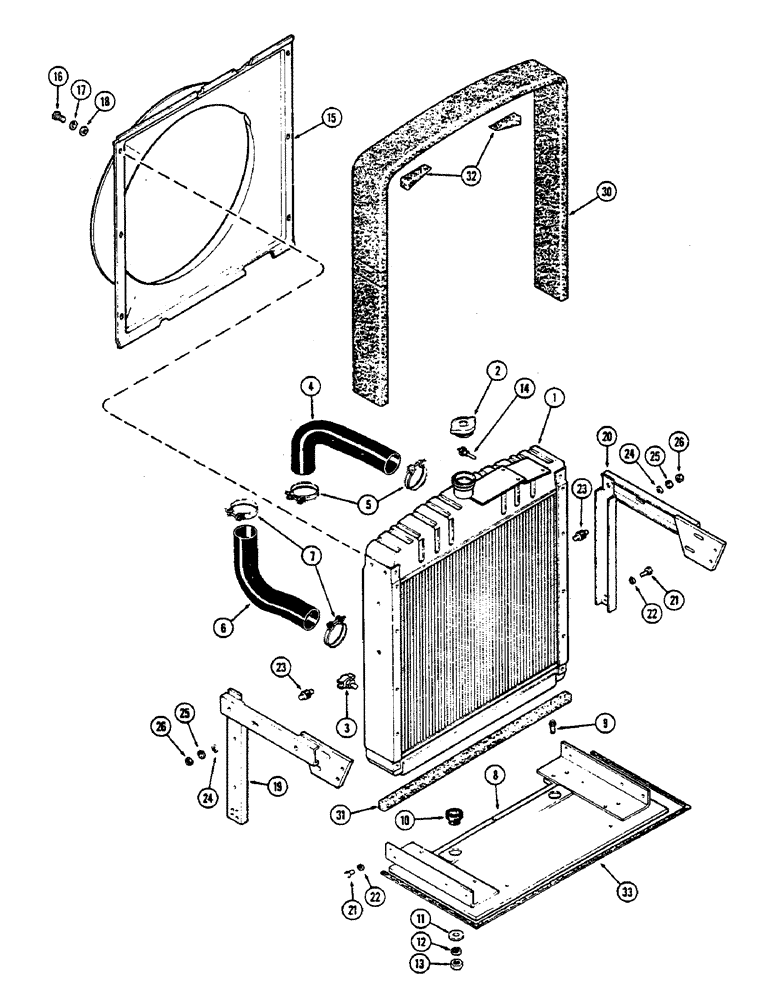

Запчасти Case IH 2390 (2-02) - RADIATOR AND ATTACHING PARTS, 504BDT, DIESEL ENGINE (02) - ENGINE

1

A147140

RADIATOR

- engine (Replaces A147139)

1шт.

2

A143721

CAP

- radiator filler, 10 PSI (68.95 kPa)

1шт.

3

A23656

COCK, DRAIN

VALVE - radiator drain

1шт.

4

A141495

RADIATOR HOSE,2.50" ID, SAE 20R4

Inlet 2.50" ID, SAE 20R4

1шт.

5

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - inlet hose

2шт.

6

A141496

RADIATOR HOSE,2.62" ID, SAE 20R4

Outlet 2.62" ID, SAE 20R4

1шт.

7

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - outlet hose

4шт.

8

A147135

SUPPORT

- hood and radiator

1шт.

9

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

10

A59863

MOUNTING PARTS

MOUNT - radiator, rubber

2шт.

11

51200247

WASHER

- snubber, 9/16 x 1-3/4 x 9/64" (14.22 x 44.45 x 3.56 MM), Gasket, Transmission Case Cover

2шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

14

A145513

SENSOR

PROBE - coolant level sender

1шт.

15

A147138

GUARD

SHROUD - fan

1шт.

16

A161360

BOLT

- 1/4 x 1/2" NC hex washer head, production only

6шт.

16

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Washer head, service only Hex, 1/4"-20 x 5/8", G5, Full Thd

6шт.

17

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16", service only

6шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Service only 1/4"

6шт.

19

A145679

CHANNEL

SUPPORT - radator, RH

1шт.

20

A145678

CHANNEL

SUPPORT - radiator, LH

1шт.

21

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

A145743

MOUNTING PARTS

MOUNT - radiator upper, rubber

2шт.

24

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

30

A149133

SEAL PROTECTION

-, Serial Range: radiator-hood

1шт.

31

A149962

SEAL

- radiator lower

1шт.

32

A149300

SEAL

- upper radiator seal wedge

1шт.

33

A149131

SEAL PROTECTION

- lower grille

1шт.

A161360

BOLT

- 1/4 x 1/2" NC hex washer head, production only

6шт.

Production only, for service order 113-2 bolt, 195-102 washer, and 192-19 washer.

1шт.
