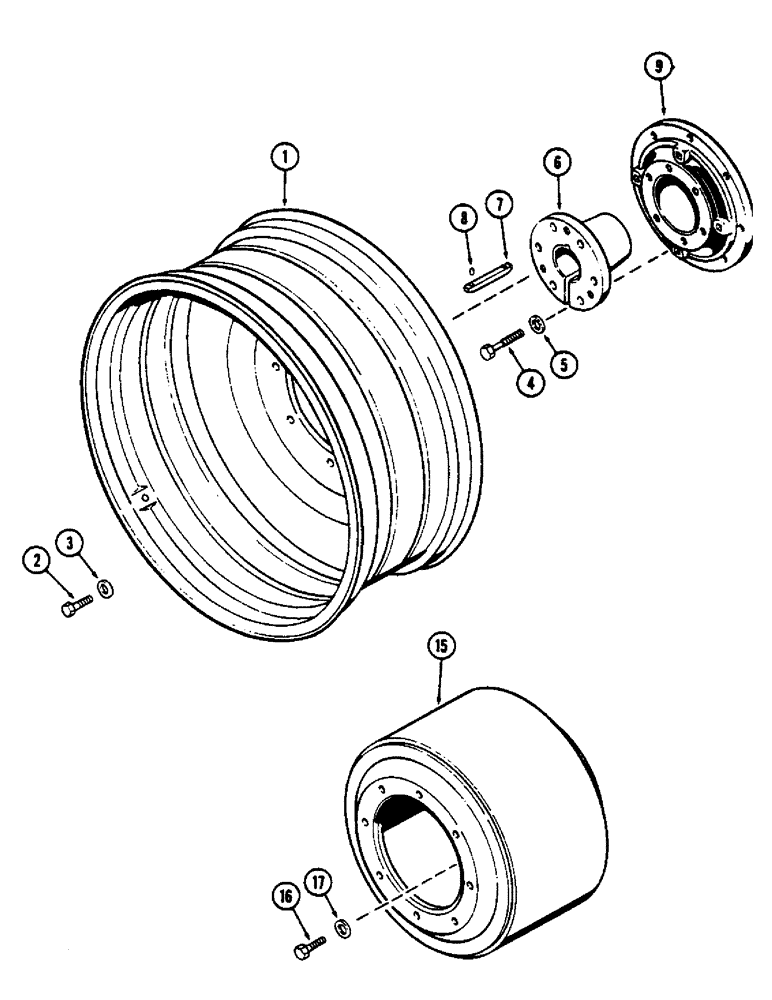

Запчасти Case IH 2390 (6-214) - DUAL REAR WHEELS, STEEL, WITH 38" RIMS (965.20 MM) (06) - POWER TRAIN

A67511

ATTACHMENT - wheel, used with 18.4 x 38 tire (Machinery item) (Includes Ref 1, 16 and 17)

1шт.

A67512

ATTACHMENT - wheel, used with 20.8 x 38 tire (Machinery item) (Includes Ref 1, 16 and 17)

1шт.

1

A145459

WHEEL

- steel (Use with 18.4 x 38 tire), 3/4" holes

2шт.

1

A145460

WHEEL

- steel (Use with 20.8 x 38 tire), 5/8" holes

2шт.

2

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- 3/4 x 1-3/4" NC hex (Grade 8)

16шт.

3

A64303

WASHER

- 41/64 x 1-1/16 x 1/16" (16.26 x 26.92 x 1.52 MM)

16шт.

4

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - 3/4 x 4-1/2" NC hex

12шт.

5

D31328

WASHER

- 49/64 x 1-5/8 x 1/4" (19.56 x 41.15 x 6.35 MM)

12шт.

6

A59792

HUB

BUSHING - hub, used with 3-1/2" diameter axle (88.9 MM)

2шт.

6

A63805

BUSHING

- hub, used with 3-7/8" diameter axle (98.42 MM)

2шт.

7

A63219

KEY

-, Serial Range: wheel-hub

2шт.

8

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

9

A145321

HUB CAP

HUB - universal, used with 3-1/2" diameter axle (88.9 MM)

2шт.

9

A145322

HUB

- universal, used with 3-7/8" diameter axle (98.42 MM)

2шт.

15

A149059

BUSHING

SPACER - dual wheel

2шт.

16

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

16шт.

16

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4 x 2-1/2" NC hex (Grade 8)

16шт.

17

D31328

WASHER

- 49/64 x 1-5/8 x 1/4" hardened (19.45 x 41.27 x 6.35 MM)

16шт.
