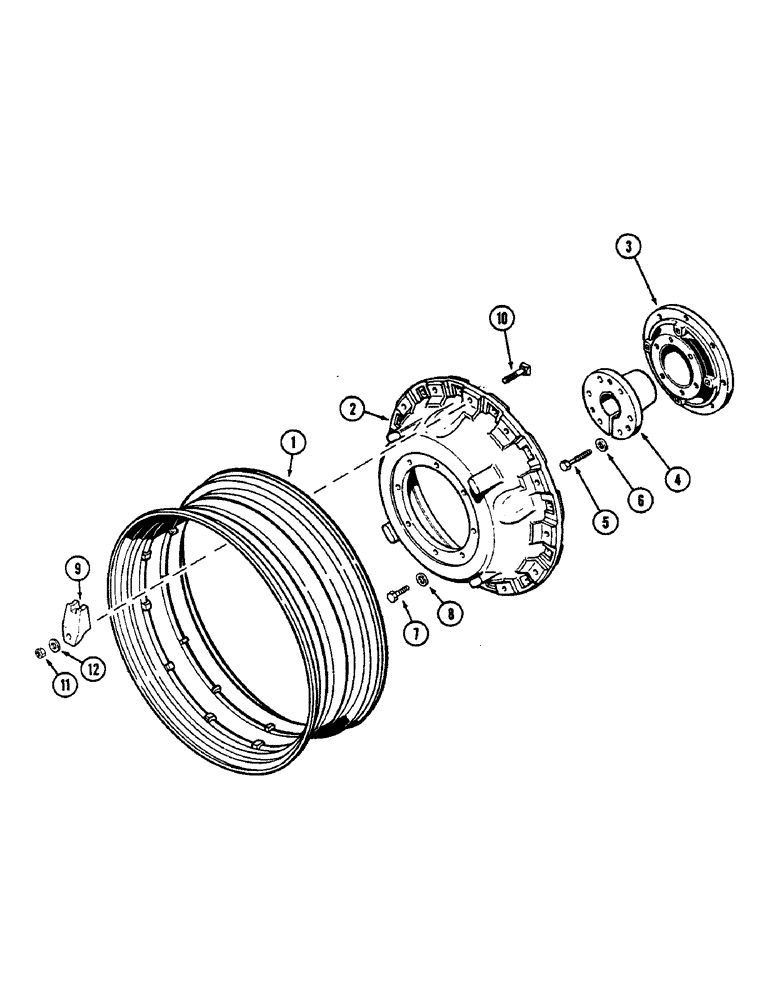

Запчасти Case IH 2390 (6-210) - REAR WHEELS, CAST, WITH 42" RIMS (1066.80 MM) (06) - POWER TRAIN

1

A162442

RIM - rear wheel (Use with 18.4 x 42 tire) (Order A160412)

2шт.

1

A162441

RIM - rear wheel (Use with 20.8 x 42 tire) (Order A160413)

2шт.

2

A161818

WHEEL

- rear (Replaces A145464 and A149665)

2шт.

3

A145321

HUB CAP

HUB - universal, Used with 3-1/2" diameter axle (88.9 MM)

2шт.

3

A145322

HUB

- universal, Used with 3-7/8" diameter axle (98.42 MM)

2шт.

4

A59792

HUB

BUSHING - rear wheel hub, Used with 3-1/2" diameter axle (88.9 MM)

2шт.

4

A63805

BUSHING

- rear wheel hub, Used with 3-7/8" diameter axle (98.42 MM)

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - 3/4 x 4-1/2" NC hex

12шт.

6

D31328

WASHER

- 49/64 x 1-5/8 x 1/4" (19.56 x 41.15 x 6.35 MM)

12шт.

7

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- 3/4 x 2-3/4" NC hex (Grade 8)

16шт.

8

D31328

WASHER

- 49/64 x 1-5/8 x 1/4" (19.56 x 41.15 x 6.35 MM)

16шт.

9

A57654

CLAMP

- double ramp, Serial Range: rim-wheel

32шт.

10

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- 3/4 x 3-1/2" NC square head (Grade 2)

32шт.

11

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- 3/4" NC hex

32шт.

12

A141125

WASHER

- 25/32 x 1-1/4 x 3/16" (19.84 x 31.75 x 4.76 MM)

32шт.
