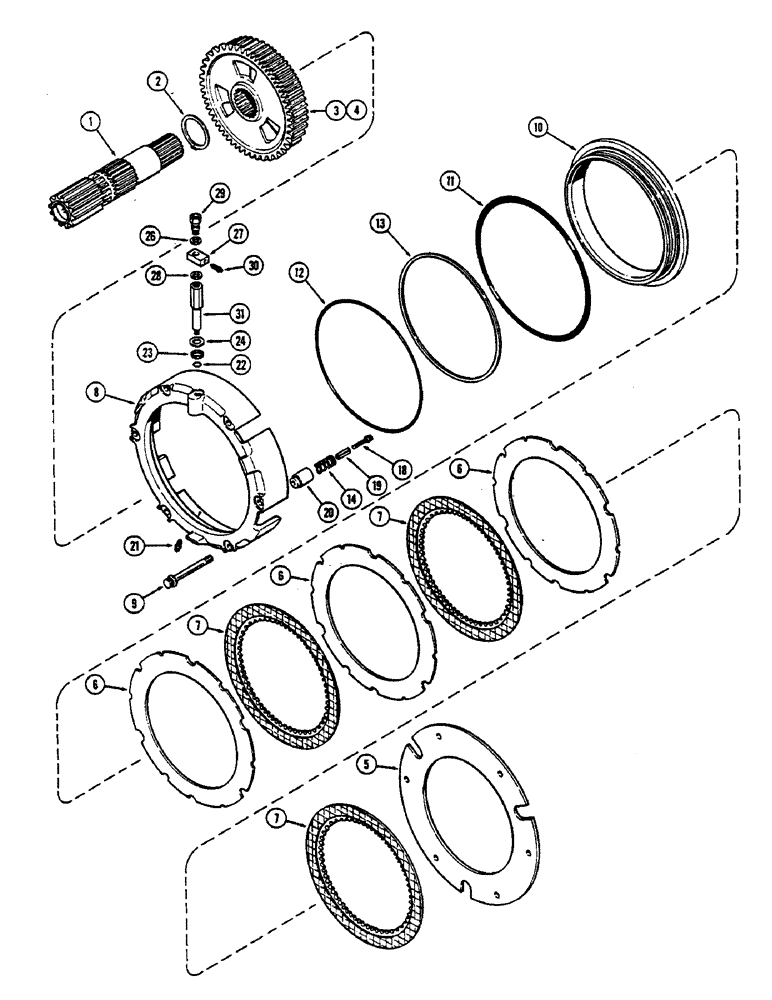

Запчасти Case IH 2390 (6-196) - DIFFERENTIAL, SHAFT AND BRAKE MECHANISM (06) - POWER TRAIN

1

A153938

SHAFT

- differential, with sun gear (Replaces A148020)

2шт.

2

F35283

SNAP RING,#231, Ext

Ring, Snap, , brake hub, 2.032 wide, 36 x 78 teeth #231, Ext

2шт.

3

A63196

HUB

- brake, RH, 2.032 wide, 36 x 78 teeth

1шт.

4

A63197

HUB

- brake, LH

1шт.

5

A63198

DISC

- brake, steel

2шт.

6

A63199

DISC

- brake, steel

6шт.

7

A67129

DISC

- brake, with lining

6шт.

8

A148019

CYLINDER

- brake support

2шт.

9

166-96

12 PT SCREW,Flg, 1/2" - 13 x 4", Gr 8

SCREW - 1/2 x 4" NC Ferry cap

12шт.

10

A65540

PISTON

- brake

2шт.

A44338

KIT

- O-ring, differential piston, Includes: Ref. 11 - 13

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 11-31/32 x 12-15/32 x 7/32" (304.04 x 316.74 x 5.59 MM)

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 11-15/32 x 11-29/32 x 7/32" (291.34 x 302.51 x 5.59 MM)

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup (Groove towards outside)

1шт.

14

A63203

SPRING

- brake return

6шт.

18

A155494

LOCK BOLT,1/4" - 20 x 1-3/4", Gr 8

SCREW - 1/4 x 1-3/4" Ferry head jaylock

6шт.

19

A154608

PIN

- roll, 7/16 x 1-1/4"

6шт.

20

A63202

PIN

- brake disc

6шт.

21

A41491

BLEEDER,1/4" - 28 x 23.37mm

- brake bleed (In cylinder)

2шт.

22

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 1/4 x 23/64 x 5/64" (6.35 x 19.14 x 2.03 MM)

2шт.

23

A64071

GROMMET

- brake fitting

2шт.

24

195-2073

WASHER,0.69" ID x 1.25" OD x 0.07" Thk

- 11/16 x 1-1/4 x 1/16" (17.46 x 31.75 x 1.59 MM)

6шт.

26

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - connector

2шт.

27

A64072

FITTING

BANJO - brake bleeder

2шт.

28

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- banjo

2шт.

29

A64073

HOLLOW SCREW

- connector

2шт.

30

A41491

BLEEDER,1/4" - 28 x 23.37mm

- brake bleeder (In banjo)

2шт.

31

A66395

FITTING

- hydraulic brake (In cylinder)

2шт.
