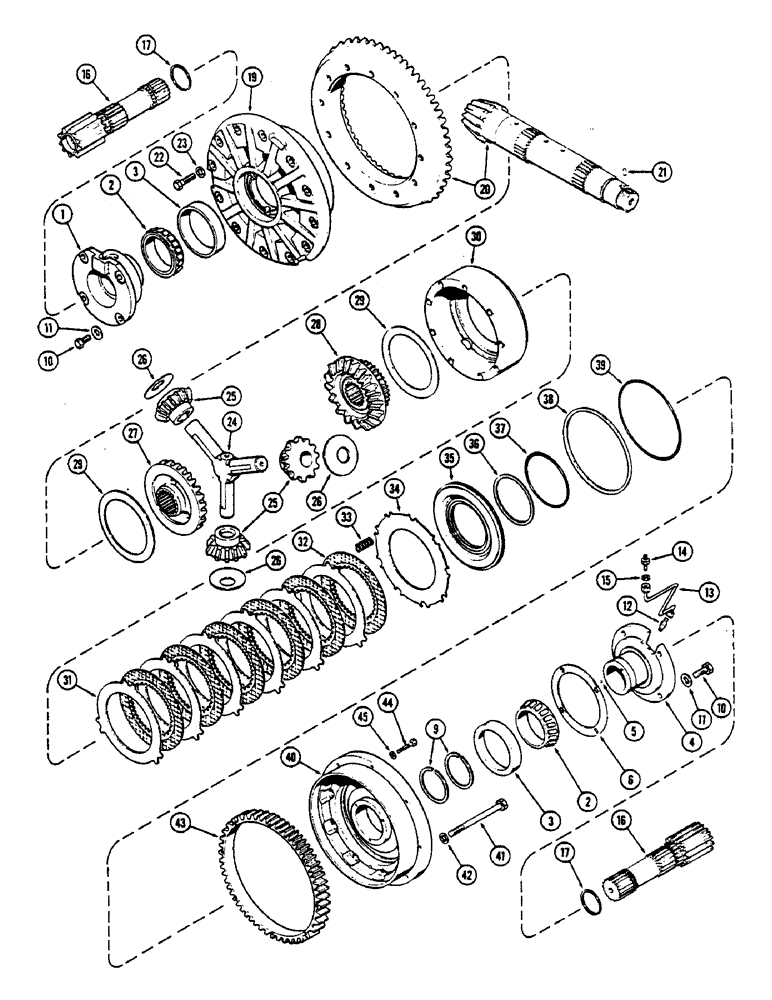

Запчасти Case IH 2390 (6-194) - DIFFERENTIAL, BEARING CARRIER, CAGE, SIDE GEAR AND SHAFT (06) - POWER TRAIN

1

A63190

CARRIER,2.4" ID x 7.4" OD x 3.49"

- differential bearing, RH

1шт.

2

A63185

ROLLER BEARING,85 mm ID x 130 mm OD x 24, 30.20 mm

CONE - bearing, ring gear cage 3-11/32" ID (84.84 MM)

2шт.

3

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing, ring gear cage 5-1/8" OD (130.05 MM)

2шт.

4

A66499

CARRIER

ASSEMBLY - differential bearing, LH (Order A148761), Includes: Ref. 5

1шт.

5

211-5

BALL,3/16" Dia

- meter (4.76 MM) 3/16" Dia

1шт.

6

A63186

SHIM,.015" Thk

Brg. carrier, LH (0.38 mm) .015" Thk

1шт.

6

A63187

SHIM,.007" Thk

Brg. carrier, LH (0.18 mm) .007" Thk

1шт.

6

A63188

SHIM,.005" Thk

Brg. carrier, LH (0.13 mm) .005" Thk

1шт.

8

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

- seal, bearing carrier, LH

4шт.

9

A63192

RING

(LH bearing carrier) Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

10

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(RH bearing carrier) Hex, 1/2"-13 x 1 3/4", G5

4шт.

11

A148376

WASHER

- 33/64 x 7/8 x 1/16" (13.21 x 22.35 x 1.52 MM)

8шт.

12

222-91

ELBOW,45 Degree, 1/2"-24 x 1/8" NPT

- 45 degree

1шт.

13

A64877

TUBE

- oil, differential lock clutch

1шт.

14

A154119

FITTING

- bulkhead

1шт.

15

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 1/4 x 23/64 x 5/64" (6.35 x 9.14 x 2.03 MM)

1шт.

16

A153938

SHAFT

- differential with sun gear (Replaces A148020)

2шт.

17

A63195

SNAP RING,#215, 2.060", Ext Spiral

RING - retaining, differential shaft

2шт.

19

NSS

NOT SOLD SEPARAT

CAGE - differential ring gear (Order A148119)

1шт.

20

A150517

GEAR

SET - pinion and spiral bevel (Matched set)

1шт.

21

138-69

LOCK PIN,5/32" x 1/2", Slotted

Pin, 5/32" x 1/2", Slotted

1шт.

22

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- 1/2 x 1-7/8" NC hex (Grade 8)

12шт.

23

A150672

WASHER

- 17/32 x 7/8 x 1/8" (13.46 x 22.35 x 3.05 MM)

12шт.

24

A63179

PIN

- differential pinion

1шт.

25

A66731

GEAR

- differential pinion bevel (Prior to transmission serial no. 10209293)

3шт.

25

A154889

GEAR

- pinion level (Transmission serial no. 10209293 and after)

3шт.

26

A64242

WASHER,32.05mm ID x 82.55mm OD x 0.81mm Thk

- thrust, pinion gear

3шт.

27

A148122

GEAR

- differential bevel side, RH (Prior to transmission serial no. 10209293)

1шт.

27

A154890

GEAR

- bevel side, RH (Transmission serial no. 10209293 and after)

1шт.

28

A148123

GEAR

- differential bevel side, LH (Prior to transmission serial no. 10209293)

1шт.

28

A154891

GEAR

- bevel side, LH (Transmission serial no. 10209293 and after)

1шт.

29

A138237

WASHER,137.92mm ID x 178.05mm OD x 0.86mm Thk

- thrust, differential side gears

2шт.

30

NSS

NOT SOLD SEPARAT

CAGE - differential intermediate (Order A148119)

1шт.

31

A63175

PLATE

- differential lock clutch, steel

6шт.

32

A136340

PLATE

- differential lock clutch, sintered

6шт.

33

A63172

SPRING

- return, differential lock piston

3шт.

34

A63173

PLATE

- differential lock piston return spring

1шт.

35

A146670

PISTON

- differential lock

1шт.

36

A146683

RING

- seal, internal, 4-15/32" ID x 7/64" square (113.54 x 2.79 MM)

1шт.

37

A150754

O-RING,4.718" ID x 0.107"

RING - seal, internal, 4-11/16" ID x 3/32" width (119.13 x 2.29 MM)

1шт.

38

A146682

RING

- seal, external, 8-9/32" OD x 7/64" square (210.31 x 2.79 MM)

1шт.

39

A150753

O-RING,7.84" ID x 0.107"

RING - seal, external, 7-7/8" OD x 3/32" width (200.15 x 2.29 MM)

1шт.

40

A144907

CAGE

- differential lock

1шт.

41

26-10100

BOLT,Hex, 5/8" - 11 x 6-1/4", Gr 8

- 5/8 x 6-1/4" NC hex (Grade 8)

9шт.

42

A64303

WASHER

- 41/64 x 1-1/16" (16.26 x 26.92 x 1.52 MM)

9шт.

43

A144583

GEAR

- park lock ring

1шт.

44

26-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8 x 1-3/4" NC hex (Grade 8)

8шт.

45

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- 27/64 x 3/4 x 1/32" (10.67 x 19.05 x 0.76 MM)

8шт.
