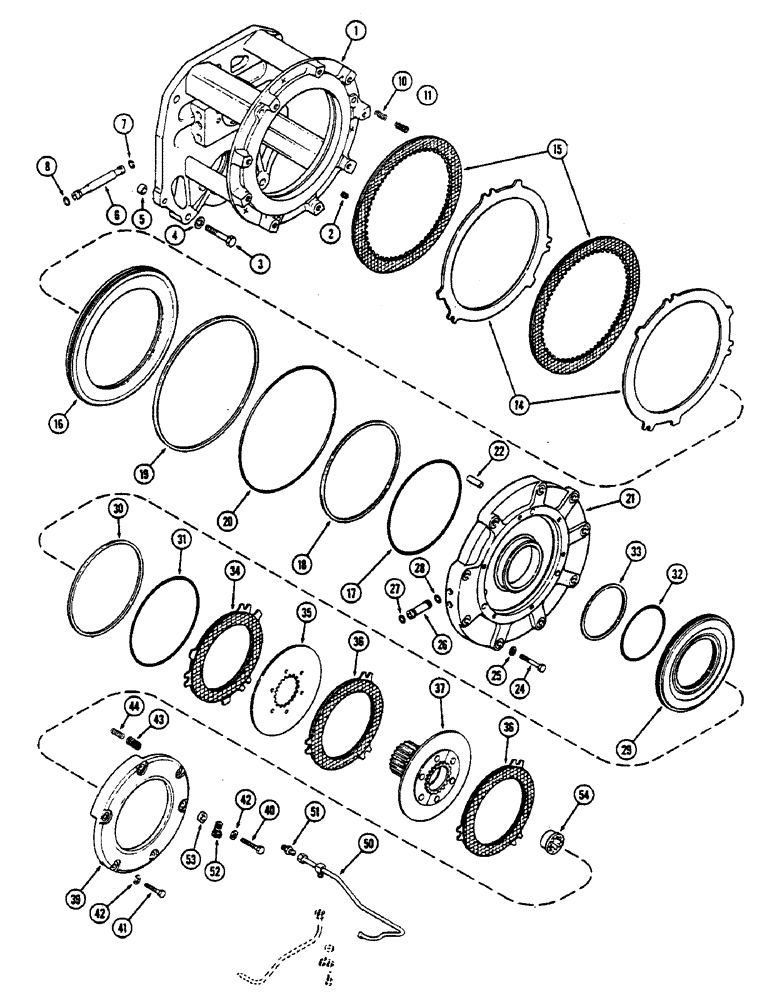

Запчасти Case IH 2390 (6-184) - CLUTCH, (C1) AND (C4) CLUTCHES (06) - POWER TRAIN

1

A151274

CARRIER

ASSEMBLY - power shift

1шт.

2

221-841

PLUG

- pipe, 1/4" hex socket head

2шт.

3

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

3

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2 x 2-1/2" NC hex (Grade 5)

3шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

A50011

SLEEVE

- dowel

2шт.

6

A152370

TUBE

- oil (C2) and (C3) clutch

3шт.

7

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 1/16 x 1/2 x 5/8" (1.52 x 12.7 x 15.75 MM)

3шт.

Part of Seal Kit, P/N A46286

1шт.

8

A65918

O-RING,0.551" ID x 0.691" OD

- 9/16 x 11/16 x 1/16" (14.22 x 17.53 x 1.52 MM)

3шт.

10

A62607

SPRING

- return (C4), 23/64" dia. x 1-3/32" free length (9.14 x 27.69 MM)

3шт.

11

A62606

SPRING

- return (C4), 9/16" dia. x 1-3/32" free length (14.22 x 27.69 MM)

3шт.

14

A58056

PLATE

- steel, (C4) clutch

2шт.

15

A67128

PLATE

- friction (C4) clutch

2шт.

16

A146671

PISTON

- (C4) clutch

1шт.

17

A150752

O-RING,9.206" ID x 0.107" OD

RING - seal, internal, 9-5/32" ID x 3/32" width (232.66 x 2.29 MM)

1шт.

Part of Seal Kit, P/N A46286

1шт.

18

A146681

SEAL

- seal, internal, 8-31/32" ID x 7/64" square (227.84 x 2.79 MM)

1шт.

Part of Seal Kit, P/N A46286

1шт.

19

A146680

RING

- seal, external, 12-9/16" OD x 7/64" square (319.02 x 2.79 MM)

1шт.

20

A150751

O-RING,12.09" ID x 0.107"

RING - seal, external, 12-1/16" OD x 3/32" width (306.32 x 2.29 MM)

1шт.

21

A150697

CARRIER

ASSEMBLY - piston (C1) and (C4), Includes: Ref. 22

1шт.

22

A65555

PIN

- clutch reaction plate, (C4) (1-37/64" long) (40.13 MM)

6шт.

24

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- 3/8 x 2-1/4" NC hex (Grade 8)

9шт.

25

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- 7/16 x 3/4 x 1/32" (11.18 x 19.05 x 2.29 MM)

9шт.

26

A152371

TUBE

- oil, (C1) and (C4) clutch

2шт.

27

A65918

O-RING,0.551" ID x 0.691" OD

- 9/16 x 11/16 x 1/16" (14.22 x 17.53 x 1.52 MM)

2шт.

28

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.75 x 1.52 MM)

2шт.

29

A146670

PISTON

- (C1)

1шт.

30

A146682

RING

- seal, external, 8-9/32" OD x 7/64" square (210.31 x 2.79 MM)

1шт.

Part of Seal Kit, P/N A46286

1шт.

31

A150753

O-RING,7.84" ID x 0.107"

RING - seal, external, 7-7/8" OD x 3/32" width (200.15 x 2.29 MM)

1шт.

Part of Seal Kit, P/N A46286

1шт.

32

A150754

O-RING,4.718" ID x 0.107"

RING - seal, internal, 4-11/16" ID x 3/32" width (119.13 x 2.29 MM)

1шт.

Part of Seal Kit, P/N A46286

1шт.

33

A146683

RING

- seal, internal, 4-15/32" ID x 7/64" square (113.54 x 2.79 MM)

1шт.

Part of Seal Kit, P/N A46286

1шт.

34

A142361

PLATE

- (C1) clutch, with tab (sintered)

1шт.

35

A152112

PLATE

- (C1) clutch, steel

1шт.

36

A142360

PLATE

- (C1) clutch, without tab (Sintered)

2шт.

37

A152113

PINION

PLATE - sun reaction, (C1) clutch

1шт.

39

A142240

PLATE

- (C1) reaction

1шт.

40

26-634

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 8

- 3/8 x 2-1/8" NC hex (Grade 8)

1шт.

41

26-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8 x 1-3/4" NC hex (Grade 8)

5шт.

42

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- 7/16 x 3/4 x 1/32" (11.18 x 19.05 x 0.76 MM)

6шт.

43

A62606

SPRING

- return (C1), 9/16" dia x 1-3/32" free length (14.22 x 27.94 MM)

3шт.

44

A62607

SPRING

- return (C1), 23/64" dia x 1-3/32" free length (9.14 x 27.94 MM)

3шт.

50

A150626

TUBE

- lubrication line to (C1) clutch

1шт.

51

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - tube to transmission housing

1шт.

52

49845

CLAMP

- tube

1шт.

53

R12644

BUSHING

SPACER - tube clamp, 7/16 x 13/16 x 3/8" (11.18 x 20.57 x 9.65 MM)

1шт.

54

A76482

BUSHING,20T

- front, input shaft

1шт.

A46286

SEAL KIT,Power Shift

KIT - seal, Includes: ref. nos. 7, 17, 18, 19, 20, 28, 30, 31, 32 and 33, on Figure: 6-188

1шт.
