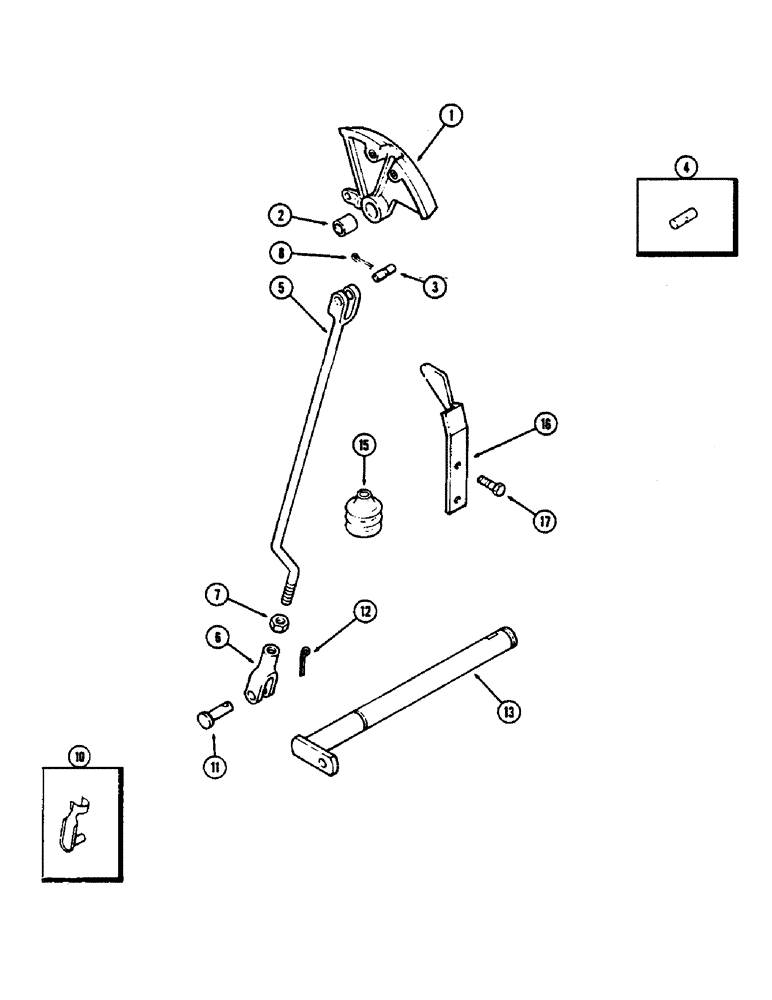

Запчасти Case IH 2390 (6-176) - PARK LOCK CONTROL (06) - POWER TRAIN

A160497

QUADRANT

ASSEMBLY (Includes Ref 2) (Order A161147 and A145484), Includes: Ref. 2

1шт.

1

A161147

QUADRANT

ASSEMBLY - park lock, Includes: Ref. 2

1шт.

2

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- 3/4" (19.05 MM) wide

1шт.

3

A145484

PIN,9.46mm OD x 28.57mm L

- rod to quadrant (With groove used with A161147)

1шт.

4

A59258

PIN

- rod to quadrant (With hole used with A160497)

1шт.

5

A135237

ROD

- control, Serial Range: quadrant-lever

1шт.

6

213-41

ADJUSTABLE CLEVIS,3/8"-24

- rod to lever 3/8"-24

1шт.

7

129-123

NUT,3/8"-24, G5

1шт.

8

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

Pin, Split (Cotter), 3/32" x 2"

1шт.

10

A147652

PIN

- yoke (Order Ref 11 and 12)

1шт.

11

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

12

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

Pin, Split (Cotter), 3/32" x 2"

1шт.

13

REF

INSTRUCTION

LEVER - park lock (See Figure 6-198)

1шт.

15

A145931

BELLOWS

COVER - dust

1шт.

16

A141543

BRACKET

- locating

1шт.

17

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - 1/4 x 3/4" hex self tapping

2шт.
