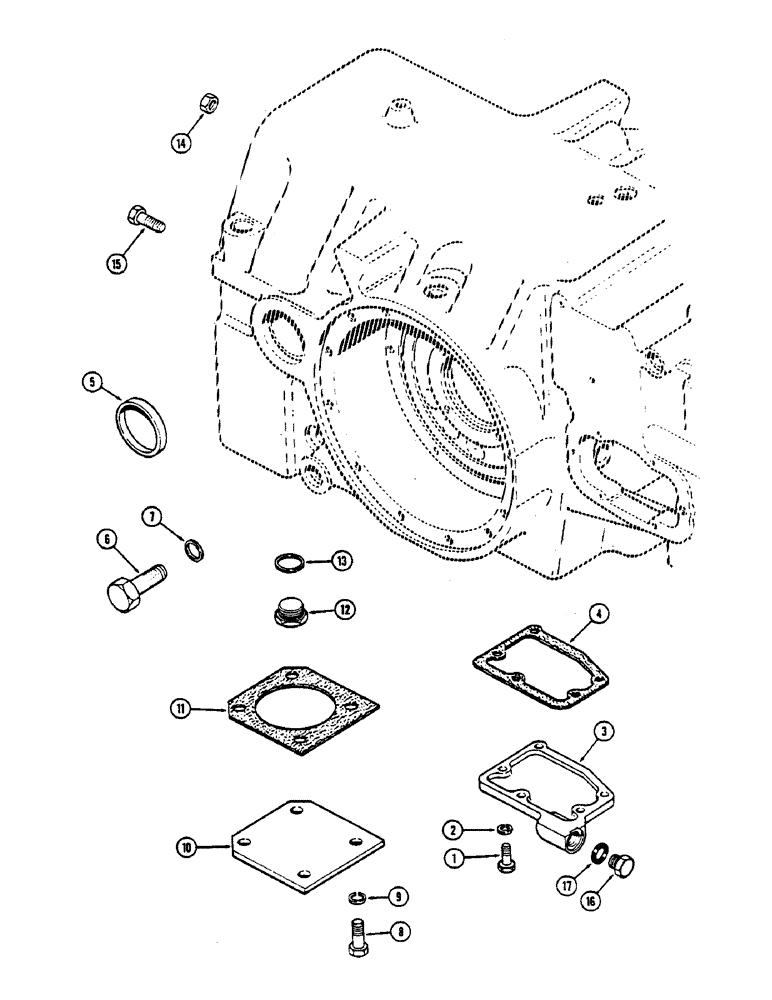

Запчасти Case IH 2390 (6-170) - TRANSMISSION COVER AND HYDRAULIC CIRCUITRY, USED WITHOUT HITCH (06) - POWER TRAIN

1

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

2

92-6

LOCK WASHER,3/8"

5шт.

3

A64015

COVER

- manifold

1шт.

4

A64016

GASKET

- manifold

1шт.

5

A63091

PLUG,Cup, 3 7/8"

- oil retaining (Rockshaft hole opening)

2шт.

6

13-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

- 1 x 3" NC hex (Grade 5) (Bellcrank stud hole)

1шт.

7

A27366

GASKET

- bolt

1шт.

8

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

8шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

A63496

COVER

- lift cylinder

2шт.

11

A63497

GASKET

- cover

2шт.

12

A63498

PLUG

- transmission hitch linkage opening

1шт.

13

A63447

GASKET

- plug

1шт.

14

129-563

NUT,5/8"-11, G8

- 5/8" NC hex, PTO stud

2шт.

15

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- 5/8 x 2" NC hex., PTO cover to housing (Grade 8)

2шт.

16

86512512

PLUG,7/8" - 14 ORB

Assy, Manifold cover, Incl. Ref. 17 Hex Hd, 7/8"-14 ORB

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32" (15.75 x 19.05 x 2.29 MM)

1шт.
