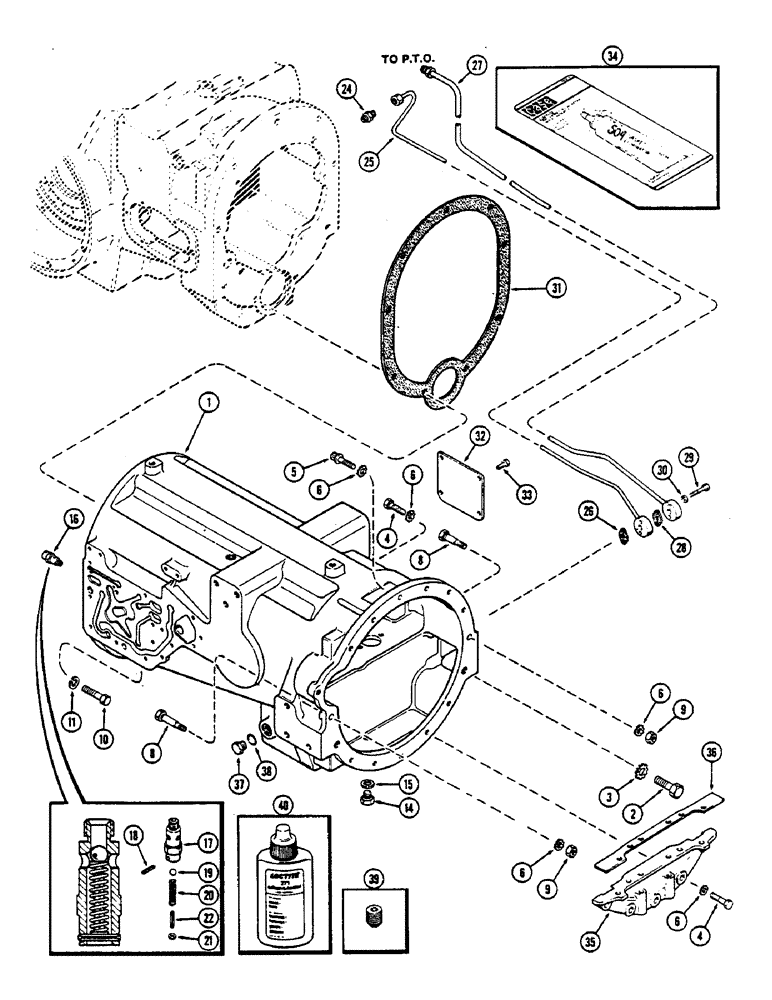

Запчасти Case IH 2390 (6-166) - TORQUE TUBE (06) - POWER TRAIN

1

A148960

TUBE - torque

1шт.

2

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4 x 2-1/2" NC hex (Grade 8)

2шт.

3

A34651

LOCK WASHER

- 3/4" external Shakeproof

2шт.

4

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- 1/2 x 2" NC hex (Grade 8)

3шт.

4

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

- 1/2 x 1-5/8" NC hex (Grade 8)

5шт.

5

166-89

12 PT SCREW,1/2" - 13 x 2", Gr 8

BOLT - 1/2 x 2" NC Ferry head (Top 3 holes)

3шт.

6

A34650

LOCK WASHER

- 1/2" external Shakeproof

13шт.

8

A149765

STEP BOLT

BOLT - dowel, 1/2 x 2-21/32" NC hex

1шт.

8

A149764

STEP BOLT

BOLT - dowel, 1/2 x 3-9/64" NC hex

1шт.

9

25-168

NUT,1/2"-13, G5, Hvy

- 1/2" NC hex

2шт.

10

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

(Park lock boss) Hex, 5/8"-11 x 2 1/2", G5

1шт.

10

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

7шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

14

A140222

PLUG

- drain

1шт.

15

A58608

GASKET

- plug

1шт.

16

A60890

VALVE

ASSEMBLY - relief, lubrication oil, Includes: Ref. 17 - 22

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

18

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

19

211-9

BALL,5/16" Dia

- meter (Chrome steel) (7.78 MM) 5/16" Dia

1шт.

20

A60889

SPRING

- relief valve

1шт.

21

195-6

WASHER,#6

- shim, 5/32 x 5/16 x 1/32" (3.97 x 7.94 x 0.79 MM)

1шт.

22

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

24

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - (C1) lubrication tube

1шт.

25

A145224

TUBE

- (C1) lubrication

1шт.

26

A66143

GASKET

- (C1) tube

1шт.

27

A160484

TUBE

- front PTO lubrication (Replaces A145223)

1шт.

28

A66143

GASKET

- PTO tube

1шт.

29

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

30

92-5

LOCK WASHER,5/16"

2шт.

31

A150901

GASKET

- torque tube to transmission housing

1шт.

32

A146028

PLATE

- valve opening (See Ref 34)

1шт.

33

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

34

B17428

LOCTITE

- gasket eliminator (2 oz-50cc tubes) (Torque, Serial Range: tube-engine)

1шт.

35

A144906

PLATE

- flywheel housing seal (See Figure 2-29 for oil pan bolts)

1шт.

36

A152424

GASKET

- plate (Replaces A76249)

1шт.

37

86512512

PLUG,7/8" - 14 ORB

Assy Hex Hd, 7/8"-14 ORB

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32" (19.05 x 15.75 x 2.29 MM)

1шт.

39

A153098

PLUG

- adapter

1шт.

40

B17423

LOCTITE

- adapter plug (2 oz - 50cc bottle)

1шт.
