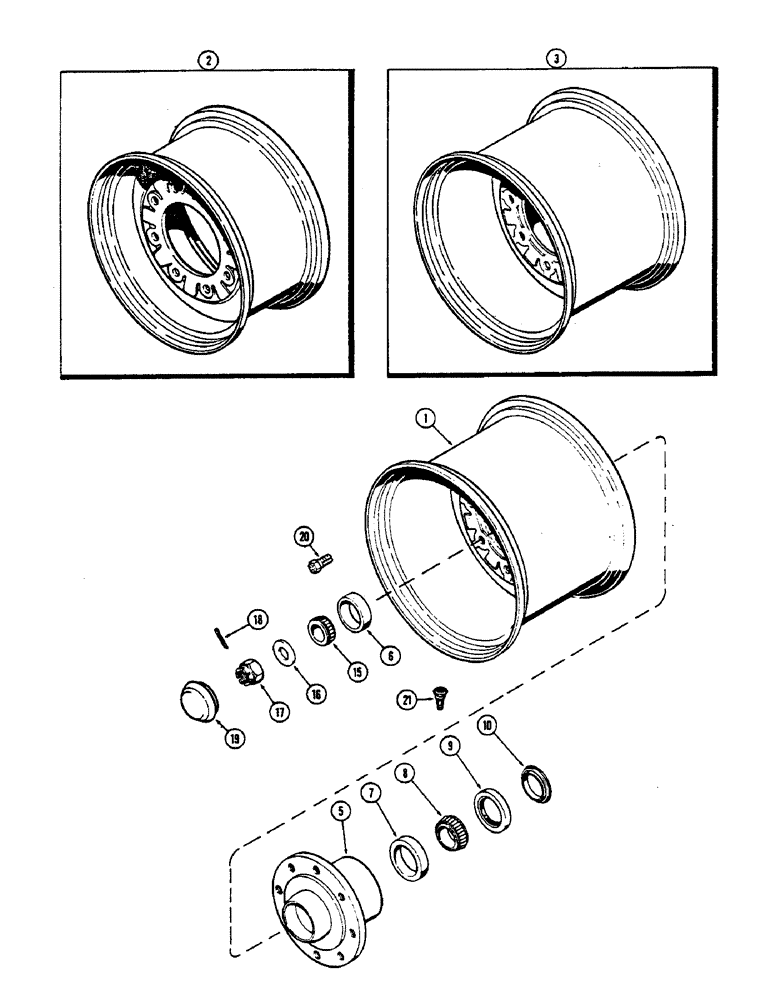

Запчасти Case IH 2390 (5-164) - FRONT WHEELS AND HUB (05) - STEERING

1

A141231

WHEEL

- 1-1/8" offset (28.45 MM) (For 16.5 x 16 tire)

2шт.

1

A162409

WHEEL

- 1-1/2" offset (38.1 MM) (For 16.5 L x 16.1 tire)

2шт.

2

A61570

WHEEL

- 1-1/4" offset (31.75 MM) (For 11.00 x 16 tire)

2шт.

3

A62132

WHEEL

- 1/2" offset (12.7 MM) (For 14L x 16 tire)

2шт.

5

A66759

HUB

ASSEMBLY - front wheel, Includes: Ref. 6 and 7

2шт.

6

G15214

BEARING CUP

CUP - bearing, outer 3-1/16" OD (77.72 MM)

1шт.

7

A61446

BEARING CUP

CUP - bearing, inner 3-35/64" OD (90.17 MM)

1шт.

8

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing, inner 2-5/32" ID (54.86 MM)

1шт.

9

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

- oil, outer

1шт.

10

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

- oil, inner

2шт.

15

G15215

ROLLER BEARING

CONE - bearing, outer 1-25/32" ID (45.21 MM)

2шт.

16

A62919

WASHER

- steering spindle

2шт.

17

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - 1-1/8" NF hex slotted

2шт.

18

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

19

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP - oil retainer

2шт.

20

A62567

WHEEL BOLT

BOLT - 5/8 x 2" NF hex., special

16шт.

21

A38261

VALVE

- tubeless tire

2шт.
