(5-164) - FRONT AXLE DIFFERENTIAL, MFD TRACTORS, ZF AXLE

Запчасти Case IH 2294 (5-164) - FRONT AXLE DIFFERENTIAL, MFD TRACTORS, ZF AXLE (05) - STEERING

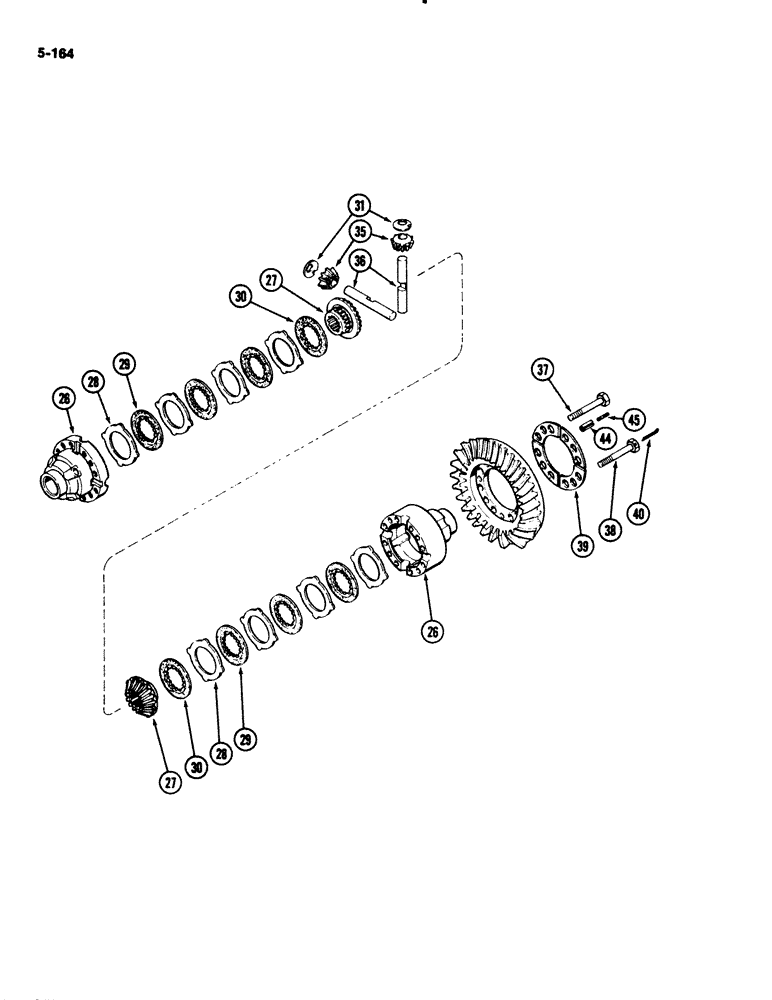

Схема запчастей Case IH 2294 - (5-164) - FRONT AXLE DIFFERENTIAL, MFD TRACTORS, ZF AXLE (05) - STEERING
30
39
35
29
29
27
31
28
26
30
28
45
44
38
40
27
37
26
36
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A169532

AXLE

ASSEMBLY - front (Continued from Figure 5-162), Includes: Ref. 26 - 45 and 1 - 25 on Figure 5-162

1шт.

A52075

SLIP RING

SLIP DISK ASSEMBLY - limited, differential, Includes: Ref. 26 - 45

1шт.

26

A52076

CASE

ASSEMBLY - differential slip

1шт.

27

A52083

GEAR WHEEL

GEAR - side

2шт.

28

A52388

DISC

DISK - slip, outer

8шт.

29

A52078

DISK HARROW

DISK - slip, inner

6шт.

30

A52080

DISC

DISK - thrust, 3.0 mm

1шт.

30

A52081

DISK HARROW

DISK - thrust, 2.9 mm

1шт.

30

A52082

DISK HARROW

DISK - thrust, 2.8 mm

1шт.

31

A52085

WASHER

- thrust, pinion

4шт.

35

A52084

GEAR WHEEL

PINION - differential

4шт.

36

A52086

SHAFT

- pinion

2шт.

37

A52087

BOLT

BOLT - hex, M12 x 90 mm

4шт.

38

A52088

BOLT

BOLT - drilled hex, M12 x 90 mm

8шт.

39

A52089

PLATE ASSY.

PLATE - lock

4шт.

40

632-82

COTTER PIN,M2 x 25

PIN - cotter, mm M2 x 25

4шт.

44

A52090

AXLE PIN

PIN - roll, M12 x 28 mm

4шт.

45

A52092

AXLE PIN

PIN - roll, M7 x 30 mm

4шт.
