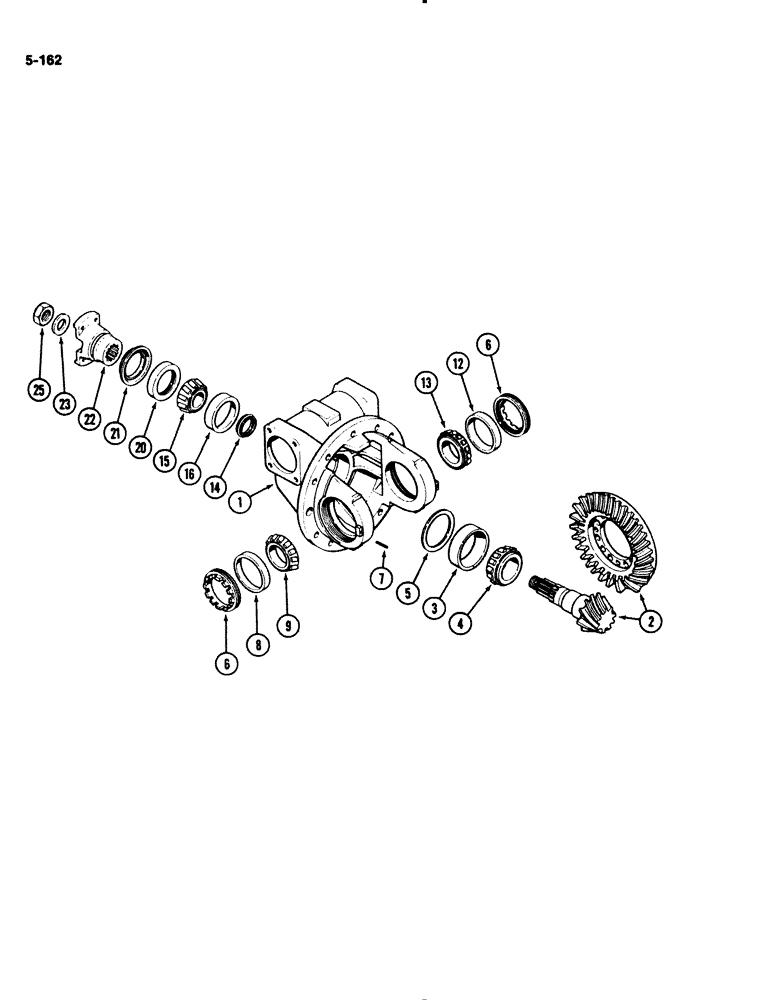

Запчасти Case IH 2294 (5-162) - FRONT AXLE DIFFERENTIAL, MFD TRACTORS, ZF AXLE (05) - STEERING

A169532

AXLE

ASSEMBLY - front (Continued from Figure 5-162), Includes: Ref. 1 - 25 and 26 - 45 on Figure 5-164

1шт.

1

A52052

CARRIER

- differential

1шт.

2

A52074

GEAR WHEEL

GEAR SET - differential pinion

1шт.

3

F60823

CUP ASSY.

CUP - bearing (Replaces A52057)

1шт.

4

S95305

CONE

- bearing (Replaces A52056)

1шт.

5

A52062

SHIM,0.1mm Thk

Bearing 0.1mm Thk

1шт.

5

A52061

SHIM,0.2mm Thk

Bearing 0.2mm Thk

1шт.

5

A52060

SHIM,0.3mm Thk

Bearing 0.3mm Thk

1шт.

5

A52059

SHIM,0.5mm Thk

Bearing 0.5mm Thk

1шт.

6

A52067

BEARING LOCK NUT

- adjusting

2шт.

7

A52091

AXLE PIN

PIN - locking

2шт.

8

A50179

BEARING CUP

CUP - bearing (Replaces A52066)

1шт.

9

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

CONE - bearing, 2-1/4 inch ID (Replaces A52065)

1шт.

12

A52064

CUP ASSY.

CUP - bearing

1шт.

13

A30500

ROLLER BEARING,2.25" ID x 0.9688"

CONE - bearing (Replaces a52063)

1шт.

14

A52055

SLEEVE CYLINDER

SLEEVE - pinion shaft

1шт.

15

530744R91

BEARING CONE

CONE - bearing (Replaces A52053) (Replaces A52387)

1шт.

CONE WHICH IS CORRECT SUB FROM A52053 DJO 5/7/97

1шт.

16

A52054

SLEEVE CYLINDER

CUP - bearing

1шт.

20

A52068

SEAL

- oil, pinion

1шт.

21

A52073

SEAL

PLATE - cover, seal

1шт.

22

A52072

FLANGE

- drive

1шт.

23

A52069

WASHER

- pinion put

1шт.

25

A52070

NUT

- hex, M26

1шт.
