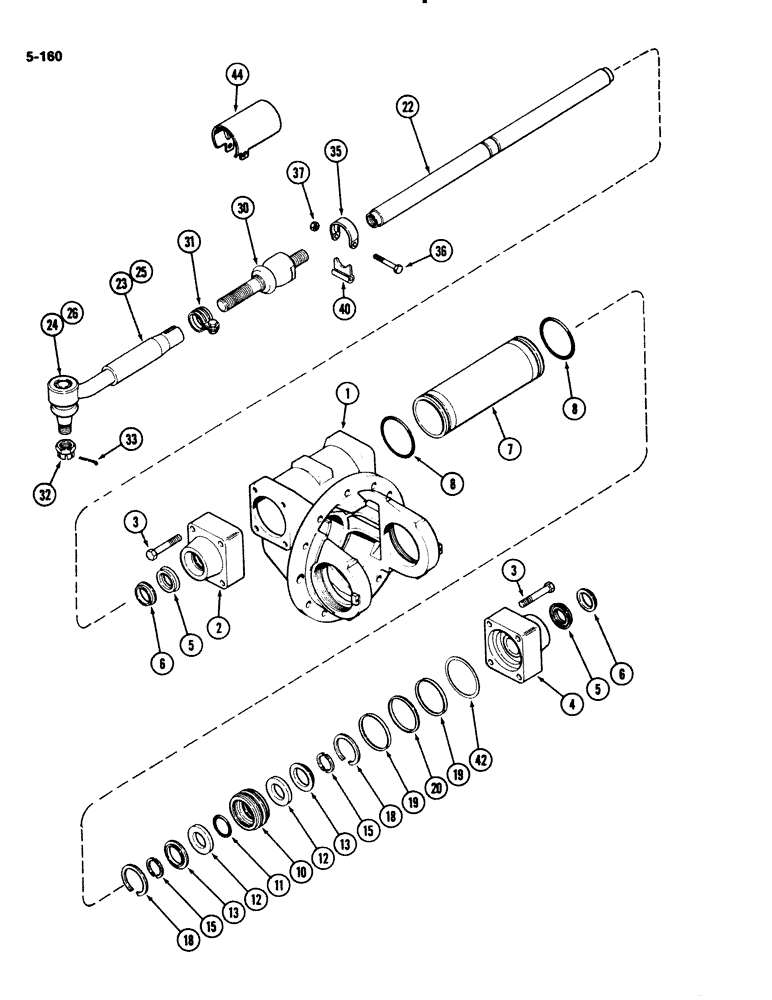

Запчасти Case IH 2294 (5-160) - FRONT AXLE TIE RODS AND STEERING CYLINDER, MFD TRACTORS, ZF AXLE (05) - STEERING

A169532

AXLE

ASSEMBLY - front (Continued from Figure 5-158), Includes: Ref. 1 - 42

1шт.

1

A52052

CARRIER

- differential (See Figure 5-162)

1шт.

2

A52153

GUIDE

- rod, cylinder right

1шт.

3

A52154

BOLT

BOLT - guide, M14 x 75 mm

8шт.

4

A52184

GUIDE

- rod, cylinder left

1шт.

5

A52156

RING

- grooved, cylinder

2шт.

6

A52155

RING

- scraper, cylinder

2шт.

7

A52151

CYLINDER BLOCK

CYLINDER - piston

1шт.

8

A52152

O-RING,86 mm ID x 3 mm

- cylinder, M86 ID

2шт.

10

A52158

PISTON ASSY.

PISTON - cylinder

1шт.

11

A52159

O-RING,39.2 mm ID x 5.7 mm

- piston

1шт.

12

A52160

RING

DISK - cylinder

2шт.

13

A52161

CLIP

- ring

2шт.

15

A52162

RING

- split (2 halves)

2шт.

18

A52163

SNAP RING

RING - retaining

2шт.

19

A52165

RING

- scraper

2шт.

20

A52164

RING

- sealing

2шт.

22

A52157

ROD

- cylinder

2шт.

23

A52106

ROD

ASSEMBLY - tie, right (Includes, Ref 30, 31, 32 and 33), Includes: Ref. 24

1шт.

24

A52185

JOINT TURNING

JOINT ASSEMBLY - ball

1шт.

25

A52105

ROD

ASSEMBLY - tie, left (Right shown), Includes: Ref. 26 - 33

1шт.

26

A52058

JOINT TURNING

JOINT ASSEMBLY - ball

1шт.

30

A52166

JOINT TURNING

JOINT ASSEMBLY - axial tie rod

1шт.

31

A52114

CLAMP

ASSEMBLY - tie rod

1шт.

32

A52079

NUT

- castle, M27

1шт.

33

632-206

COTTER PIN,M5 x 45

PIN - cotter, mm M5 x 45

1шт.

35

A52189

PLATE ASSY.

PLATE - stop

2шт.

36

CASA52187

BOLT (SPREADER)

BOLT - plate, hex, M8 x 60 mm,Large head

2шт.

37

A52188

NUT

- hex, M8

2шт.

40

A52186

PLATE ASSY.

PLATE - spacing

2шт.

42

A52167

SHIM,1.0mm Thk

Cylinder 1.0mm Thk

1шт.

42

A52168

SHIM,1.1mm Thk

Cylinder 1.1mm Thk

1шт.

42

A52169

SHIM,1.2mm Thk

Cylinder 1.2mm Thk

1шт.

42

A52170

SHIM,1.3mm Thk

Cylinder 1.3mm Thk

1шт.

42

A52171

SHIM,1.4mm Thk

Cylinder 1.4mm Thk

1шт.

42

A52172

SHIM,1.5mm Thk

Cylinder 1.5mm Thk

1шт.

42

A52173

SHIM,1.6mm Thk

Cylinder 1.6mm Thk

1шт.

42

A52174

SHIM,1.7mm Thk

Cylinder 1.7mm Thk

1шт.

42

A52175

SHIM,1.8mm Thk

Cylinder 1.8mm Thk

1шт.

42

A52176

SHIM,1.05mm Thk

Cylinder 1.05mm Thk

1шт.

42

A52177

SHIM,1.15mm Thk

Cylinder 1.15mm Thk

1шт.

42

A52178

SHIM,1.25mm Thk

Cylinder 1.25mm Thk

1шт.

42

A52179

SHIM,1.35mm Thk

Cylinder 1.35mm Thk

1шт.

42

A52180

SHIM,1.45mm Thk

Cylinder 1.45mm Thk

1шт.

42

A52181

SHIM,1.55mm Thk

Cylinder 1.55mm Thk

1шт.

42

A52182

SHIM,1.65mm Thk

Cylinder 1.65mm Thk

1шт.

42

A52183

SHIM,1.75mm Thk

Cylinder 1.75mm Thk

1шт.

44

A180279

STOP

- steering, 22 to 30 degrees

1шт.
