Запчасти Case IH 2294 (5-154) - FRONT AXLE WHEEL HUB, MFD TRACTORS, CARRARO AXLE (05) - STEERING

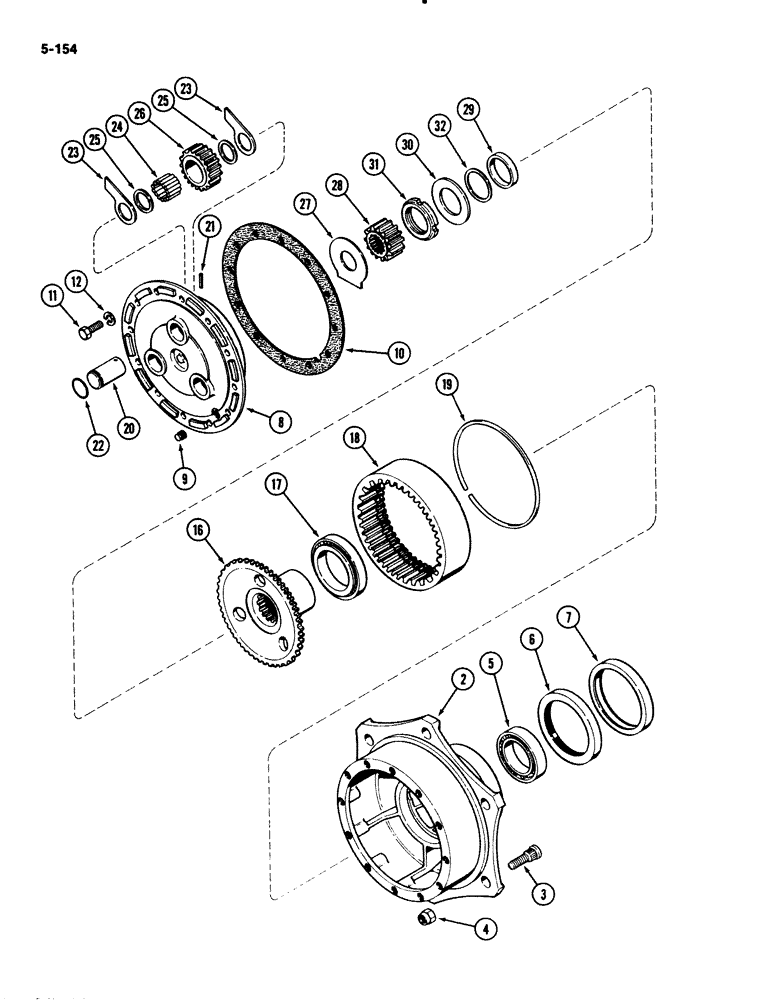

Схема запчастей Case IH 2294 - (5-154) - FRONT AXLE WHEEL HUB, MFD TRACTORS, CARRARO AXLE (05) - STEERING
28
17
25
23
23
21
10
24
4
26
7
20
16
5
9
22
29
31
8
27
30
19
6
25
18
2
3
11
32
12

Артикул

Название

Примечание

Количество

A168841

SHAFT

AXLE ASSEMBLY - front (Continued from Figure 5-152), Includes: Ref. 1 - 32, Start Serial: 16239354

1шт.

A156672

SHAFT

AXLE ASSEMBLY - front, Includes: Ref. 1 - 32, Serial Range: -16239354

1шт.

1

A48102

HUB

ASSEMBLY - wheel (Carraro No. 65455), Includes: Ref. 3

2шт.

3

A182252

STUD

- wheel to hub (Carraro No. 115420)

6шт.

4

A163212

NUT

- hub stud (Carraro No. 107718)

12шт.

5

A48104

TAPERED BEARING,85mm ID x 130mm OD x 29mm

BEARING - wheel hub, inner (Carraro No. 27262)

2шт.

6

N8898

OIL SEAL

- oil, wheel hub (Carraro No. 11878) (Single and two seal combination)

2шт.

7

K261816

WEAR RING

SLEEVE - wear, hub (Carraro No. 116346) (Two seal combination)

2шт.

8

A48117

COVER

- planetary end (Carraro No. 112377)

2шт.

9

K965263

PLUG

- end cover (Carraro No. 92269)

2шт.

10

A48118

GASKET

- end cover (Carraro No 107757)

2шт.

11

K965247

BOLT,M14 x 35mm

BOLT - cover retaining, hex, M14 x 35 mm full thread (Carraro No. 20967)

24шт.

12

K965248

WASHER

- lock, M14 (Carraro No. 22863)

24шт.

16

A48106

HUB

- gear (Carraro No. 107261)

2шт.

17

A48105

TAPERED BEARING,100mm ID x 150mm OD x 32mm W

BEARING - wheel hub, outer (Carraro No. 27265)

2шт.

18

A48112

GEAR

- planetary ring (Carraro No. 107628)

2шт.

19

A48115

RING

- retaining, ring gear (Carraro No. 107734)

2шт.

20

A48113

PIN

- planetary gear (Carraro No. 112376)

6шт.

21

A48158

PIN

- roll, M5 x 60 mm (Carraro No. 24375)

6шт.

22

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- planetary pin (Carraro No. 28524)

6шт.

23

A48114

WASHER

- planetary pin (Carraro No. 107733)

12шт.

24

K260211

ROLLER BEARING

BEARING - roller, planetary gear (Carraro No. 100035)

210шт.

25

A48159

WASHER

- roller bearing (Carraro No. 107732)

12шт.

26

A48116

GEAR

- planetary (Carraro No. 107643)

6шт.

27

A48111

WASHER

- planetary drive gear (Carraro No. 111540)

2шт.

28

A48110

GEAR

- planetary drive (Carraro No. 107642)

2шт.

29

A48107

RING

- gear hub (Carraro No. 107725)

2шт.

30

A48108

WASHER

- thrust (Carraro No. 107729)

2шт.

31

A48109

NUT

- lock, gear hub, M70 (Carraro No. 23326)

2шт.

32

A48160

SPACER

SHIM - gear hub, 0.10 mm (Carraro No. 107726)

1шт.

32

A48161

SPACER

SHIM - gear hub, 0.30 mm (Carraro No. 107727)

1шт.

32

NLS

NO LONGER SERVICED

SHIM - gear hub, 0.50 mm (Carraro No. 107728)

1шт.

Выбрано товаров: 32
