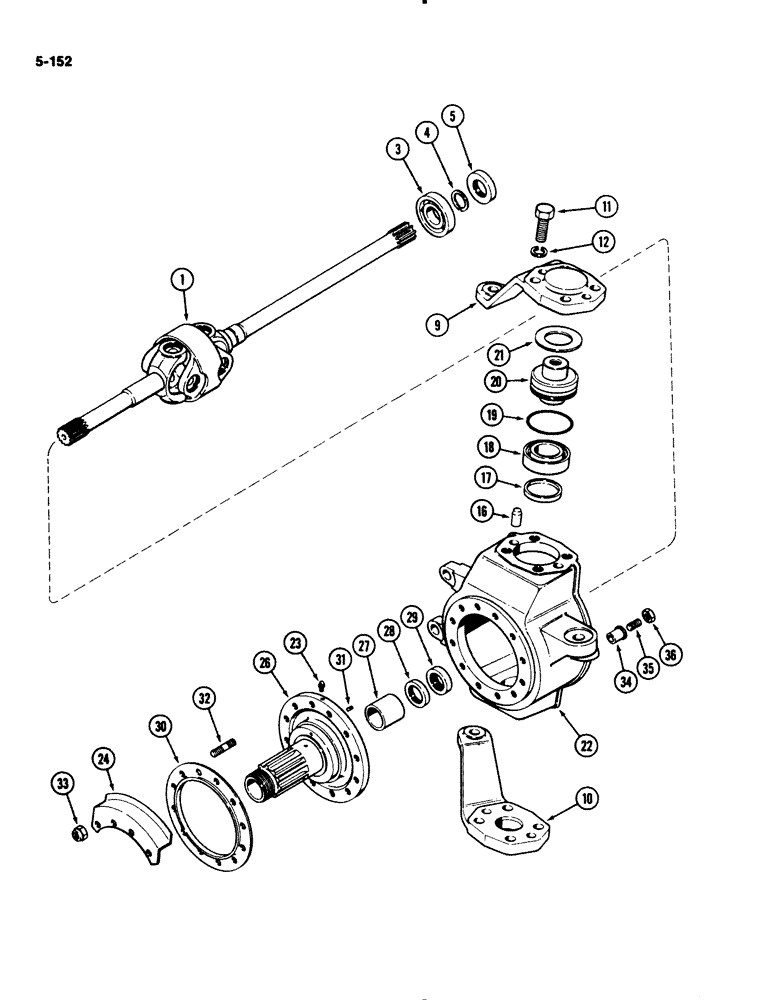

Запчасти Case IH 2294 (5-152) - FRONT AXLE, UNIVERSAL JOINT AND STUB AXLE, MFD TRACTORS, CARRARO AXLE (05) - STEERING

A168841

SHAFT

AXLE ASSEMBLY - front (Continued from Figure 5-150), Includes: Ref. 1 - 36, Start Serial: 16239354

1шт.

A156672

SHAFT

AXLE ASSEMBLY - front (Order A168841), Includes: Ref. 1 - 36, Serial Range: -16239354

1шт.

1

REF

INSTRUCTION

UNIVERSAL JOINT - MFD front axle (See Figure 5-156)

2шт.

3

S400372

BEARING ASSY

BEARING - ball, axle housing (Carraro No. 26032)

2шт.

4

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING - retaining, bearing to housing (Carraro No. 24800)

2шт.

5

A48040

OIL SEAL

- oil, axle housing (Carraro No. 2520)

2шт.

9

A48052

ARM

- steering, upper (Carraro No. 107742)

2шт.

10

REF

INSTRUCTION

ARM - steering, lower right (See Figure 5-144)

1шт.

10

REF

INSTRUCTION

ARM - steering, lower left (See Figure 5-144)

1шт.

11

A48165

BOLT

- steering arms, hex, M20 x 55 mm full thread (Carraro No. 21225)

16шт.

12

892-1020

WASHER,M20

- lock, (Carraro No. 22867) (Order 892-1120) M20

16шт.

16

K260249

DOWEL

- steering arms (Carraro No. 88408)

8шт.

17

K956994

PLUG

CUP - axle pivot pin grease (Carraro No. 108541)

4шт.

18

A48046

TAPERED BEARING,110mm OD x 42.25mm

BEARING - axle pivot (Carraro No. 27376)

4шт.

19

S5747

O-RING,0.103" Thk x 3.737" ID, -154, Cl 5, 75 Duro

- bearing pivot pin (Carraro No. 28510)

4шт.

20

A48045

PIN

- axle bearing pivot (Carraro No. 107721)

4шт.

21

NLS

NO LONGER SERVICED

- bearing, 1.00 mm (Carraro No. 107722)

1шт.

21

A48048

SHIM

- bearing, 3.00 mm (Carraro No. 107723)

1шт.

21

A48049

SHIM

- bearing, 5.00 mm (Carraro No. 107724)

1шт.

22

A48050

CAP

- axle housing end, right (Carraro No. 107250)

1шт.

22

A48051

CAP

- axle housing end, left (Carraro No. 107251)

1шт.

23

A48146

BREATHER

- stub axle (Carraro No. 108045)

2шт.

24

A48100

GUARD

SHIELD - breather protective (Carraro No. 107716)

2шт.

26

A179899

AXLE

- stub (Carraro No. 118432) (Replaces A48097), Includes: Ref. 27

2шт.

27

A48157

BUSHING

- stub axle (Carraro No. 109979) (Order A156575)

1шт.

28

A179897

OIL SEAL,48mm ID x 74mm OD x 13mm Thk

SEAL - oil, stub axle (Carraro No. 118433) (74 mm) OD (Single seal combination)

2шт.

28

A48094

OIL SEAL

- oil, stub axle (Carraro No. 25355) (72 mm) OD (Two seal combination)

2шт.

29

A48095

SEAL

- dust, stub axle (Carraro No. 107754) (72 mm) OD (Two seal combination)

2шт.

30

A48099

RING

- deflector (Carraro No. 109421)

2шт.

31

A48101

PLUG

- stub axle drain (Carraro No. 97952)

2шт.

32

A48098

STUD

- stub axle to cap (Carraro No. 80576)

24шт.

33

A48147

NUT

- hex lock, M16 (Carraro No. 22418)

24шт.

34

K260154

STOP

- axle (Carraro No. 101040)

4шт.

35

K956931

BOLT

- axle stop (Carraro No. 21520)

4шт.

36

K956932

JAM NUT

- axle stop (Carraro No. 22132)

4шт.
