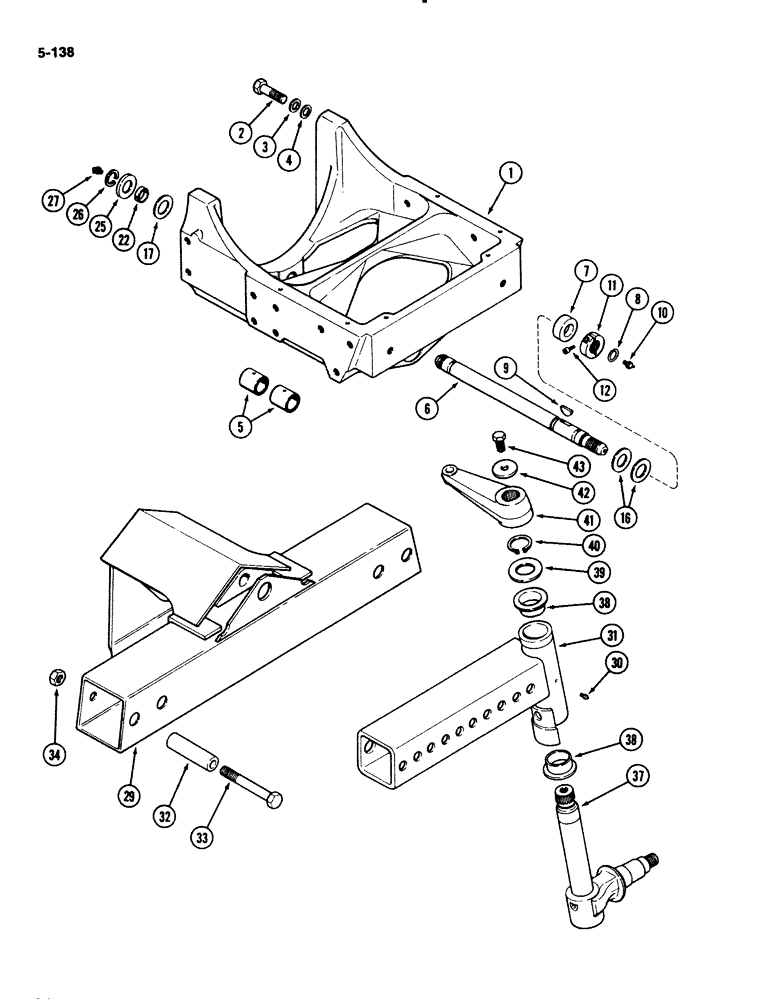

Запчасти Case IH 2294 (5-138) - ADJUSTABLE FRONT AXLE, STANDARD AND LONG AXLE WITH 110 INCH (2794MM) WHEEL BASE (05) - STEERING

1

A163364

SUPPORT ASSY.

SUPPORT - front axle

1шт.

2

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch (Grade 8)

4шт.

3

195-545

WASHER,3/4", SAE

- flat, 13/16 x 1-15/32 x 1/8 inch (21 x 37 x 3 mm)

4шт.

4

A26462

WASHER

- hardened

4шт.

5

A164817

BUSHING,38.13mm ID x 40.22mm OD x 50.8mm L

- pivot pin, solid type

2шт.

6

A161405

PIN,34.92mm OD x 581.66mm L

- axle pivot

1шт.

7

A161406

COLLAR

- front

1шт.

8

A160576

RING

- retaining

1шт.

9

126-43

WOODRUFF KEY,#128, 5/16" x 2 1/8"

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 inch PR (front)

1шт.

11

A161075

COLLAR

ASSEMBLY - pivot shaft lock, Includes: Ref. 12

1шт.

12

62-514

BOLT (SPREADER),5/16" - 24 x 7/8"

BOLT - hex socket head, 5/16 NF x 7/8 inch

1шт.

16

A163363

WASHER

- thrust, 1-33/64 inch (38 mm) ID

1шт.

17

A163362

WASHER,38.23mm ID x 63.5mm OD x 3.05mm Thk

- thrust, 1-3/8 inch (35 mm) ID

1шт.

22

A163360

COLLAR CLAMP

COLLAR - two halves

2шт.

25

195-2170

WASHER,1 17/32" x 2 1/2" x .180"

- cup, rear

1шт.

26

R10197

RING

- retaining, rear

1шт.

27

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Rear) 90º, 1/8" NPT x .84" lg

1шт.

29

A163353

CENTER AXLE

AXLE - center section

1шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, 1/8 inch PT

4шт.

31

A143540

SHAFT

AXLE - left end section

1шт.

31

A143537

SHAFT

AXLE - right end section (Left shown)

1шт.

32

A139628

BUSHING

SPACER - axle adjusting bolt

4шт.

33

113-814

BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5

- hex, 7/8 NC x 7-1/2 inch (Grade 8)

4шт.

34

129-109

NUT,7/8"-9, G5

4шт.

37

A161274

SPINDLE

- front wheel

2шт.

38

A143358

BUSHING,57.05mm ID x 62.08mm OD x 25.7mm L

- spindle

4шт.

39

A35347

SHIM,.1345" Thk

Washer - Spindle retainer .1345" Thk

2шт.

40

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

41

A147122

ARM

- steering, left spindle

1шт.

41

A147121

ARM

- steering, right spindle (Left shown)

1шт.

42

A161870

WASHER

- steering arm

2шт.

43

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.
