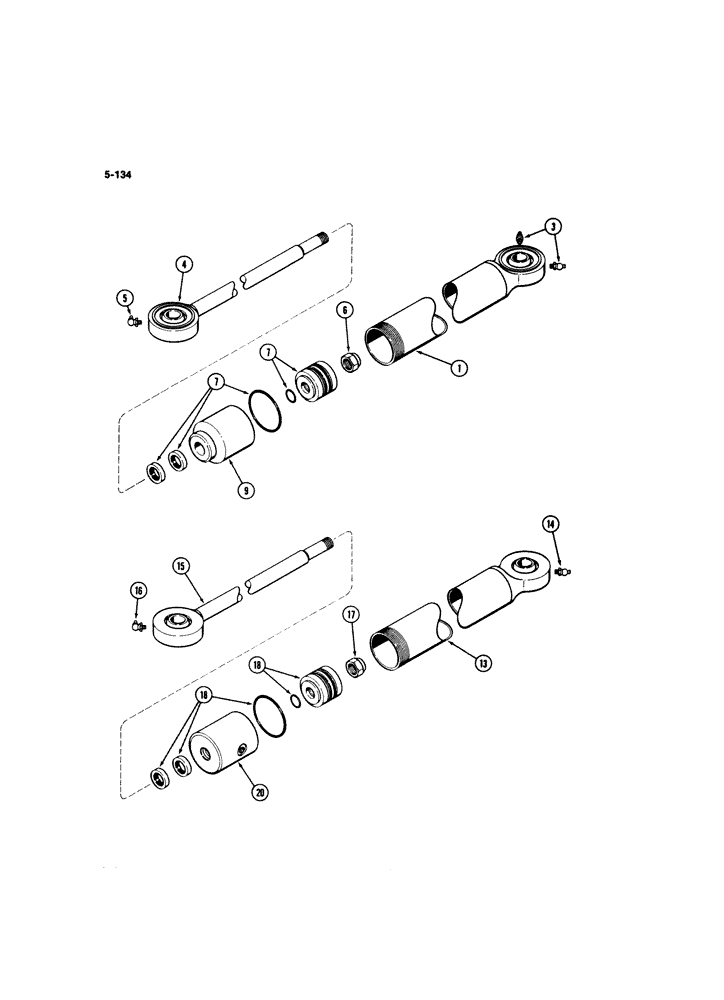

Запчасти Case IH 2294 (5-134) - STEERING CYLINDER, MFD TRACTORS, CARRARO AXLE (05) - STEERING

A48119

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering (Carraro No. 107745) (Giuliani), Includes: Ref. 1 - 9

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder (Order A48119)

1шт.

3

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

FITTING - grease, straight (Carraro No. 24210)

2шт.

4

A182305

PISTON ROD

ROD - cylinder piston (Carraro No. 43491)

1шт.

5

K261656

FITTING

- grease, 90 degree (Carraro No. 24212)

1шт.

6

K261655

NUT

- piston rod Carraro No. 22428)

1шт.

7

K261653

SEAL

REPAIR KIT - piston and seal (Carraro No. 43484)

1шт.

A182306

KIT

REPAIR KIT - seal (Carraro No. 43483)

1шт.

9

NSS

NOT SOLD SEPARAT

CAP - cylinder (Order A48119)

1шт.

A182304

CYLINDER ASSEMBLY - steering (Carraro No. 107745) (Laverda) (Order A48119), Includes: Ref. 13 - 20

1шт.

13

NSS

NOT SOLD SEPARAT

TUBE - cylinder (Order a182304)

1шт.

14

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

FITTING - grease, straight (Carraro No. 24210)

1шт.

15

A48167

ROD

- piston, cylinder (Carraro No. 43438)

1шт.

16

A48170

FITTING

- grease, 90 degree (Carraro No. 24259)

1шт.

17

K261655

NUT

- rod, piston (Carraro No. 22428)

1шт.

18

A48169

SET OF PARTS

REPAIR KIT - piston and seal (Carraro No. 43439)

1шт.

A48168

SET OF PARTS

REPAIR KIT - seal (Carraro No. 43440)

1шт.

20

NSS

NOT SOLD SEPARAT

CAP - cylinder (Order A182304)

1шт.
