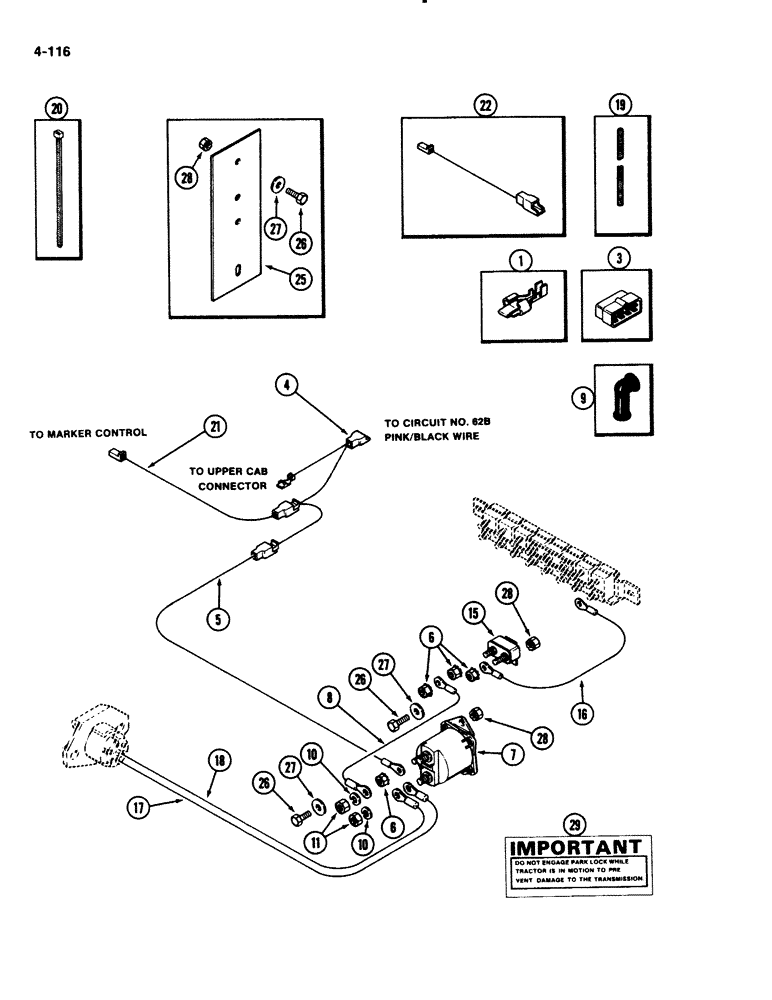

Запчасти Case IH 2294 (4-116) - ELECTRIC POWER ATTACHMENT, IMPLEMENT MONITOR (04) - ELECTRICAL SYSTEMS

A181779

POWER ATTACHMENT - electric (Machinery Item), Includes: Ref. 1 - 29

1шт.

1

223-104

TERMINAL CONNECTOR

TERMINAL - female blade

2шт.

3

223-155

ELEC CONNECTOR,Female, 1 Pin

CONNECTOR - body, monitor harness

2шт.

4

A181760

CABLE

WIRE - cab connector

1шт.

5

A181762

ELECTRICAL WIRE

WIRE - solenoid

1шт.

6

193-1000

NUT,Keps, w/LW,#10-32

- hex Keps, No. 10 NF

4шт.

7

107655C1

SOLENOID SWITCH

SOLENOID - power

1шт.

8

A181754

ELECTRICAL WIRE

WIRE - solenoid to circuit breaker

1шт.

9

399470R1

BOOT

- wire terminal

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

403069R1

CIRCUIT-BREAKER,30A

CIRCUIT BREAKER - 30 ampere

1шт.

16

A181764

ELECTRICAL WIRE

WIRE - circuit breaker

1шт.

17

A181763

ELECTRICAL WIRE

WIRE - solenoid to auxiliary outlet, red

1шт.

18

A181756

ELECTRICAL WIRE

WIRE - solenoid to auxiliary outlet, blue

1шт.

19

A181759

CONDUIT

- auxiliary outlet wire

1шт.

20

L76747

STRAP

- nylon retaining (Order L18337)

20шт.

21

A181761

CABLE

WIRE - marker control

1шт.

22

A181757

ELECTRICAL WIRE

WIRE - console module

1шт.

25

A181751

SPACER

PLATE - relay mounting (Not used this application)

1шт.

26

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

27

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

4шт.

28

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex Keps, 1/4 inch NC

4шт.

29

321-5264

DECAL

- park lock

1шт.
