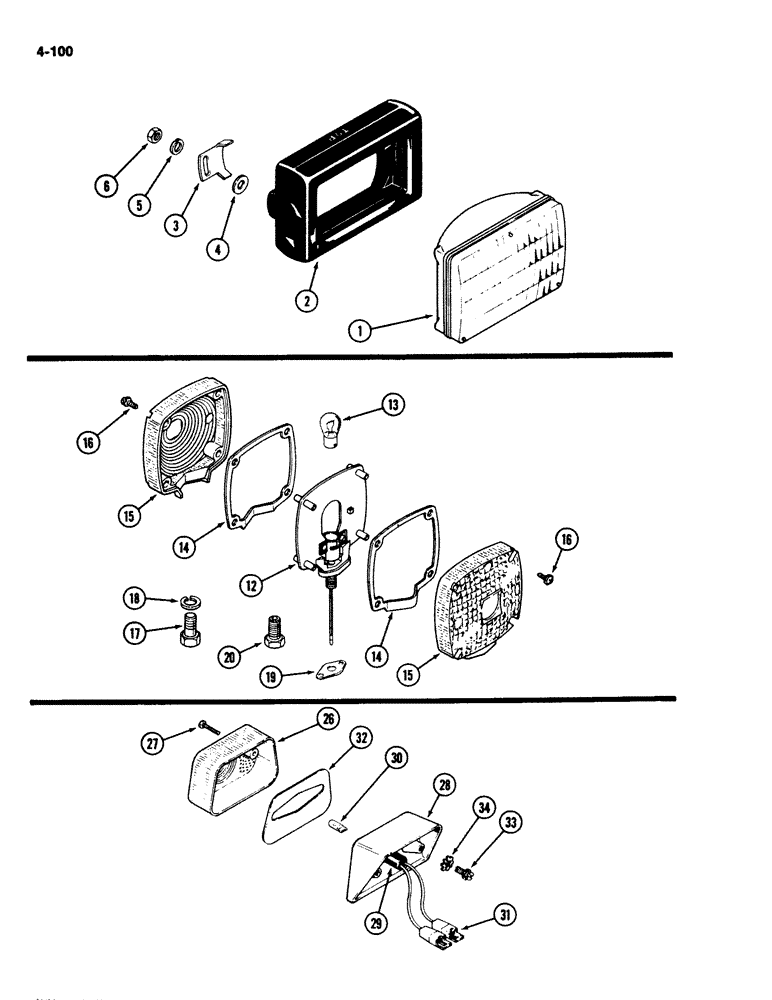

Запчасти Case IH 2294 (4-100) - HEAD LIGHTS (04) - ELECTRICAL SYSTEMS

1

A139458

LAMP

LIGHT - head, sealed unit (No. 4652)

2шт.

2

A146354

MOUNTING PARTS

MOUNT - rubber

2шт.

3

A146355

CLAMP

CLIP - mounting

4шт.

4

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 1/16 inch (7 x 16 x 2 mm)

4шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

A44201

LIGHT ASSY.

KIT - replacement, flasher light, Includes: Ref. 12 - 18

2шт.

12

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

13

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

14

A43731

GASKET

- lens

2шт.

A44202

KIT

LENS KIT - replacement, flasher light, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

LENS - lamp

2шт.

16

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - round head Phillips, No. 8-32 x 3/4 inch

8шт.

17

113-38

BOLT,Hex, 1/4" - 20 x 5/8", Gr 2

- hex, 1/4 NC x 5/8 inch

2шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

19

F63435

GASKET

- lamp base, flasher light

1шт.

20

NSS

NOT SOLD SEPARAT

STUD - (Not used this application), flasher light

1шт.

A143925

LAMP

LIGHT ASSEMBLY - tail, Includes: Ref. 26 - 32

2шт.

26

A47056

LENS

- red

1шт.

27

187-829

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1"

SCREW - pan head slotted, No. 8-18 x 1 inch

2шт.

28

A47052

BASE

- lamp

1шт.

29

A47054

SOCKET/RECEPTACLE

SOCKET ASSEMBLY - lamp (Includes terminal)

1шт.

30

D71346

TAIL LAMP,12V

BULB - lamp (No. 168)

1шт.

31

223-166

CONNECTOR, ELEC

CONNECTOR - body female

2шт.

32

A47055

GASKET

- tail light

1шт.

33

187-1073

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

SCREW - hex self-tapping, 1/4 x 5/8 inch, tail light

4шт.

34

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal/external lock, 1/4 inch, tail light

4шт.
