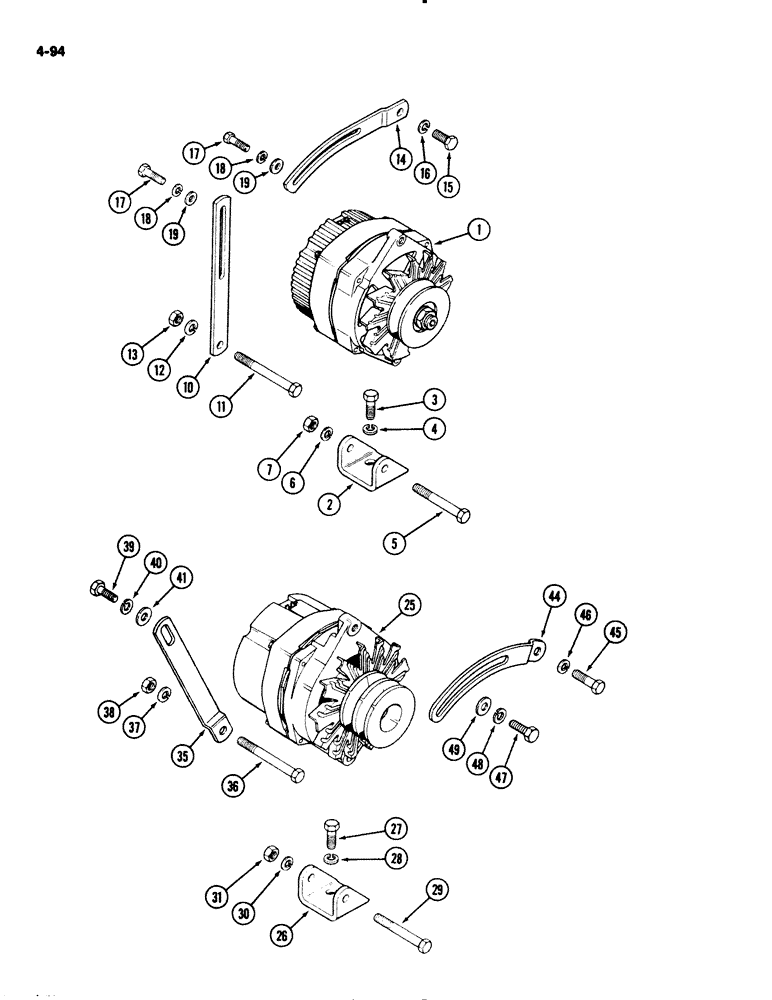

Запчасти Case IH 2294 (4-094) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
ALTERNATOR ASSEMBLY - engine, 72 Ampere (See Figure 4-096)
1шт.
2
A160391
BRACKET
- alternator mounting
1шт.
3
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
4
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
5
113-241
BOLT,Hex, 3/8" - 16 x 3", Gr 5
1шт.
6
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
7
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
1шт.
10
A59098
STRAP
- rear support
1шт.
11
113-203
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
1шт.
12
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
13
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
1шт.
14
A145326
STRAP
- adjusting
1шт.
15
113-221
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
1шт.
16
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
17
814-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
- hex, M8 x 1.25 x 25 mm
2шт.
18
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
19
195-103
WASHER,5/16"
- flat, 11/32 x 11/16 x 1/16 inch (9 x 18 x 2 mm)
2шт.
25
REF
INSTRUCTION
ALTERNATOR ASSEMBLY - engine, 105 Ampere (See Figure 4-098)
1шт.
26
A160391
BRACKET
- alternator mounting
1шт.
27
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
28
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
29
113-241
BOLT,Hex, 3/8" - 16 x 3", Gr 5
1шт.
30
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
31
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
1шт.
35
A163125
STRAP
- rear support
1шт.
36
113-203
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
1шт.
37
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
38
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
1шт.
39
814-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd
1шт.
40
892-1110
LOCK WASHER,M10
WASHER - lock, 10 mm
1шт.
41
195-104
WASHER,3/8"
- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)
1шт.
44
A163126
STRAP
- alternator adjusting
1шт.
45
113-221
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
1шт.
46
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
47
814-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd
1шт.
48
892-1110
LOCK WASHER,M10
WASHER - lock, 10 mm
1шт.
49
195-104
WASHER,3/8"
- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)
1шт.
Выбрано товаров: 37
