Запчасти Case IH 2294 (4-088) - STARTER MOUNTING (04) - ELECTRICAL SYSTEMS

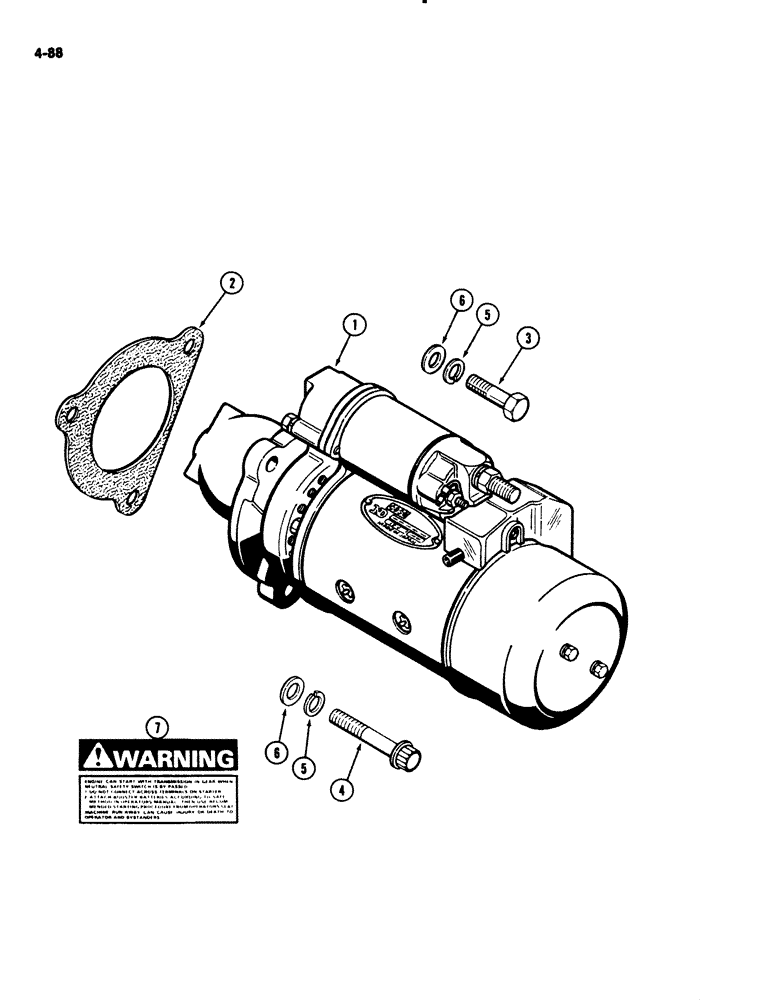

Схема запчастей Case IH 2294 - (4-088) - STARTER MOUNTING (04) - ELECTRICAL SYSTEMS
2
4
6
1
7
5
5
6
3

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-090)

1шт.

1

87297380

REMAN-STARTER

Remanufactured Starter; For N.A. only

1шт.

1

87297381

CORE-STARTER

Return number - For N.A. only

1шт.

2

A27933

GASKET

GASKET - mounting

1шт.

3

113-2437

PREV TORQUE BOLT,Locking, 1/2"-13 x 1 3/4", G5

BOLT - hex Polylok, 1/2 NC x 1-3/4 inch

2шт.

4

166-1007

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - Ferry head, 1/2 NC x 3-1/4 inch

1шт.

5

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

3шт.

6

L30674

WASHER

WASHER - flat, 17/32 x 1 x 1/8 inch (14 x 25 x 3 mm)

3шт.

7

321-3709

DECAL

DECAL - warning (on starter)

1шт.

Выбрано товаров: 9
