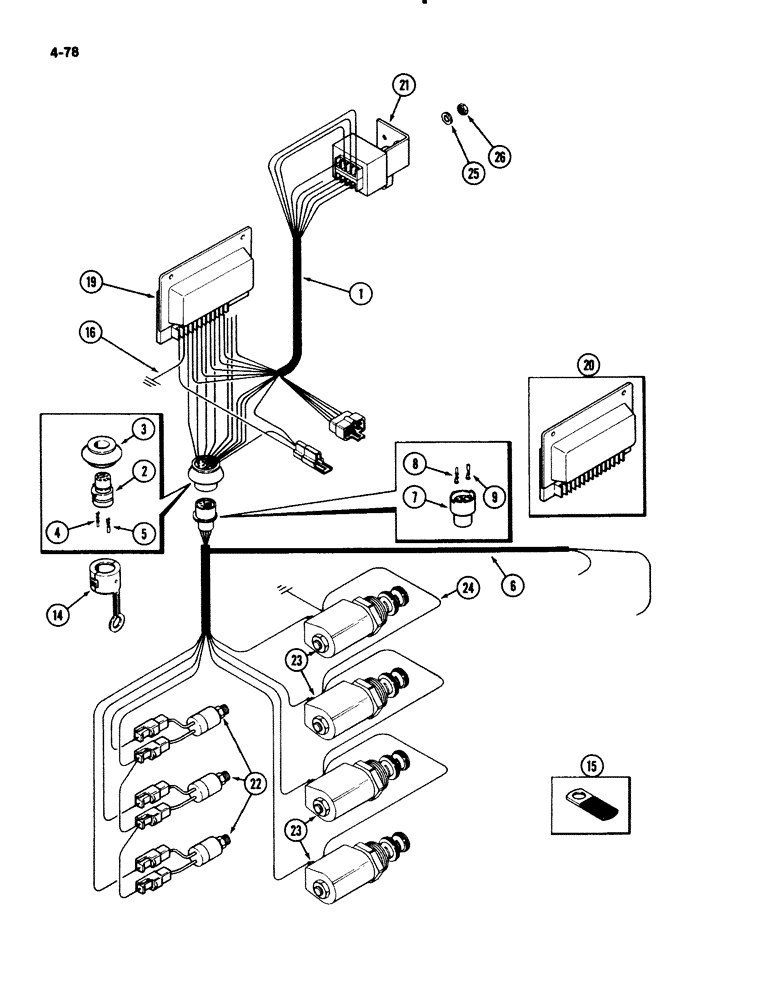

Запчасти Case IH 2294 (4-078) - ELECTRIC SHIFT HARNESS (04) - ELECTRICAL SYSTEMS

1

A177694

HARNESS

- electric shift (Inside of Cab) (Replaces A169765), Includes: Ref. 2 - 5

1шт.

2

A52279

- shift harness

1шт.

3

A52280

GROMMET

- harness socket

1шт.

4

A52281

ELEC. TERMINAL PIN,14 - 18 SAE

TERMINAL - harness connector, male

5шт.

5

A52282

POWER SOCKET,14 - 18 SAE

TERMINAL - harness connector, female

5шт.

6

A163115

HARNESS

- electric shift (Outside of Cab), Includes: Ref. 7 - 9

1шт.

7

A52283

SOCKET

- shift harness

1шт.

8

A52281

ELEC. TERMINAL PIN,14 - 18 SAE

TERMINAL - harness connector, male

5шт.

9

A52282

POWER SOCKET,14 - 18 SAE

TERMINAL - harness connector, female

5шт.

14

A163118

CLAMP

- harness retaining

1шт.

15

A37179

CLIP

- harness retaining

1шт.

16

A163111

ELECTRICAL WIRE

WIRE - relay ground, black, 14 inch (356 mm)

1шт.

19

A164734

BOARD

ASSEMBLY - relay (J I Case Installed, Order A177703)

1шт.

20

A177703

RELAY

BOARD ASSEMBLY - relay (Service only)

1шт.

21

A180201

SWITCH

ASSEMBLY - range (Replaces A164974)

1шт.

22

A156555

SWITCH

- transmission oil pressure

3шт.

23

A160899

VALVE

ASSEMBLY - solenoid (See Figure 6-186)

4шт.

24

A156760

HARNESS

- solenoid ground

1шт.

25

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

26

A39888

NUT

- range switch retaining, 3/8-32

1шт.
