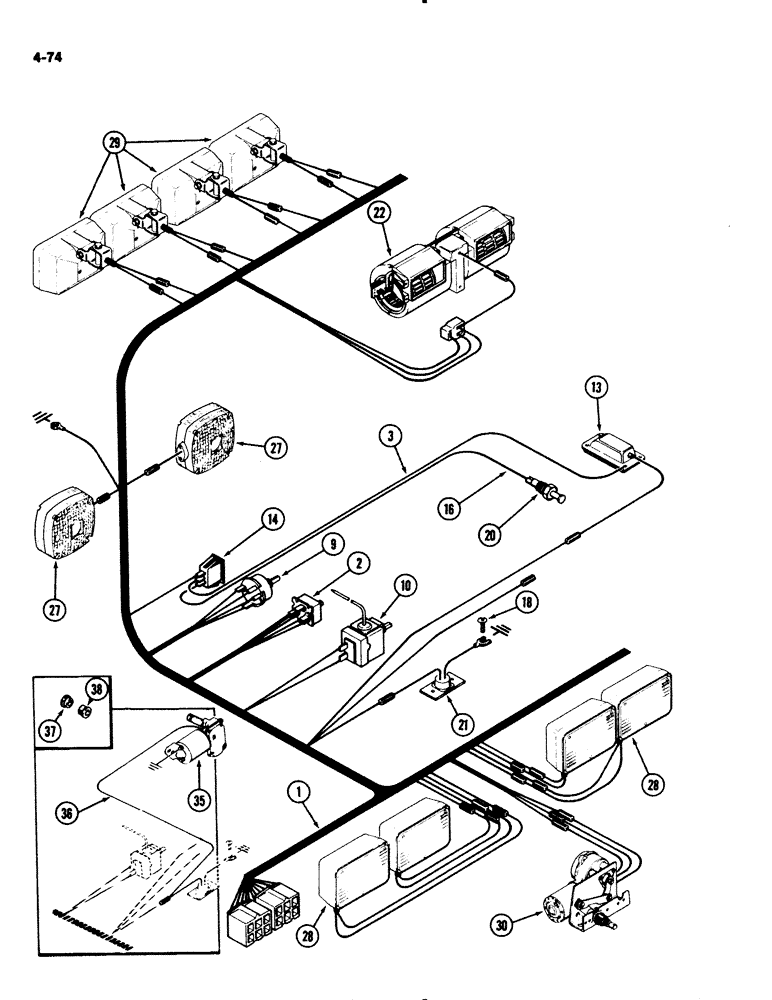

Запчасти Case IH 2294 (4-074) - CAB HEADLINER WIRING (04) - ELECTRICAL SYSTEMS

1

F66064

HARNESS

ASSEMBLY - headliner wiring

1шт.

2

REF

INSTRUCTION

SWITCH - blower (See Figure 9-516)

1шт.

3

F64731

CABLE PULLING GRIP

WIRE - dome light to switch, brown

1шт.

9

REF

INSTRUCTION

SWITCH - wiper (See Figure 9-516)

1шт.

10

REF

INSTRUCTION

SWITCH - air conditioning (See Figure 9-516)

1шт.

13

REF

INSTRUCTION

LAMP - dome (See Figure 9-514)

1шт.

14

REF

INSTRUCTION

SWITCH - dome lamp (See Figure 9-516)

1шт.

16

F64127

ELECTRICAL WIRE

WIRE - switch to door switch, white, 70 inch (1778 mm)

1шт.

18

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - Phillips pan head self-tapping, No. 10-16 x 1/2 inch

1шт.

20

F63895

SWITCH

- lamp, door opening

1шт.

21

REF

INSTRUCTION

LAMP - console (See Figure 9-514)

1шт.

22

REF

INSTRUCTION

BLOWER ASSEMBLY - (See Figure 9-520)

1шт.

27

REF

INSTRUCTION

LIGHT - flasher (See Figure 4-100)

2шт.

28

REF

INSTRUCTION

LAMP - front flood (See Figure 4-102)

1шт.

29

REF

INSTRUCTION

LAMP - rear flood (See Figure 4-102)

1шт.

30

REF

INSTRUCTION

WIPER ASSEMBLY - windshield (See Figure 9-536)

1шт.

35

REF

INSTRUCTION

WIPER ASSEMBLY - rear window (See Figure 9-540)

1шт.

36

F64723

HARNESS

- rear wiper

1шт.

37

353-701

BUSHING

- harness

1шт.

38

F64468

BUSHING

- terminal

1шт.
