Запчасти Case IH 2294 (4-070) - PLATFORM LAMP WIRING, TRACTOR WITHOUT CAB (04) - ELECTRICAL SYSTEMS

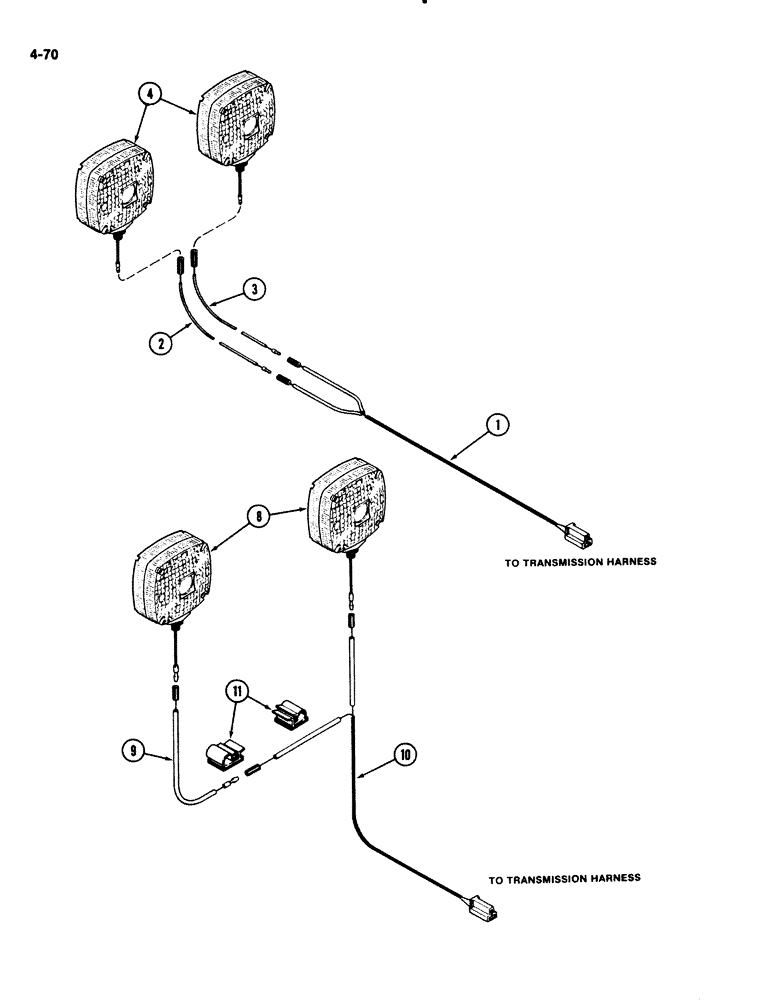

Схема запчастей Case IH 2294 - (4-070) - PLATFORM LAMP WIRING, TRACTOR WITHOUT CAB (04) - ELECTRICAL SYSTEMS
2
10
4
3
9
1
11
8

Артикул

Название

Примечание

Количество

1

A169888

HARNESS

- rear light, Tractor W/O Cab

1шт.

2

A160292

ELECTRICAL WIRE

WIRE - right flasher, 90 inch long (2286 mm)

1шт.

3

A160293

ELECTRICAL WIRE

WIRE - left flasher, 12 inch long (305 mm)

1шт.

4

REF

INSTRUCTION

LAMP - flasher (See Figure 4-100)

2шт.

8

REF

INSTRUCTION

LAMP - flasher (See Figure 4-100), tractor with 2 post rops

2шт.

9

A160292

ELECTRICAL WIRE

HARNESS - lamp, LH, tractor with 2 post rops

1шт.

10

A169888

HARNESS

- lamp, RH, tractor with 2 post rops

1шт.

11

F43611

CLIP

- harness, tractor with 2 post rops

2шт.

Выбрано товаров: 8
