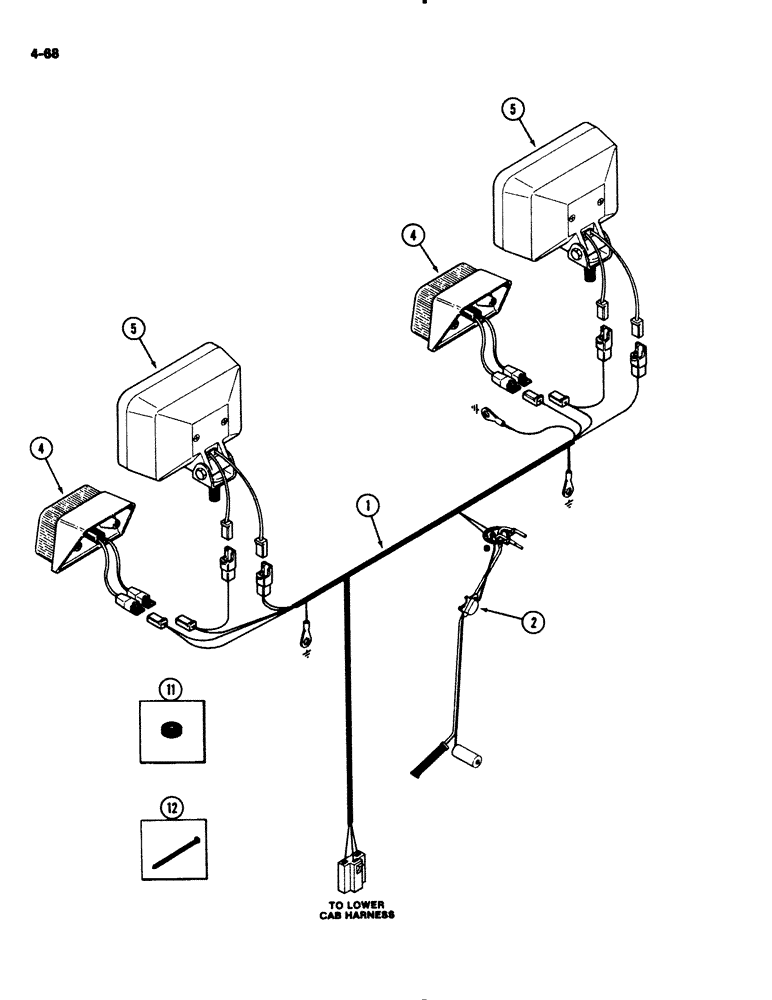

Запчасти Case IH 2294 (4-068) - REAR COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS

1

A167264

HARNESS

- rear light

1шт.

2

REF

INSTRUCTION

SENDER - fuel level (See Figure 3-058)

1шт.

4

A143925

LAMP

TAILLIGHT ASSEMBLY - (See Figure 4-100)

2шт.

5

REF

INSTRUCTION

LAMP - rear flood, black (See Figure 4-104)

2шт.

5

REF

INSTRUCTION

LAMP - rear flood, white (Without Cab) (See Figure 4-106)

1шт.

11

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- rear flood lamp wire

2шт.

12

R38237

STRAP

- nylon tie (Order L18337)

2шт.
