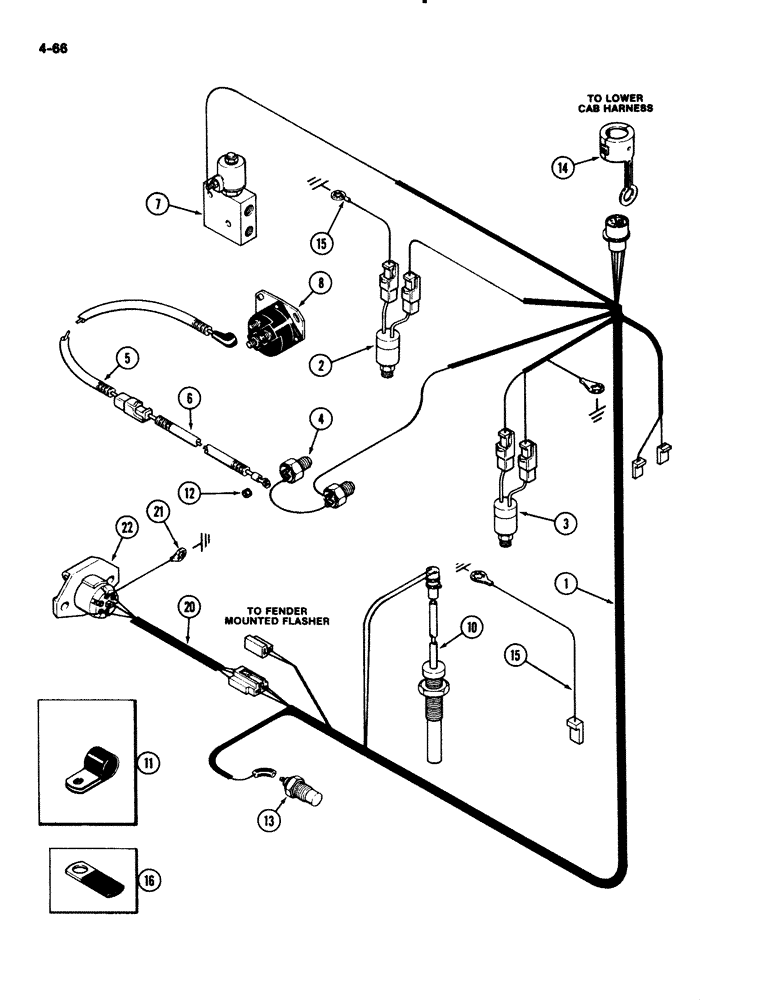

Запчасти Case IH 2294 (4-066) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

A176764

HARNESS

- transmission

1шт.

2

A162422

SWITCH

- transmission oil pressure

1шт.

3

A167895

SWITCH

- transmission filter pressure

1шт.

4

A160237

SWITCH

- neutral start

2шт.

5

A169158

ELECTRICAL WIRE

WIRE - neutral start

1шт.

6

A169157

ELECTRICAL WIRE

WIRE - intermediate solenoid

1шт.

7

A176599

VALVE

- solenoid, differential lock (Replaces A163322) (See Figure 7-296)

1шт.

8

REF

INSTRUCTION

SOLENOID - ignition (See Figure 4-084)

1шт.

10

A158683

TRANSMITTER

SENSOR - speed

1шт.

11

A38066

CLIP

- wire to PTO housing

1шт.

12

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- No. 8-32 hex Keps

4шт.

13

A154283

SWITCH

- transmission temperature

1шт.

14

A163118

CLAMP

- harness connecting

1шт.

15

A167839

ELECTRICAL WIRE

WIRE - oil pressure switch

1шт.

16

49839

CLAMP

CLIP - retaining

1шт.

20

A177485

HARNESS

- auxiliary outlet (Replaces A167266)

1шт.

21

A163117

ELECTRICAL WIRE

WIRE - ground, outlet, auxiliary harness

1шт.

22

A145795

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - seven point auxiliary outlet, harness

1шт.
