Запчасти Case IH 2294 (4-062) - FUSES AND FUSE HOLDER (04) - ELECTRICAL SYSTEMS

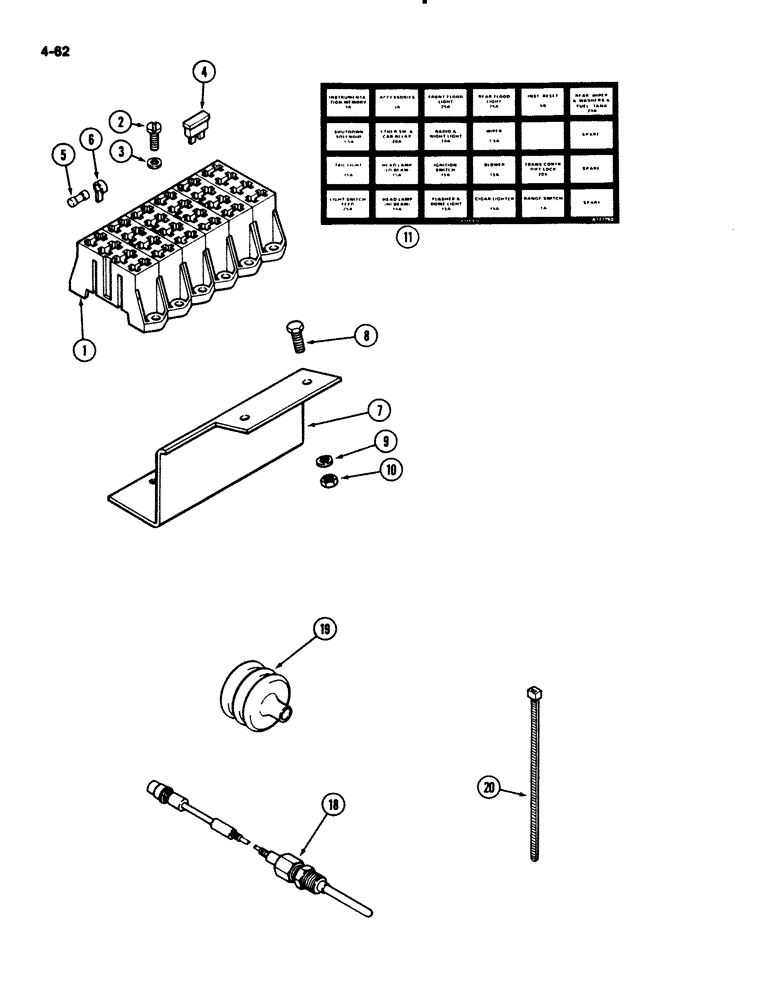

Схема запчастей Case IH 2294 - (4-062) - FUSES AND FUSE HOLDER (04) - ELECTRICAL SYSTEMS
9
6
3
7
2
8
11
1
18
5
10
19
4
20

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

HOLDER - fuse (Part of harness. See Figure: 4-061)

1шт.

2

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, No. 10-24 x 1/2 inch

3шт.

3

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

4

A149796

FUSE

- 3 ampere (violet code)

3шт.

4

A149798

FUSE

- 5 ampere (tan code)

1шт.

4

A149799

FUSE

- 7.5 ampere (brown code)

1шт.

4

A149800

FUSE,10 Amp

- 10 ampere (red code)

1шт.

4

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere (light blue code)

6шт.

4

A149802

FUSE

- 20 ampere (yellow code)

4шт.

4

A149803

FUSE,25 Amp

- 25 ampere (white code)

4шт.

5

A163102

FUSE

- 1 ampere

1шт.

6

A163103

CLIP

- fuse adapter

2шт.

7

A163038

BRACKET

- fuse block

1шт.

8

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

11

A177790

DECAL

- fuse location (Replaces A165867)

1шт.

11

A176278

DECAL

- fuse location (French language) (Replaces A169143)

1шт.

18

A162936

TRANSMITTER

THERMOCOUPLE - exhaust, pyrometer

1шт.

19

A145931

BELLOWS

BOOT - thermocouple

1шт.

20

R38237

STRAP

- nylon tie (Order L18337)

1шт.

A169696

CLAMP

Pyrometer Connector 02/15/96

1шт.

Выбрано товаров: 22
