Запчасти Case IH 2294 (4-060) - LOWER CAB HARNESS (04) - ELECTRICAL SYSTEMS

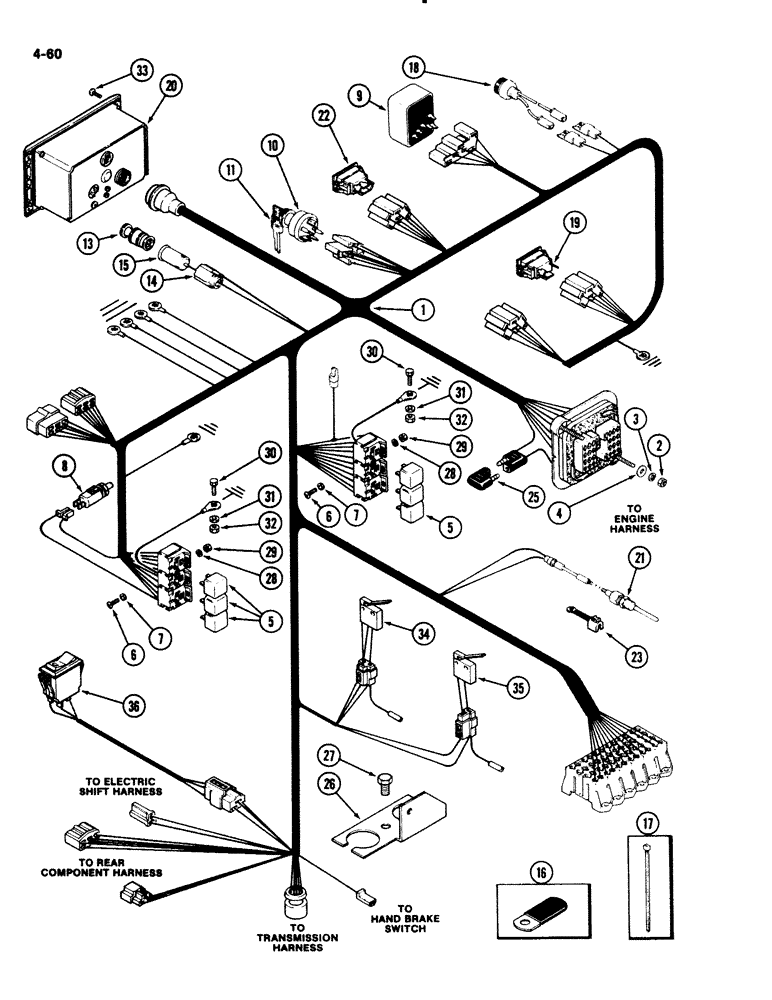

Схема запчастей Case IH 2294 - (4-060) - LOWER CAB HARNESS (04) - ELECTRICAL SYSTEMS
6
32
31
1
32
13
25
19
36
20
11
28
31
35
27
7
21
3
26
30
30
8
6
16
15
5
10
4
17
23
22
28
34
14
29
18
5
9
33
7
29
2

Артикул

Название

Примечание

Количество

1

A176967

HARNESS

ASSEMBLY - wire (Replaces A169332)(Order A177789 and A17790)

1шт.

2

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

4

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

5

A147176

RELAY

- electrical

6шт.

6

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

- phillips pan head, No. 10-24 x 3/4 inch

4шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

8

A163160

SWITCH

- differential lock kickout

1шт.

9

A77184

SWITCH

- turn signal and flasher

1шт.

10

A77312

SWITCH

- ignition (Order L61053)

1шт.

11

A77313

SET OF 2 KEYS

KEY - ignition switch (Set of 2)

1шт.

13

A177447

LIGHTER, CIGARETTE

ELEMENT - cigar lighter, push in (Replaces A143340)

1шт.

14

F63738

CIGAR LIGHTER

SHELL - cigar lighter

1шт.

15

F63530

SOCKET/RECEPTACLE

SOCKET - cigar lighter

1шт.

16

A37179

CLIP

- harness

1шт.

17

R38237

STRAP

- nylon (Order L18337)

1шт.

18

A135520

SWITCH

- cold start

1шт.

19

A169345

SWITCH

Assy. - Shut Down Override ref: 1896 catalog item 19 catalog 8-2721

1шт.

20

REF

INSTRUCTION

CLUSTER ASSEMBLY - instrument (See Figure 4-080)

1шт.

21

A162936

TRANSMITTER

THERMOCOUPLE - exhaust

1шт.

22

A163009

SWITCH

ASSEMBLY - light

1шт.

23

A169696

CLAMP

- connector

1шт.

25

A147976

DIODE

- lamp check

1шт.

26

A177067

BRACKET

- harness retaining (Replaces A169567)

1шт.

27

187-1332

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 5/8"

BOLT - hex self tapping, 3/8 NC x 5/8 inch

1шт.

28

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch (6 x 13 x 1 mm)

4шт.

29

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

4шт.

30

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

31

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

32

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex, 1/4 inch NC

2шт.

33

187-1333

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - Phillips pan head, self tapping, No. 10 x 3/4 inch

4шт.

34

A166333

SWITCH

- electric shift micro, (C1) and (C4)

1шт.

35

A167041

SWITCH

- electric shift micro, upper

1шт.

36

A176685

SWITCH

AND HARNESS ASSEMBLY - differential lock (Replaces A165289)

1шт.

Выбрано товаров: 34
