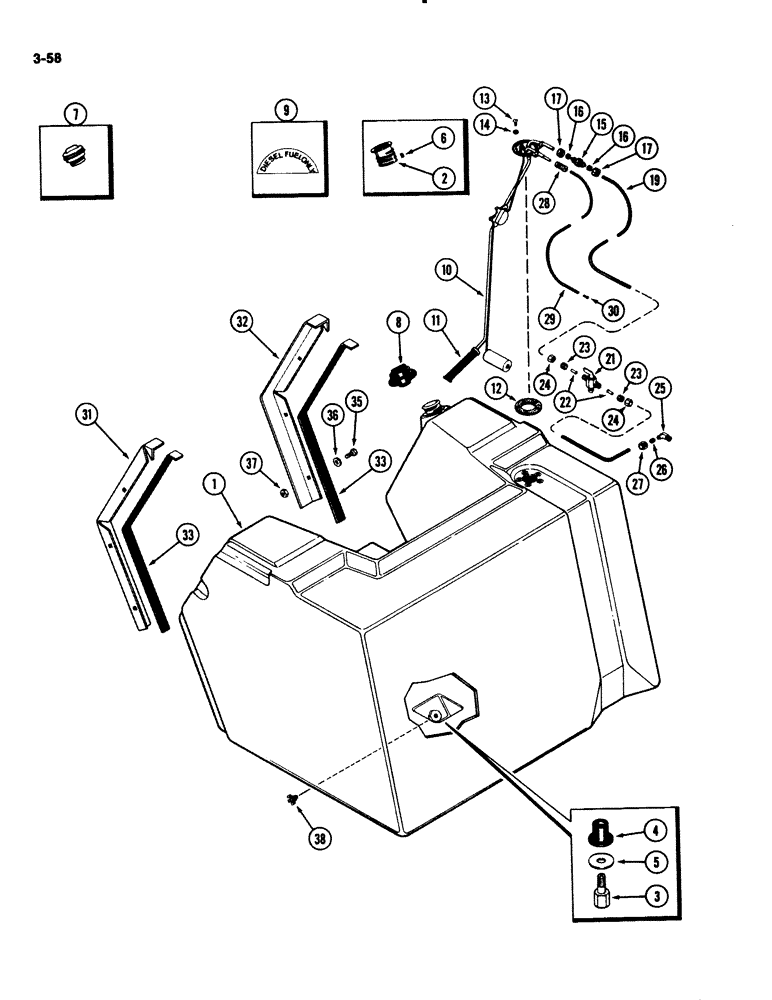

Запчасти Case IH 2294 (3-058) - FUEL TANK AND LINES, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

A167685

TANK

ASSEMBLY - fuel, 65 gallons (246 litres) (Replaces A162634), Includes: Ref. 2 - 6

1шт.

2

A147375

NECK FILLER

INSERT - filler neck

1шт.

3

A65890

STUD,3/8" - 16 x 1/4" NPT

- drain valve

1шт.

4

A143035

NUT,31.75mm OD x 26.97mm L

FASTENER - stud

1шт.

5

A65892

WASHER

- stud

1шт.

6

A161306

LOCK

NUT - filler neck

2шт.

7

A160226

CAP

- fuel filler (If equipped)

1шт.

8

A180111

CAP

- fuel filler (If equipped)

1шт.

9

321-4493

DECAL

- Diesel Fuel Only

1шт.

10

A161769

TRANSMITTER

UNIT - sending, fuel gauge, Includes: Ref. 11

1шт.

11

A47706

STRAINER ELEMENT

STRAINER - fuel

1шт.

12

A11822

GASKET

- sending unit

1шт.

13

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, No. 10-24 x 1/2 inch

5шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

15

222-2651

HYD CONNECTOR,17/32"-24

UNION ASSEMBLY - 3/8 tube to 3/8 inch tube (outlet tube), Includes: Ref. 16 and 17

1шт.

16

222-2611

SLEEVE

- 3/8 inch tube (10 mm)

2шт.

17

222-2601

NUT

NUT - 3/8 inch tube (10 mm)

2шт.

18

A66118

TUBE

- tank to pump, front, 3/8 OD x 38 inch (10 x 965 mm) (Order A167912)

1шт.

19

A136891

TUBE

- tank to pump, rear, 3/8 OD x 80 inch (10 x 2032 mm) (Order A167912)

1шт.

A167912

TUBE

- 3/8 OD x 152 inch (10 x 3 861 mm)

1шт.

21

A181561

VALVE

- shutoff (Replaces A169790), Includes: Ref. 22 - 24

1шт.

22

222-2446

INSERT,1/4" Tube

- 3/8 inch tube

2шт.

23

222-5186

SLEEVE,3/8" Tube

- 3/8 inch tube

2шт.

24

222-5181

NUT,9/16"-24

NUT - brass, 3/8 inch tube

2шт.

25

222-2726

ELBOW,45 Degree, 17/32"-24 x 1/4" NPT, Comp

ASSEMBLY - 45 degree, 3/8 inch tube x 9/16-24 inch, Includes: Ref. 26 and 27

1шт.

26

222-5186

SLEEVE,3/8" Tube

- 3/8 inch tube (10 mm)

1шт.

27

222-5181

NUT,9/16"-24

NUT - 3/8 inch tube (10 mm)

1шт.

28

222-2650

HYD CONNECTOR,7/16"-24

UNION - 1/4 inch tube to 1/4 inch tube (return tube)

1шт.

29

A67322

TUBE

- return, 1/4 inch OD x 104 inch (6 mm x 3 m)(Order L108947)

1шт.

30

A141160

INSERT

- nylon tube

1шт.

31

A139959

BRACKET

RETAINER - right, fuel tank

1шт.

32

A139961

BRACKET

RETAINER - left, fuel tank

1шт.

33

A139339

SEAL

- retainer

2шт.

35

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

6шт.

36

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

6шт.

37

131-133

NUT,Ret, 3/8"-16

6шт.

38

A23656

COCK, DRAIN

VALVE - drain, 1/4 inch PT

1шт.
