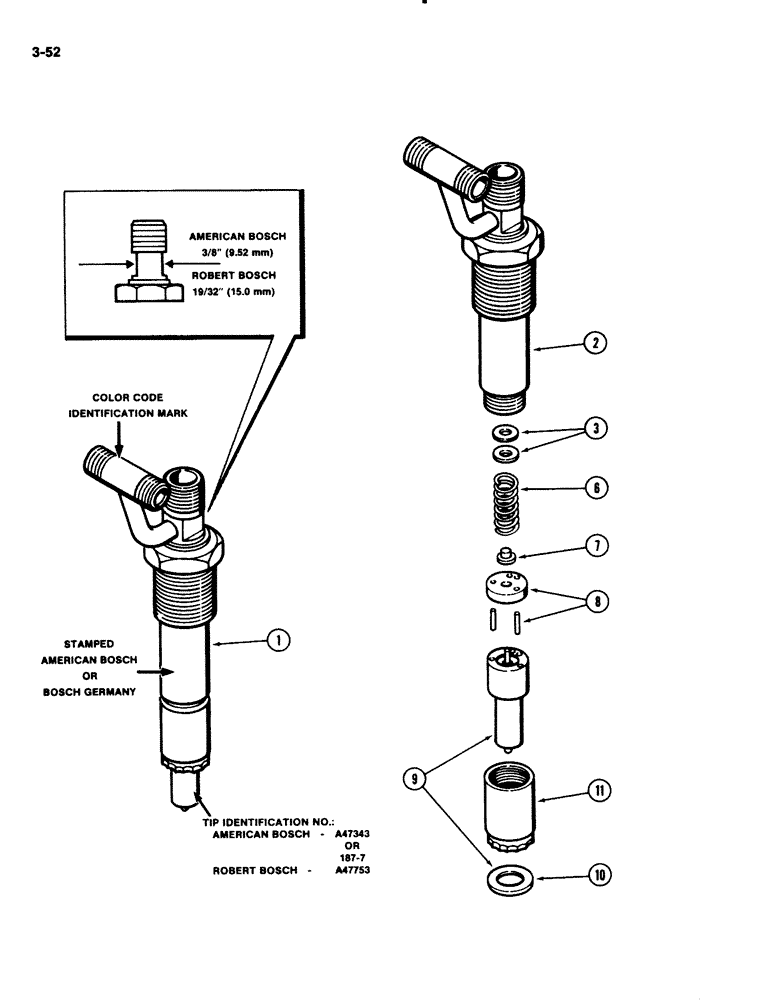

Запчасти Case IH 2294 (3-052) - FUEL INJECTOR NOZZLE, 504BDT DIESEL ENGINE, BLUE COLOR CODE IDENTIFICATION (03) - FUEL SYSTEM

A156323

NOZZLE CAP

NOZZLE ASSEMBLY - fuel injection, Includes: Ref. 1 - 11 and 15 - 27 on Figure 3-054

6шт.

A156323R

REMAN-INJECT NOZZLE

2294 (1/83-12/87)

6шт.

A156323C

CORE-NOZZLE, INJECT

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, American Bosch (Reference No. A67465), Includes: Ref. 2 - 11 and 16 - 27 on Figure 3-54

1шт.

Internal parts between the American Bosch and Robert Bosch injectors are not interchangeable. See illustration for identification.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156323)

1шт.

A44860

SHIM

KIT - nozzle, opening pressure (One kit will repair six nozzles), Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.062 inch (1.57 mm) 6 in kit

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch (0.05 mm) 80 in kit

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch (0.18 mm) 50 in kit

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch (0.25 mm) 50 in kit

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch (0.64 mm) 20 in kit

1шт.

6

A44864

SPRING

- nozzle pressure

1шт.

7

A44863

SEAT

- nozzle pressure spring

1шт.

8

A44862

VALVE

STOP - nozzle with pin (Includes dowel pins)

1шт.

9

A47343

NOZZLE CAP

TIP ASSEMBLY - nozzle injector, Includes: Ref. 10

1шт.

10

A76640

GASKET

- nozzle

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.
