Запчасти Case IH 2294 (2-040) - OIL PAN, 504BDT DIESEL ENGINE (02) - ENGINE

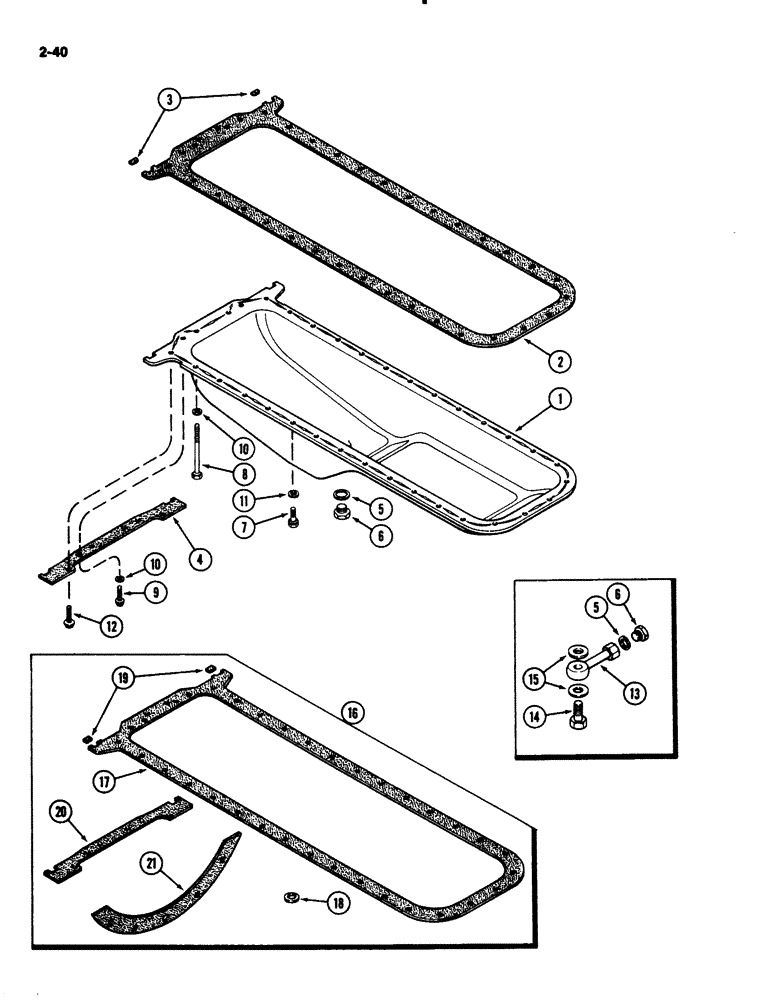

Схема запчастей Case IH 2294 - (2-040) - OIL PAN, 504BDT DIESEL ENGINE (02) - ENGINE
2
21
4
6
16
7
12
20
11
5
13
18
14
15
10
5
3
10
8
1
19
9
6
17

Артикул

Название

Примечание

Количество

1

A166236

PAN

- oil (Replaces A148753)

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - pan to block (Order A152479 below) (Reference No. A75308)

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET - corner (Order A152424 below) (Reference No. A75308)

2шт.

4

NSS

NOT SOLD SEPARAT

GASKET - seal plate (Order A152424 below)

1шт.

5

A27968

RING

- copper,drain plug

1шт.

6

A34826

PLUG,7/8" - 18 ORB

- drain

1шт.

7

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT ASSEMBLY - with lock washer, 3/8 x 7/8 inch

26шт.

8

13-688

BULB,Hex, 3/8" - 16 x 5 1/2", Gr 5

BOLT - hex, 3/8 NC x 5-1/2 inch

2шт.

9

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - Ferry, 3/8 NC x1-1/4 inch

2шт.

10

192-10

WASHER - lock, 3/8 inch

4шт.

11

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

26шт.

12

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

- hex Sems, 3/8 NC x 1-1/2 inch

2шт.

13

A164727

TUBE

- oil drain, MFD Tractor (If equipped)

1шт.

14

A164733

BOLT

- oil drain, MFD Tractor (If equipped)

1шт.

15

A27968

RING

- drain bolt, MFD Tractor (If equipped)

2шт.

16

A152479

GASKET KIT

KIT - gasket, oil pan, Includes: Ref. 17 - 21

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET - pan to block (Order A152479)(Reference No. A66996), oil pan

1шт.

18

A27968

RING

- drain plug, oil pan

1шт.

A152424

GASKET

KIT - rear seal (Used when tractor is split and oil pan is not removed), Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - corner (Order A152424)(Reference No. A75308), oil pan

2шт.

20

NSS

NOT SOLD SEPARAT

GASKET - flywheel cover (Order A152424), oil pan

1шт.

21

A57966

GASKET

- housing, oil pan

1шт.

Выбрано товаров: 22
