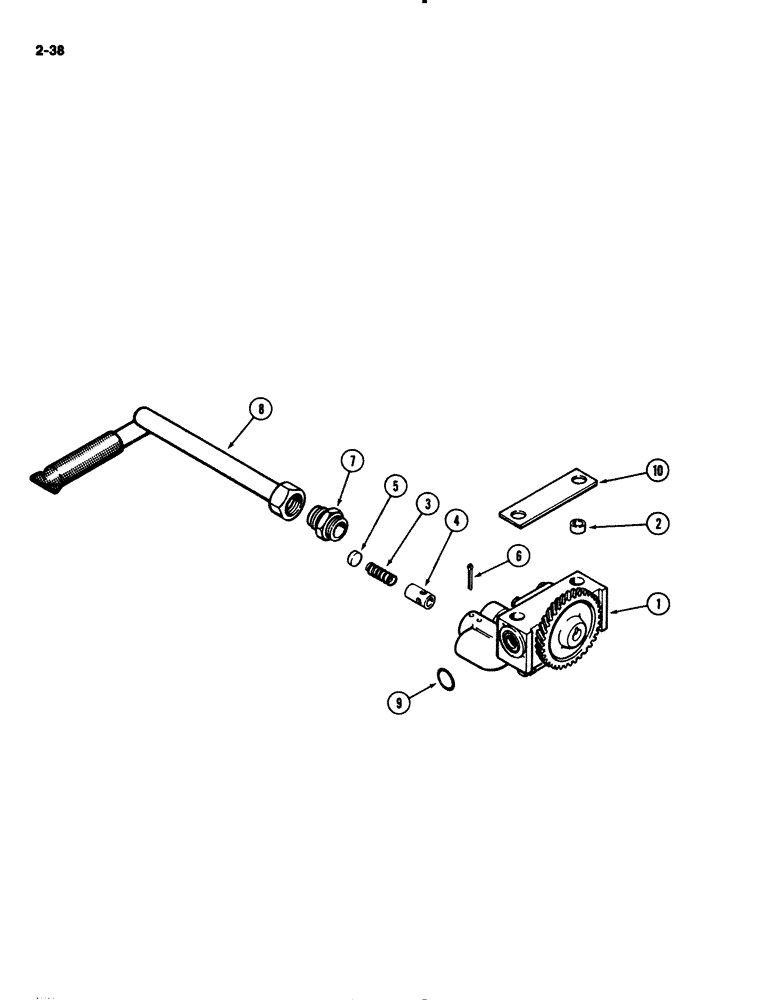

Запчасти Case IH 2294 (2-038) - OIL PUMP, 504BDT DIESEL ENGINE (02) - ENGINE

1

A153805

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine, Includes: Ref. 2 - 5

1шт.

2

A58915

SLEEVE

-, Serial Range: pump-block

1шт.

3

A155980

SPRING

- relief valve 11/16 OD x 2 inch free length (17 x 51 mm)

1шт.

4

A65083

VALVE

- relief

1шт.

5

41-1011

PLUG,Cup, 11/16"

- bore hole type, 11/16 inch (18 mm)

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

7

A142004

CONNECTOR, ELEC

CONNECTOR - suction, Serial Range: tube-pump

1шт.

8

A142449

TUBE

- oil suction (Includes screw)

1шт.

9

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil port

1шт.

10

A58859

SHIM,.005" Thk

Oil pump to block (0.127 mm) .005" Thk

1шт.
