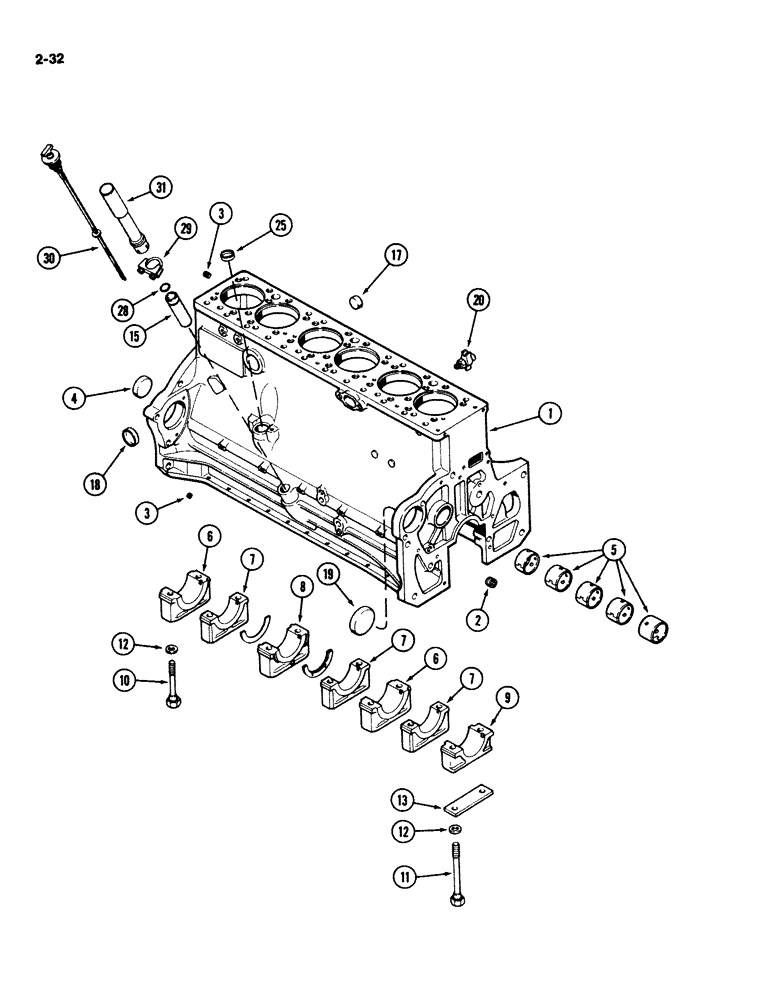

Запчасти Case IH 2294 (2-032) - CYLINDER BLOCK, 504BDT DIESEL ENGINE (02) - ENGINE

A166291

BLOCK

BLOCK ASSEMBLY - short (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, camshaft, timing gears and lifters)(Replaces A152972), Includes: Ref. 2 - 20

1шт.

A166291

BLOCK

BLOCK ASSEMBLY - short (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, camshaft, timing gears and lifters)(Replaces A152972), Includes: Ref. 2 - 20

1шт.

AR77831

REMAN-BASIC ENGINE

2294 Case Tractor with 2 Wheel Drive Only

1шт.

AC77831

CORE-BASIC ENGINE

Return Number, For Engine Core From 2294 With 2 Wheel Drive Only

1шт.

AR77831MFD

ENGINE, EXCHANGE

ENGINE (EXCHANGE) 2294 Case Tractor With Mechanical Front Drive Only

1шт.

AC77831MFD

CORE-ENGINE

Return Number, Engine Core From Tractors With Mechanical Front Drive Only

1шт.

1

A46002

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting No. A66526), Includes: Ref. 2 - 20

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - hex socket head, 3/8 inch PT

4шт.

3

221-1849

PLUG

PLUG - hex socket head, 1/8 inch PT

6шт.

4

A24361

PLUG

PLUG - camshaft hole, cup, 2-3/8 inch (60 mm)

1шт.

5

REF

INSTRUCTION

BUSHING - camshaft (See Figure 2-031)

1шт.

6

A154391

CAP

CAP - main bearing, wide

2шт.

7

A154390

CAP

CAP - main bearing, narrow

3шт.

8

A154392

CAP

CAP - main bearing, thrust

1шт.

9

A154389

CAP

CAP - main bearing, front

1шт.

10

A66948

STEP BOLT

BOLT - hex special, 4-15/16 inch

12шт.

11

A66949

STEP BOLT

BOLT - hex special, 7-3/16 inch

2шт.

12

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - hardened

14шт.

13

A58859

SHIM,.005" Thk

SHIM, , Oil pump to brg. cap (0.14 mm) .005" Thk

1шт.

15

A34540

TUBE

TUBE - oil filler and dipstick

1шт.

17

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - left side and rear, cup, 1-3/8 inch (35 mm)

3шт.

18

A58569

PLUG,Cup, 2", Stainless

PLUG - ride side heater hole, cup, 2 inch (51 mm)

1шт.

19

41-1052

PLUG,Cup, 3 1/4"

PLUG - cup, 3-1/4 inch (83 mm)

1шт.

20

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

25

41-1022

PLUG,Cup, 1 3/8"

PLUG - tachometer drive

1шт.

28

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

O-RING - tube seal

1шт.

29

L47766

CLAMP

CLAMP - tube

1шт.

30

A154767

DIPSTICK

DIPSTICK - oil level, large mouth

1шт.

31

A153835

TUBE

TUBE - extension, large mouth

1шт.
