Запчасти Case IH 2294 (2-030) - CAMSHAFT, 504BDT DIESEL ENGINE (02) - ENGINE

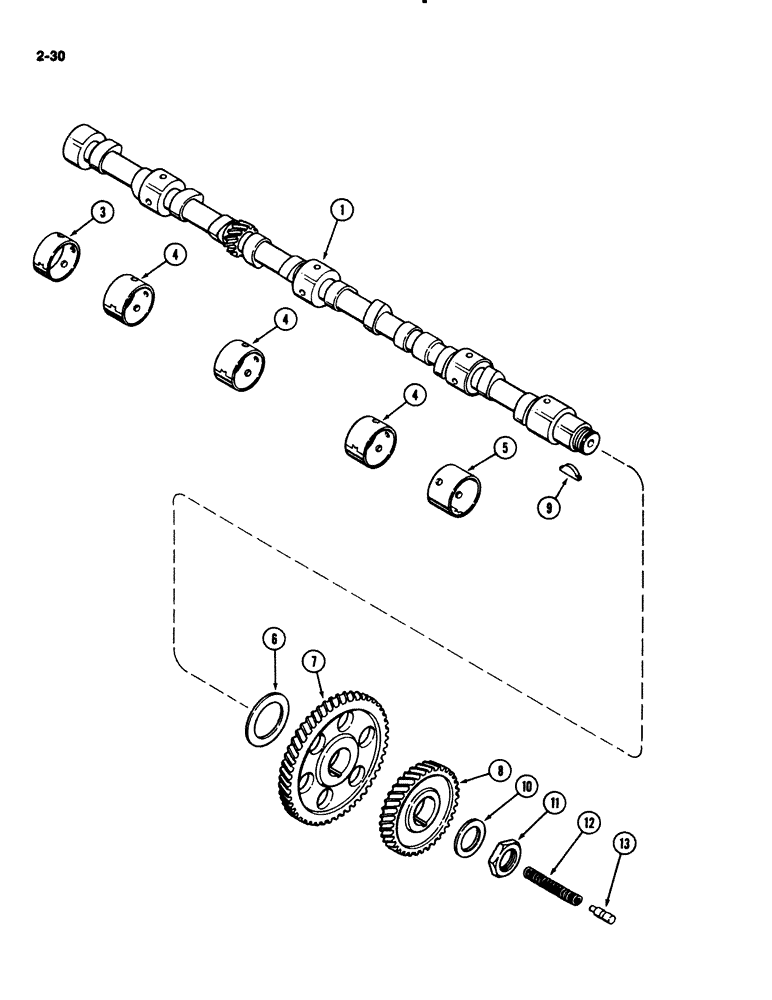

Схема запчастей Case IH 2294 - (2-030) - CAMSHAFT, 504BDT DIESEL ENGINE (02) - ENGINE
6
13
11
3
4
8
5
12
4
9
10
1
7
4

Артикул

Название

Примечание

Количество

1

A66124

CAMSHAFT

- engine

1шт.

3

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- camshaft, rear, 1-5/32 inch wide (29 mm)

1шт.

4

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- camshaft, intermediate, 1-7/16 inch wide (37 mm)

3шт.

5

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- camshaft, front, 1-21/32 wide (42 mm)

1шт.

6

A21017

WASHER

- camshaft thrust

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idle drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - 5/16 x 1-5/16 inch

1шт.

10

A31038

THRUST WASHER

- lock, camshaft nut

1шт.

11

A58595

NUT

- camshaft

1шт.

12

A27853

SPRING

- plunger, camshaft thrust

1шт.

13

A27852

PLUNGER

- thrust, camshaft

1шт.

Выбрано товаров: 12
