Запчасти Case IH 2294 (2-026) - CYLINDER HEAD AND COVER, 504BDT DIESEL ENGINE (02) - ENGINE

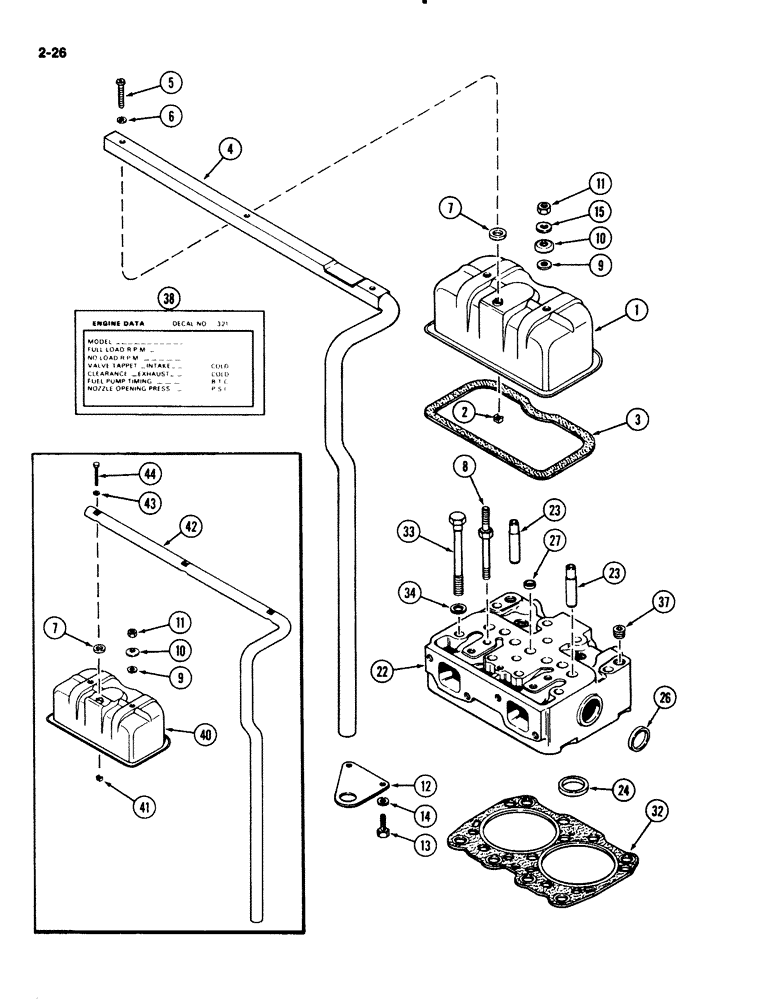

Схема запчастей Case IH 2294 - (2-026) - CYLINDER HEAD AND COVER, 504BDT DIESEL ENGINE (02) - ENGINE
4
12
23
42
9
1
24
34
11
27
7
15
23
40
26
37
33
8
22
13
10
7
43
32
41
6
5
14
2
38
3
9
11
10
44

Артикул

Название

Примечание

Количество

1

A166170

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - Tinnerman, 1/4 inch NC

1шт.

3

REF

INSTRUCTION

GASKET - cover (See Figure 2-43)

3шт.

4

A166157

TUBE

SPARE PART TUBE - breather

1шт.

5

182-587

SCREW,Cross Pan Hd, 1/4"-20 x 2 1/2"

BOLT - pan head, 1/4 NC x 2-1/2 inch

3шт.

6

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

WASHER - breather tube bolt

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET -, Serial Range: tube-cover

3шт.

8

A67121

STUD

STUD - special, 6-1/16 inch

6шт.

9

A142098

GROMMET

GROMMET - cover stud

6шт.

10

A156097

WASHER,11.94mm ID x 31.22mm OD x 1.32mm Thk

WASHER - cover stud

6шт.

11

129-104

NUT,7/16"-14, G5

NUT, 7/16"-14, G5

6шт.

12

A59054

BRACKET

BRACKET - breather tube to oil pan

1шт.

13

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - hex, Sems, 3/8 NC x 1-1/4 inch

2шт.

14

195-525

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

1шт.

15

195-529

WASHER,7/16", SAE

WASHER - flat, 15/32 x 59/64 x 1/16 inch (12 x 23 x 2 mm)

6шт.

22

A67352

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Casting No. A138337), Includes: Ref. 23 - 27

3шт.

22

AR148939

REMAN-CYLINDER HEAD

Cylinder Head

3шт.

22

AC148939

CORE-CYLINDER HEAD

Return Number

3шт.

23

A57448

GUIDE

GUIDES - intakes and exhaust valves

4шт.

24

A58619

INSERT

INSERT - exhaust valves

2шт.

26

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - cup type, 1-5/8 inch (41 mm)

2шт.

27

A58620

PLUG,Cup, 3/4", Stainless

PLUG - cup type, 3/4 inch (19 mm)

3шт.

32

REF

INSTRUCTION

GASKET - cylinder head (With fire rings)(See Figure 2-042)

3шт.

33

A76638

BOLT

BOLT - hex, 5/8 NC x 6 inch

30шт.

34

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - hardened

30шт.

37

221-1843

PLUG

PLUG - hex socket head 3/8 inch PT

5шт.

38

321-3972

DECAL

DECAL - engine specification

1шт.

40

A58929

COVER

COVER ASSEMBLY - cylinder head (If equipped), Includes: Ref. 41

3шт.

41

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - Tinnerman, 1/4 inch NC

1шт.

42

A59053

TUBE

TUBE - breather (If equipped)

1шт.

43

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET - breather tube bolt (Replaces A34133)

3шт.

44

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

BOLT - hex, 1/4 NC x 2-1/2 inch

3шт.

Выбрано товаров: 32
