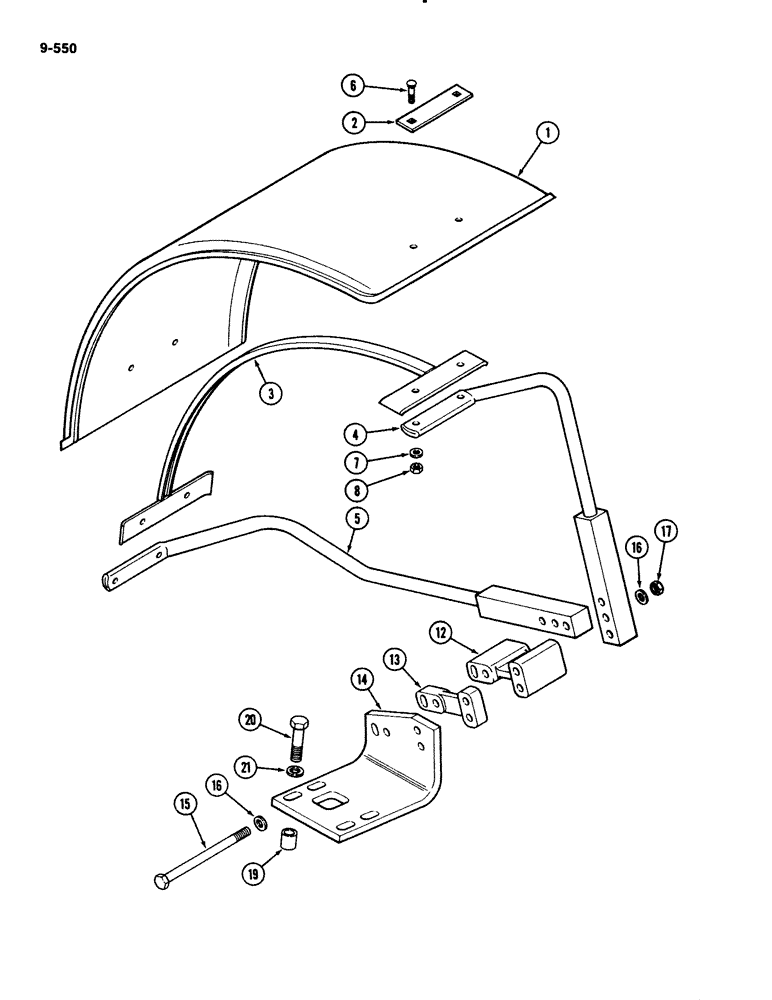

Запчасти Case IH 2294 (9-550) - FRONT FENDERS (09) - CHASSIS/ATTACHMENTS

A181135

FENDER ASSY.

FENDER ATTACHMENT - front, MFD (For ZF axle) (Machinery Item), Includes: Ref. 1 - 21

1шт.

1

A181006

FENDER

- front

2шт.

2

A181125

PLATE

- retaining, outer fender

4шт.

3

A181124

CHANNEL

SUPPORT ASSEMBLY - fender

2шт.

4

A181366

BRACE

ASSEMBLY - fender, top right

1шт.

4

181365

BOLT,Hex, 3/8" - 24 x 1 1/8", Gr 5

BRACE ASSEMBLY - fender, top left

1шт.

5

A181368

BRACE

ASSEMBLY - fender, right rear

1шт.

5

A181367

BRACE

ASSEMBLY - fender, left rear

1шт.

6

111-271

BOLT - round head square neck, 3/8 NC x 2 inch

8шт.

7

195-525

WASHER,3/8", SAE

- flat, 13/32 x 3/16 x 1/16 inch (10 x 21 x 2 mm)

8шт.

8

129-191

NUT,7/16"-14, G5

- hex, 3/8 inch NC

8шт.

12

A181128

SPACER

- fender, Serial Range: brace-bracket

2шт.

13

A181129

SPACER

- fender, bracket

2шт.

14

A181127

PLATE

BRACKET - fender brace mounting, right

1шт.

14

A181126

PLATE

BRACKET - fender brace mounting, left

1шт.

15

113-2257

BOLT,Hex, 1/2" - 13 x 8-3/4", Gr 5

- hex, 1/2 NC x 8-3/4 inch

8шт.

16

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 7/64") (13 x 27 x 3 mm) 1/2", SAE

16шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

19

A180416

SPACER

-, Serial Range: axle-bracket

8шт.

20

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

8шт.

21

195-541

WASHER,5/8", SAE

- flat, 1/32 x 1-5/16 x 7/64 (17 x 33 x 3 mm)

8шт.
