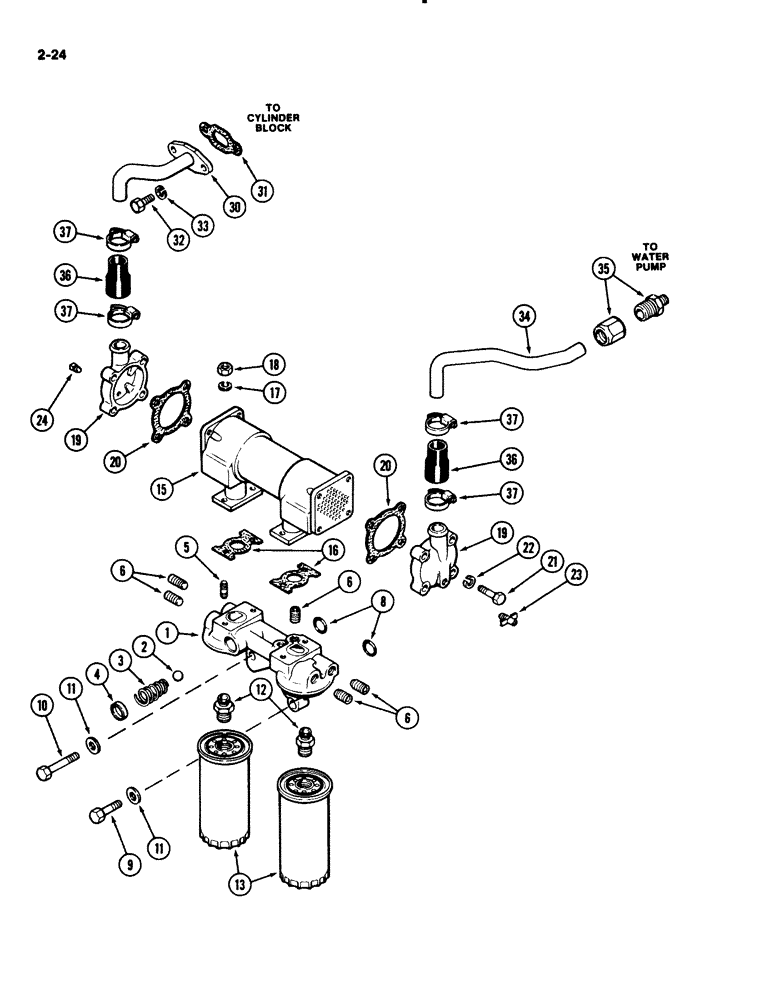

Запчасти Case IH 2294 (2-024) - OIL FILTER AND HEAT EXCHANGER, 504BDT DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A154541
BASE
ASSEMBLY - oil filter, Includes: Ref. 2 - 6
1шт.
2
211-17
BALL,3/4" Dia
- relief filter valve
1шт.
3
A146897
SPRING
- relief valve, 2-13/16 inch (71 mm) free length
1шт.
4
41-1020
PLUG,Cup, 1 1/4"
- 1-1/4 inch (32 mm) cup type
1шт.
5
G102128
BOLT
- 3/8 NC x 1-1/2 inch
4шт.
6
221-844
PLUG,Hex Soc, 1/2"-14
- square socket head, 1/2 inch PT
5шт.
8
A64434
O-RING,0.93" ID x 1.142" x 0.106"
- filter base
2шт.
9
113-421
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1шт.
10
113-425
BOLT,Hex, 1/2" - 13 x 3", Gr 5
1шт.
11
195-511
WASHER,#10
- flat, 1/2 x 1-1/16 x 1/8 inch (13 x 27 x 3 mm)
2шт.
12
A63916
ADAPTER
-, Serial Range: element-base
2шт.
13
NSS
NOT SOLD SEPARAT
ELEMENT - filter, oil (JI Case installed only) 6-7/8 inch long (175 mm)(Order A44081)(Reference No. A75294)
2шт.
13
A44081
ENGINE OIL FILTER
ELEMENT - filter, oil (Service only) 8-5/8 inch long (219 mm)
1шт.
15
A63917
COOLER
EXCHANGER - heat, oil
1шт.
16
A65359
GASKET
- heat exchanger to filter base
1шт.
17
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
18
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
4шт.
19
A64349
HOOD
COVER - end, heat exchanger
2шт.
20
A63920
GASKET
- cover
2шт.
21
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- hex 3/8 NC x 1-1/2 inch
8шт.
22
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
23
217-107
VALVE
- drain, heat exchanger
1шт.
24
221-11
PLUG,Sq Hd, 1/8"-27
- square head, 1/8 inch PT
1шт.
30
A64350
TUBE
- head, Serial Range: exchanger-block
1шт.
31
A58670
GASKET
- tube
1шт.
32
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
2шт.
33
92-8
LOCK WASHER,1/2"
2шт.
34
A166133
TUBE
- heat exchanger to water pump
1шт.
35
222-2020
FITTING
CONNECTOR - tube
1шт.
36
A64353
HOSE
- end cover to water tubes
2шт.
37
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose, 1-3/16 to 1-3/4 inch (30 to 44 mm)
4шт.
Выбрано товаров: 31
