Запчасти Case IH 2294 (9-526) - CAB, HEATER, PRIOR TO CAB SERIAL NUMBER 12107380 (09) - CHASSIS/ATTACHMENTS

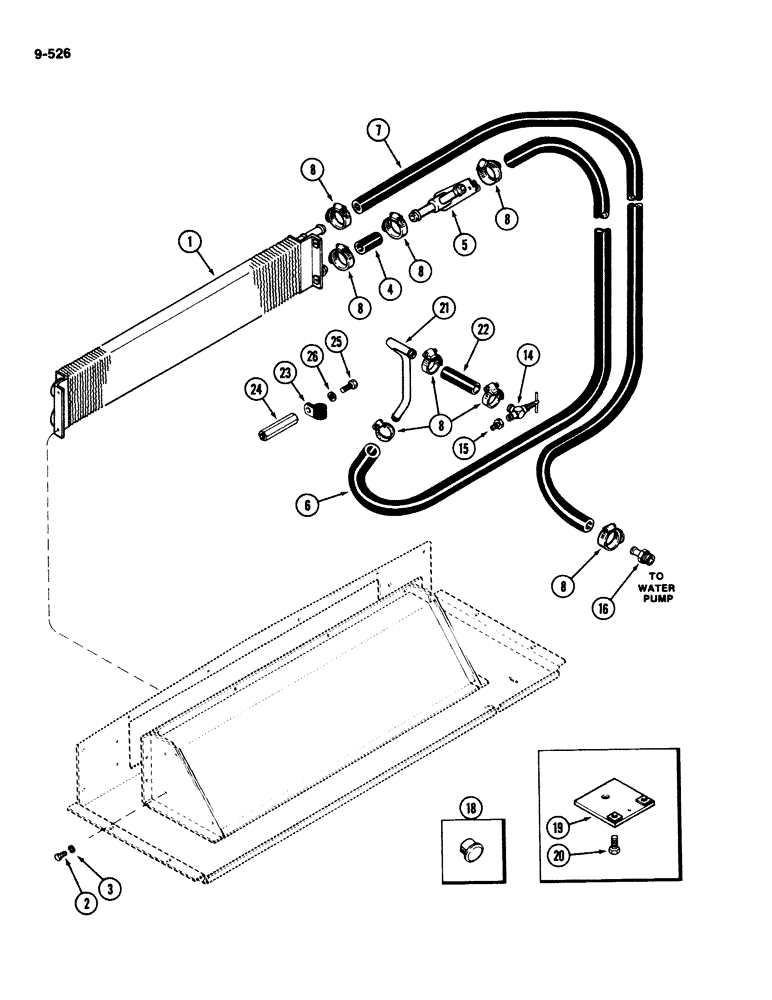

Схема запчастей Case IH 2294 - (9-526) - CAB, HEATER, PRIOR TO CAB SERIAL NUMBER 12107380 (09) - CHASSIS/ATTACHMENTS
4
20
7
25
26
2
16
15
8
8
8
23
14
22
18
21
24
3
8
8
6
8
1
19
5

Артикул

Название

Примечание

Количество

1

F63680

CORE

- heater

1шт.

2

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

4

NSS

NOT SOLD SEPARAT

HOSE - core to valve, 2 inch black (51 mm) (Order A42610) (Reference No. F64008)

1шт.

5

F63865

VALVE

- control, heater

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - valve outlet, black, 134 inch (3 403 mm) (Order A42610) (Reference No. F64218)

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - core inlet black 104 inch (2 641 mm) (Order A42610) (Reference No. F64219)

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 x 1-1/16 inch (14 x 27 mm)

8шт.

A42610

LARGE HOSE

HOSE - 5/8 ID (16 mm) x 1 inch OD (25 mm) x 50 feet roll (15.2 m) (Cut to desired length)

1шт.

14

A16764

VALVE

- shut off

1шт.

15

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 x 3/8 inch PT

1шт.

16

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose to water pump

1шт.

18

353-496

PLUG

BUSHING - heater hose (in frame) (Order F64485)

2шт.

19

F98277

PLATE ASSY.

PLATE - hose support (If Equipped)

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(If Equipped) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

21

A149953

TUBE

- heater hose

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - tube to manifold, 3-1/2 inch (119 mm) (Order A42610) (Reference No. A135900)

1шт.

23

NLS

NO LONGER SERVICED

- hose to exhaust manifold

1шт.

23

A160691

CLAMP

- hose to throttle bracket

2шт.

24

A164486

NUT

- heater tube spacer

1шт.

25

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Выбрано товаров: 22
