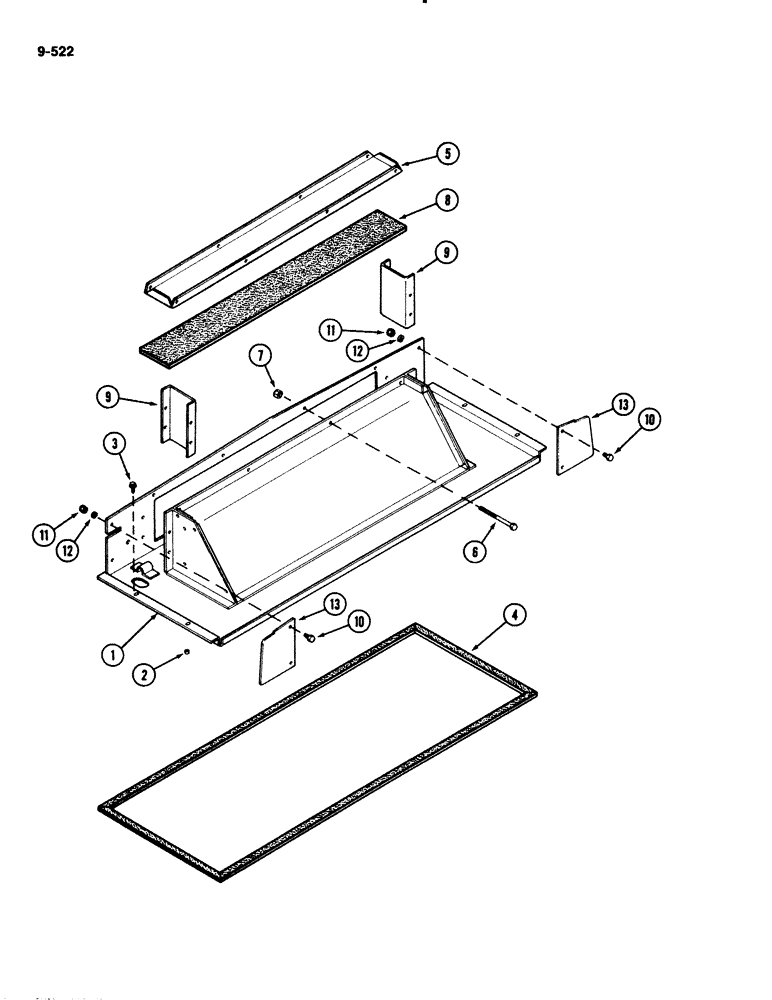

Запчасти Case IH 2294 (9-522) - CAB, PLENUM, PRIOR TO CAB SERIAL NUMBER 12107380 (09) - CHASSIS/ATTACHMENTS

1

F98173

DUCT

CHANNEL - air passage

1шт.

2

F44834

BUSHING

- channel

4шт.

3

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - washer head self tapping No. 10-16 x 1/2 inch

4шт.

4

NSS

NOT SOLD SEPARAT

SEAL - tube, floor 111-1/2 inch (2 832 mm) (Order F64119)

1шт.

F64119

SEALING STRIP

SEAL - 100 feet roll (30 m) (Cut to desired length)

1шт.

5

F63841

COVER

- top, air duct

1шт.

6

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex, 1/4 NC x 4 inch

8шт.

7

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

8шт.

8

F63671

SEAL

- top cover

1шт.

9

F63614

PLATE ASSY.

PLATE - filler, air tube side

2шт.

10

113-40

BOLT,Hex, 1/4" - 20 X 3/4", Gr 2

- hex, 1/4 NC x 1/2 inch

4шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

13

F64013

PLATE ASSY.

PLATE - end, air tube (If equipped)

2шт.
