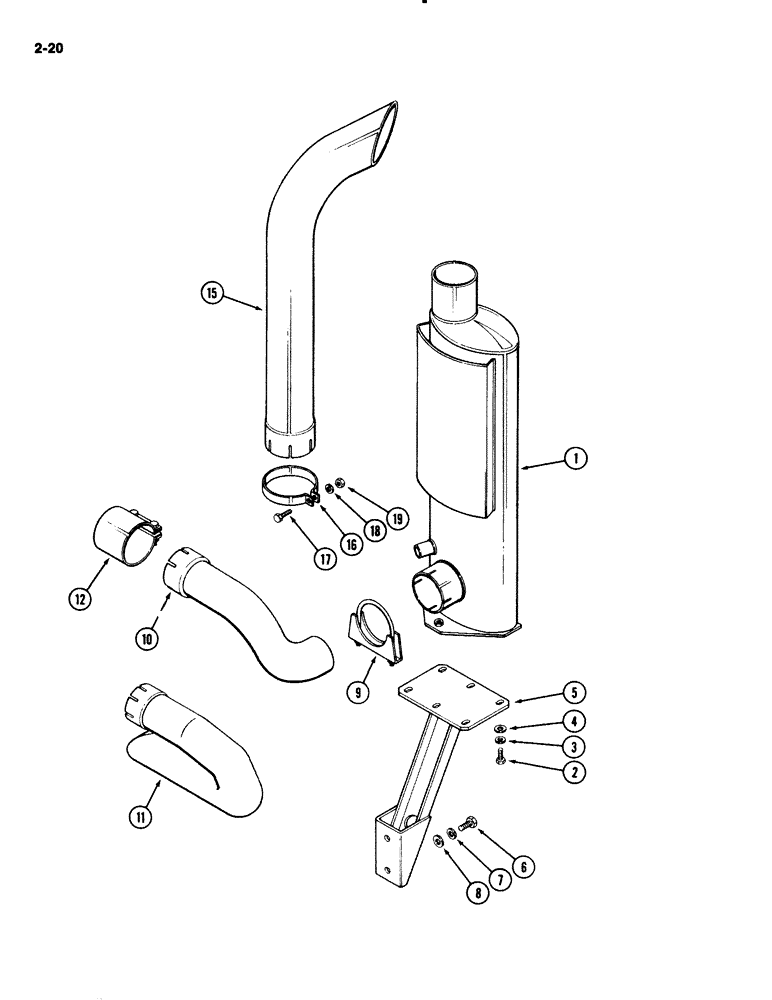

Запчасти Case IH 2294 (2-020) - EXHAUST MUFFLER, 504BDT DIESEL ENGINE (02) - ENGINE

1

A147065

MUFFLER

- aspirated

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

3шт.

5

A147066

SUPPORT

- muffler

1шт.

6

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 5/64 inch (14 x 35 x 2 mm)

2шт.

9

A145577

CLAMP

- exhaust pipe to muffler

1шт.

10

A180997

TUBE

PIPE - exhaust, turbocharger to muffler (Replaces A147064)

1шт.

11

A181268

TUBE

PIPE - exhaust, turbocharger to muffler (MFD Tractor) (Replaces A164590)

1шт.

12

A149249

ASSEMBLY

SEAL - clamp, exhaust pipe to turbocharger

1шт.

15

A181267

TUBE

EXTENSION - muffler exhaust (Replaces A141777)

1шт.

16

A162895

CLAMP

- extension

1шт.

17

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.
