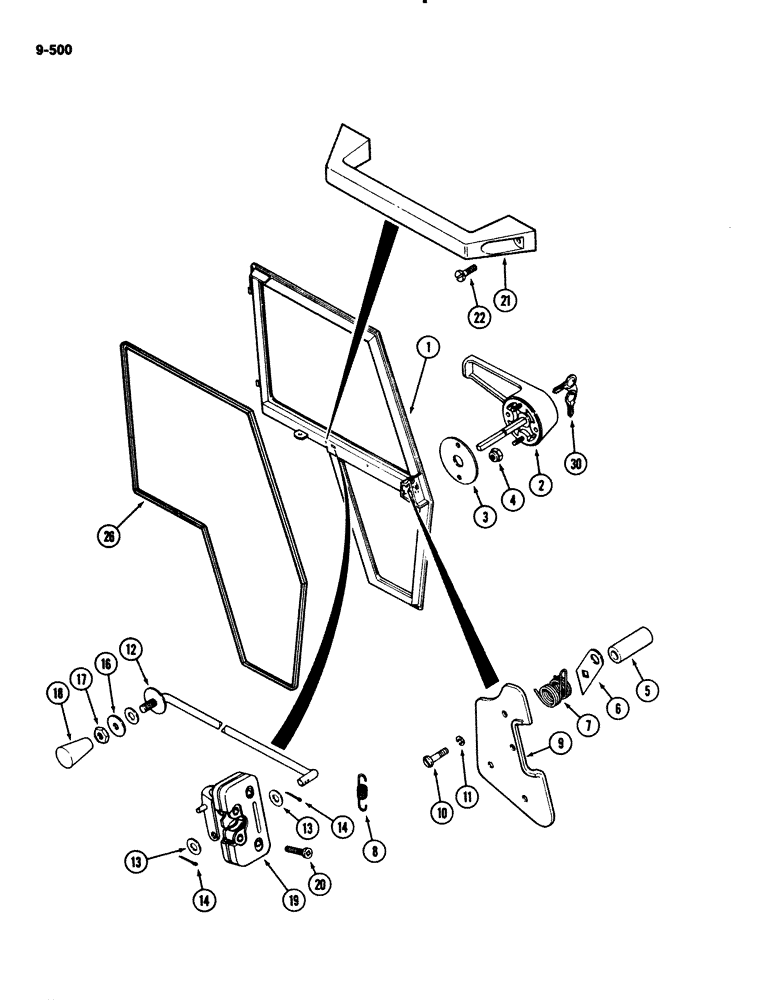

Запчасти Case IH 2294 (9-500) - CAB, DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS

F97271

DOOR SEAL

DOOR ASSEMBLY - complete (Includes glass) (Order F97066), Includes: Ref. 1 - 26

1шт.

Order glass and moulding from Figure 9-508.

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR - cab (Order F97066)

1шт.

2

F66158

HANDLE - outer (Order F66157)

1шт.

This is a multi-length handle used for several applications. It can be changed by cutting the square shaft. The following lengths apply: P/N F45080, 3.75", as supplied, P/N F66158 and F66159, 2.75", P/N F45307, 1.20".

1шт.

3

F54342

GASKET - handle

1шт.

4

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

5

F64358

SPACER

- latch shaft

1шт.

6

F64371

ARM

- latch

1шт.

7

F64338

SPRING

- latch handle

1шт.

8

F45162

SPRING

- door cover

1шт.

9

F66086

COVER ASSY

COVER - latch, door

1шт.

10

182-588

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- special, 1/4 NC x 1/2 inch

4шт.

11

193-117

WASHER,Ext-Int Tooth, 1/4"

- lock special, 1/4 inch

4шт.

12

F98226

ROD

- latch pull

1шт.

13

F64384

WASHER

- flat

2шт.

14

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

16

F64340

WASHER

- shoulder

1шт.

17

131-1280

JAM NUT,Jam, 1/4"-20

NUT - lock, jam special

1шт.

18

F64341

KNOB

- latch rod

1шт.

19

F66155

LATCH

- door rotary (Replaces F64296)

1шт.

20

F45337

SCREW,1/4" - 20 x 1", Gr 5

- special

4шт.

21

F64890

HANDLE

- door, inner (Order F64547)

1шт.

22

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- pan head, 1/4 NC x 3/4 inch

2шт.

26

F64880

STRIP

- weather, door frame (Order F64773)

1шт.

30

A77313

SET OF 2 KEYS

KEY - door lock (Set of 2) (Also used as ignition key)

1шт.
