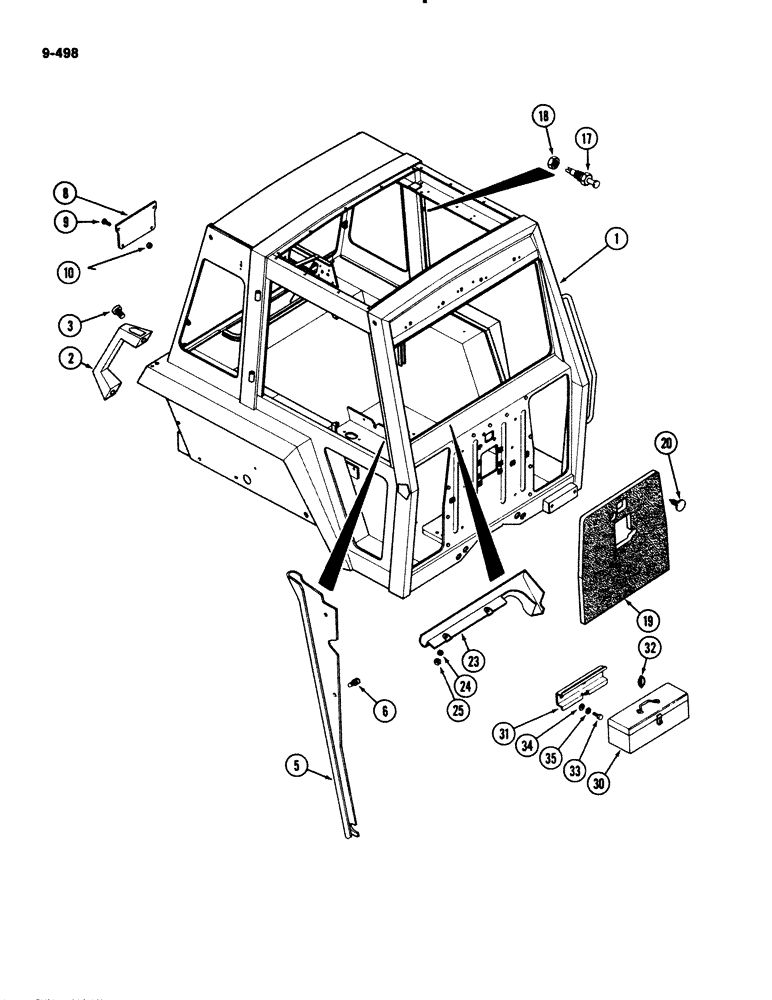

Запчасти Case IH 2294 (9-498) - CAB ASSEMBLY, FRAME (09) - CHASSIS/ATTACHMENTS

F98349

CAB

- with heater, air conditioning and radio speaker and antenna (Machinery Item) (Replaces F98258)

1шт.

F98339

CAB

- with heater, air conditioning, radio speaker and antenna and air/oil seat supports (Machinery Item)

1шт.

F98352

CAB - with heater, air conditioning and radio speaker (Europe only)

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

Order glass and moulding from Figure 9-508.

1шт.

2

F64547

HANDLE

- rear

2шт.

3

182-586

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"

BOLT - pan head, 1/4 NC x 1-1/2 inch

4шт.

5

F64614

COVER ASSY

COVER - harness

1шт.

6

F64646

PIN

- clinch

2шт.

8

A149306

COVER

- rear, fuel tank water trap opening

1шт.

9

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- No. 10-24 x 1/2 inch slotted pan head

4шт.

10

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT -Keps, No. 10-24

4шт.

17

F63895

SWITCH

- dome light, door opening

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

1шт.

19

A167044

PAD

- firewall noise

1шт.

20

A166346

FASTENER

- firewall pad

6шт.

23

F64719

COVER

- wire harness

1шт.

24

195-124

WASHER,5/16" x 3/4" x .065"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

30

A181436

TOOL BOX

BOX, TOOL (available for Cab Serial No. 12108332 and after) (Machinery item)

1шт.

31

A181434

SUPPORT

BRACKET - mounting, tool box

1шт.

32

A30338

PIN

- lock, klick

1шт.

33

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

34

195-533

WASHER,1/2", SAE

(17/32 x 1-1/6 x 3/32") (14 x 27 x 2 mm) 1/2", SAE

3шт.

35

192-63

LOCK WASHER,1/2"

1/2"

2шт.
