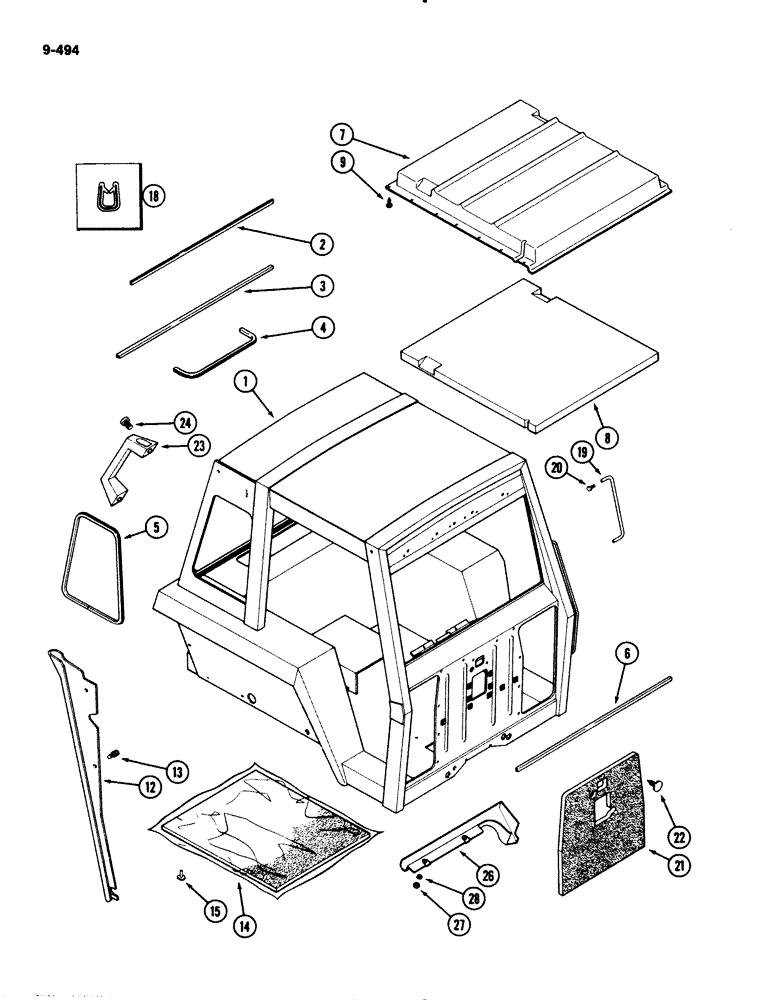

Запчасти Case IH 2294 (9-494) - 4 POST PROTECTIVE FRAME (09) - CHASSIS/ATTACHMENTS

F98342

FUNNEL

FRAME ASSEMBLY - 4 post protective (Machinery Item) (Replaces F98251), Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - 4 post (Order F98342)

1шт.

2

NSS

NOT SOLD SEPARAT

MOULDING - rear window (Order F64277)

1шт.

3

NSS

NOT SOLD SEPARAT

MOULDING - rear window (Order F64277)

1шт.

4

NSS

NOT SOLD SEPARAT

MOULDING - horizontal window (Order F64277)

1шт.

5

NSS

NOT SOLD SEPARAT

MOULDING - rear side window (Order F64277)

2шт.

6

NSS

NOT SOLD SEPARAT

MOULDING - front window, 49-1/2 inch (1257 mm) (Order F64277)

1шт.

7

F64803

PADDING

HEADLINER - ROPS

1шт.

8

F64804

FOAM

- head liner

1шт.

9

187-1333

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping

19шт.

12

F64614

COVER ASSY

COVER - harness

1шт.

13

F64646

PIN

- clinch

2шт.

14

F64801

FLOOR MAT

MAT - under floor (Order F66048)

1шт.

15

F64518

RETAINER

- mat

15шт.

18

F64277

SEAL

MOULDING - window, 50 feet roll (15 m)

1шт.

19

A143834

HANDLE

- mounting

1шт.

20

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

(Order 1-113-103 bolt and 1-195-521 washer) Hex Flg, 5/16"-18 x 3/4", Serr

2шт.

21

A167044

PAD

- firewall

1шт.

22

A166346

FASTENER

- firewall pad

6шт.

23

F64547

HANDLE

- rear fender

2шт.

24

182-586

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"

BOLT - pan head, 1/4 NC x 1-1/2 inch

4шт.

26

F64719

COVER

- wire harness (Replaces A64719)

1шт.

27

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

28

195-124

WASHER,5/16" x 3/4" x .065"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.
