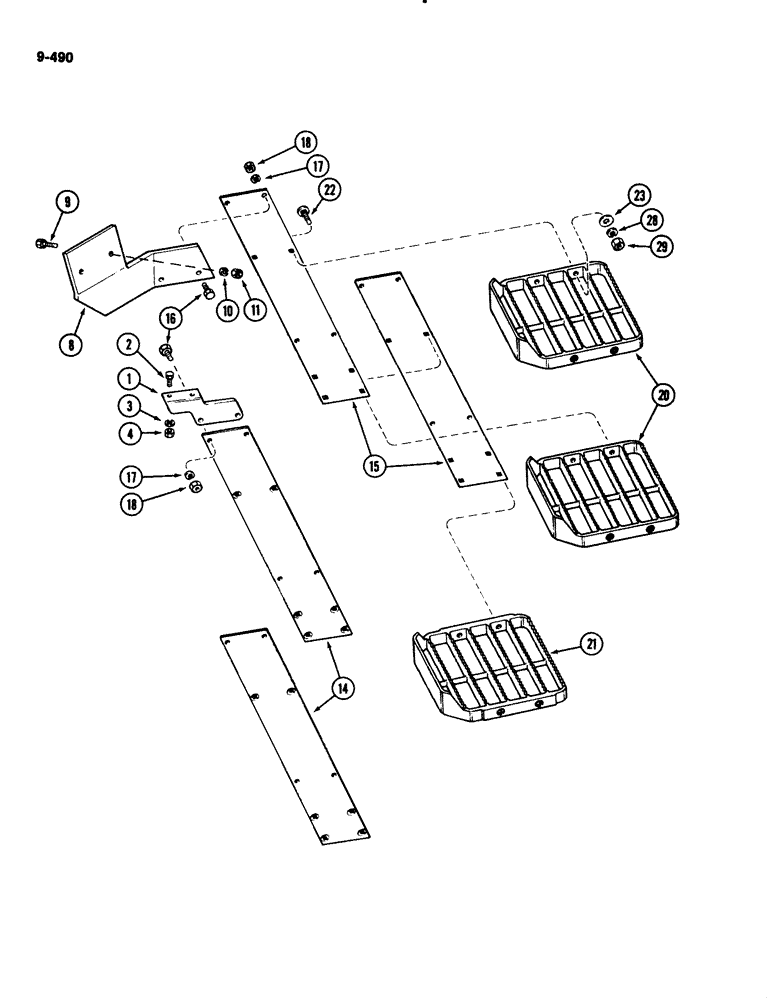

Запчасти Case IH 2294 (9-490) - STEPS (09) - CHASSIS/ATTACHMENTS

1

A177873

BRACKET

PLATE - adapter, step

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

8

A177544

BRACKET

- mounting, step

1шт.

9

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

A177259

PLATE ASSY.

PLATE - step side, right

2шт.

15

A177273

PLATE

- step side, left

2шт.

16

113-268

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

- hex, 3/8 NC x 1 inch

4шт.

17

192-82

LOCK WASHER,3/8"

3/8"

8шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

20

A181776

STEP

- tread, foot (Replaces A177097)

2шт.

21

A181777

STEP

- tread, foot (Replaces A177098)

1шт.

22

118-141

PLOW BOLT,3/8"-16 x 1 1/2", G5

BOLT - plow, 3/8 NC x 1-1/2 inch

12шт.

23

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

12шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

12шт.
