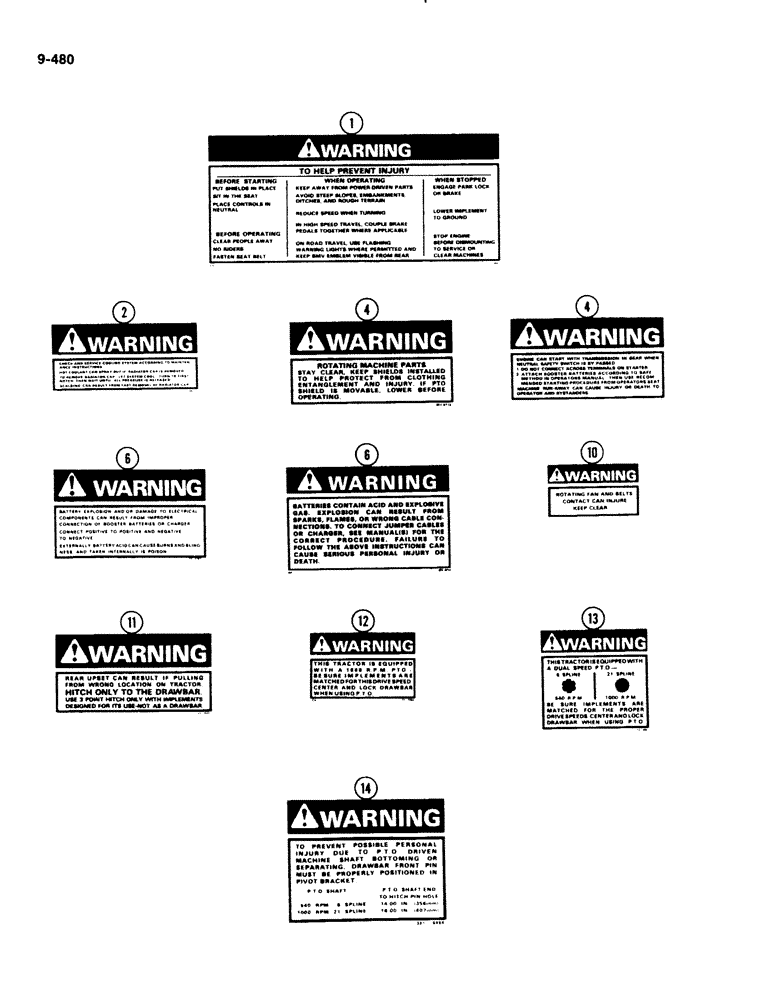

Запчасти Case IH 2294 (9-480) - DECALS, SAFETY (09) - CHASSIS/ATTACHMENTS

A67551

DECAL

KIT - safety, Includes: Ref. 1 - 13

1шт.

1

321-6641

DECAL

- operating instructions

1шт.

2

321-6672

DECAL

- radiator

1шт.

3

321-6715

DECAL

- PTO (Replaces 321-3710)

1шт.

4

321-3709

DECAL

- starting

1шт.

6

321-6714

DECAL

- battery cables and acid (Replaces 321-3707 and 321-2996)

2шт.

10

321-3596

DECAL

- fan belt

2шт.

11

321-3845

DECAL

- drawbar

1шт.

12

321-3900

DECAL

- 1000 RPM PTO

1шт.

13

321-3901

DECAL

- dual speed PTO

1шт.

14

321-5459

DECAL

- hitch pin warning

1шт.

A46520

DECAL

KIT - French language, includes items listed below

1шт.

Also includes items listed on Figure 9-478.

1шт.

1

321-6660

DECAL

- operating instructions

1шт.

2

321-6701

DECAL

- cooling system (Replacs 321-5584)

1шт.

3

321-6647

DECAL

- rotating PTO

1шт.

4

321-5581

DECAL

- starting

1шт.

6

321-6719

DECAL

- battery cables and acid (Replaces 321-5582 and 321-5531)

1шт.

10

321-5604

DECAL

- fan belt

2шт.

11

321-5580

DECAL

- hitch instruction

1шт.

12

321-5621

DECAL

- 1000 RPM PTO

1шт.

13

321-5585

DECAL

- dual speed, 540/1000 RPM

1шт.

14

321-5791

DECAL

- hitch pin warning

1шт.

321-5583

DECAL

- operating instruction (Not used this application)

1шт.

321-5619

DECAL

- operating instruction (Not used this application)

1шт.

321-5790

DECAL

- implement lift

1шт.
