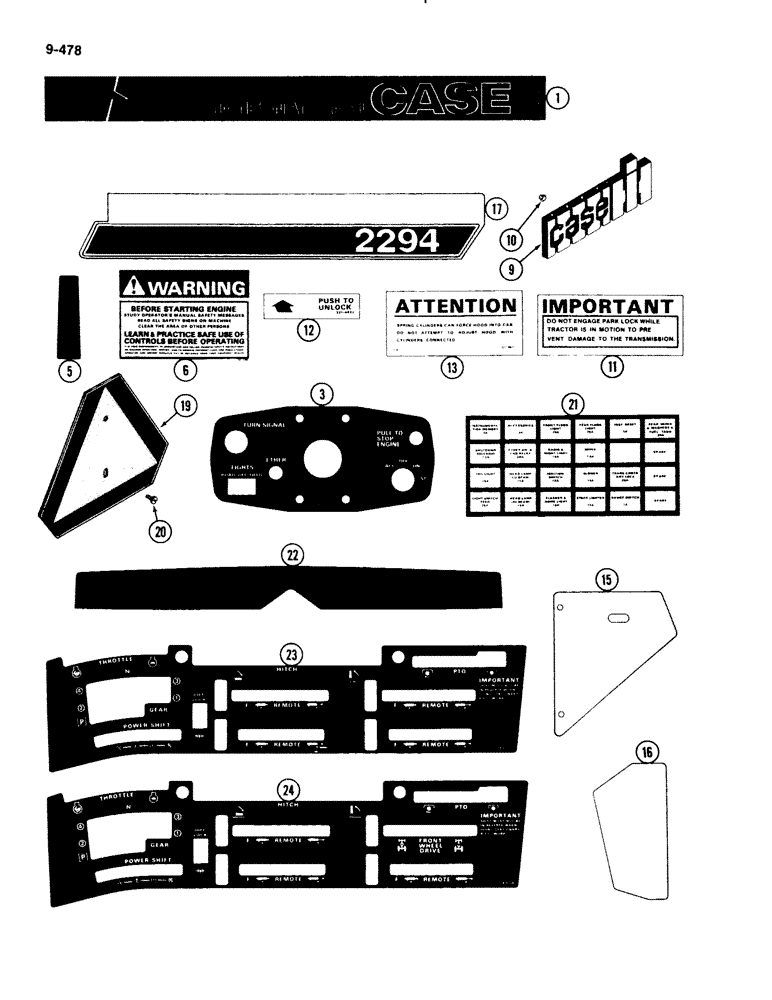

Запчасти Case IH 2294 (9-478) - TRACTOR DECALS, CASE IH (09) - CHASSIS/ATTACHMENTS

A67647

TRACTOR KIT - decal, Includes: Ref. 1 - 16

1шт.

1

A181403

DECAL

- Case stripe, right

1шт.

1

A181404

DECAL

- Case stripe, left

1шт.

3

A167975

DECAL

- control panel

1шт.

5

321-4142

DECAL

- sight line (on hood)

1шт.

6

321-3705

DECAL

- starting instructions

1шт.

9

A181437

EMBLEM CASE/IH

EMBLEM - Case IH mark

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - emblem retaining, self tapping, 1/4 inch

2шт.

11

321-5264

DECAL

- park lock

1шт.

12

321-4622

DECAL

- hood unlatch

1шт.

13

321-4621

DECAL

- tilt hood adjust

2шт.

15

A181392

DECAL

- rear fender, right side (Rear)

1шт.

15

A181391

DECAL

- rear fender, left side (Rear)

1шт.

16

A181390

DECAL

- rear fender, right side (Front)

1шт.

16

A181389

DECAL

- rear fender, left side (Front)

1шт.

17

A181395

DECAL

- 2294 model no., right

1шт.

17

A181396

DECAL

- 2294 model no., left

1шт.

19

A163604

DECAL

EMBLEM - SMV (Order D123347)

2шт.

20

182-540

SCREW,Sl Pan Hd, 1/4" - 20 x 3/8"

- Phillips pan head, 1/4 NC x 3/8 inch

2шт.

21

A177790

DECAL

- fuse location (Replacs A165867)

1шт.

22

321-6446

DECAL

- cab roof

1шт.

23

A167977

DECAL

- console, 12 speed

1шт.

24

A167978

DECAL

- console, 12 speed (MFD tractor)

1шт.

A46520

DECAL

KIT - French language, includes items listed below

1шт.

Also includes items listed on Figure 9-480.

1шт.

321-5793

DECAL

- diesel fuel (If equipped)

1шт.

6

321-6646

DECAL

- starting instructions

1шт.

11

321-5789

DECAL - park lock engagement

1шт.

12

321-5625

DECAL

- hood unlatch

1шт.

13

321-5624

DECAL - tilt hood adjust

2шт.

321-6206

DECAL - steering console (Not used this application)

1шт.

321-5792

DECAL - 12 speed chart (Not used this application)

1шт.

321-5627

DECAL - 12 speed chart (Not used this application)

1шт.

321-5626

DECAL - 8 speed chart (Not used this application)

1шт.

321-5861

DECAL - fuse location (On firewall)

1шт.

A176278

DECAL

- fuse location (Inside fuse panel cover) (Replaces A169143)

1шт.
