Запчасти Case IH 2294 (9-468) - SEAT, VINYL WITHOUT SWIVEL (09) - CHASSIS/ATTACHMENTS

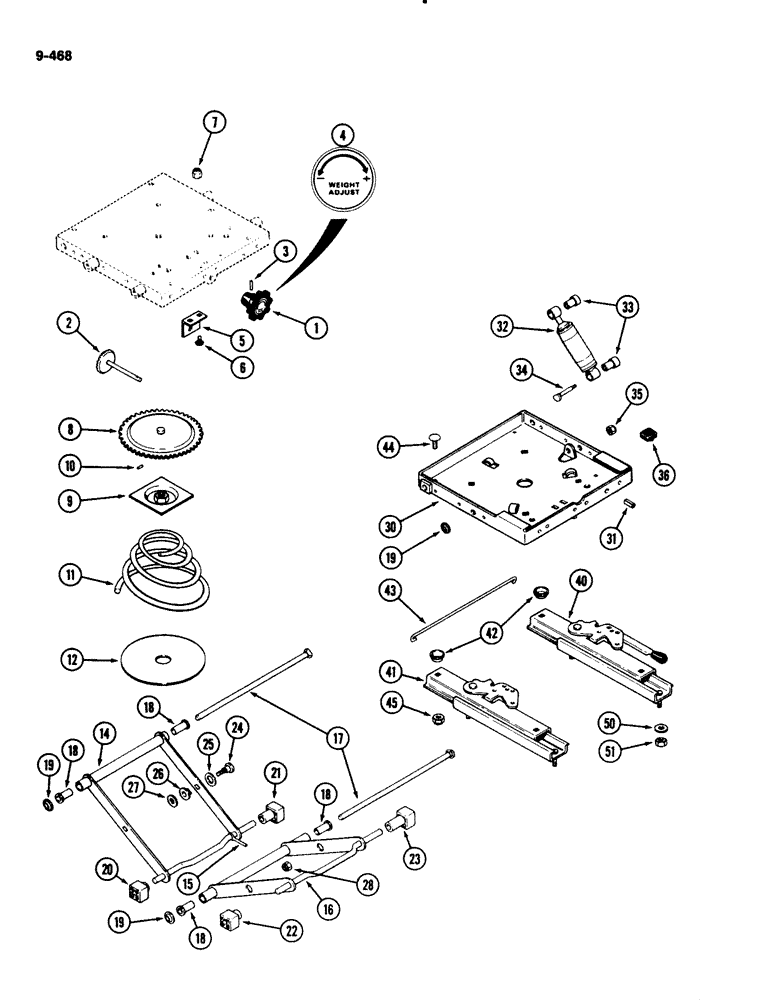

Схема запчастей Case IH 2294 - (9-468) - SEAT, VINYL WITHOUT SWIVEL (09) - CHASSIS/ATTACHMENTS
28
26
12
24
30
6
19
16
23
11
36
18
20
18
31
16
18
44
50
51
45
15
5
9
19
10
34
35
3
22
21
42
43
1
41
8
40
25
2
17
4
14
32
7
27
33
19

Артикул

Название

Примечание

Количество

A139547

SEAT

AND SUSPENSION ASSEMBLY - vinyl without swivel (Continued from Figure 9-466), Includes: Ref. 1 - 45

1шт.

1

A45508

BUTTON

KNOB - weight adjustment

1шт.

2

A45513

GEAR

AND SHAFT - weight adjustment

1шт.

3

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

4

A45511

DECAL

- weight adjustment

1шт.

5

A45531

BRACKET

- shaft

1шт.

6

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - round head square neck, 1/4 NC x 1/2 inch (Grade 2)

2шт.

7

131-2

NUT,1/4"-20, GB

NUT - hex jam, 1/4 inch NC

2шт.

8

A45505

GEAR

AND SHAFT - seat

1шт.

9

A45504

SPRING WASHER

- spring

1шт.

10

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, 5/32" x 3/4", Slotted

1шт.

11

A45497

SPRING

- conical

1шт.

12

A45530

PAD

- spring

1шт.

14

A45533

TUBE

ARM ASSEMBLY - outer (Order A47759)

1шт.

15

A47070

INDICATOR

- ride height

1шт.

16

A45532

TUBE

ARM - inner (Order A47759)

1шт.

17

A45057

SHAFT

- bearing

2шт.

18

A45496

TUBE

- bearing (Order A47760)

4шт.

19

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, (Pal type) Push, 1/2"

4шт.

20

A45512

BLOCK

- slider, 1-3/16 inch (30 mm)

1шт.

21

A45516

BLOCK

- slider, 2-3/16 inch (56 mm)

1шт.

22

A45515

BLOCK

- slider, 1-9/16 inch (40 mm)

1шт.

23

A45517

BLOCK

- slider, 2-9/16 inch (65 mm)

1шт.

24

A45055

BOLT

- round head square neck, 3/8 NC x 1-3/4 inch

2шт.

25

A45110

WASHER

- spacer

2шт.

26

A45498

BUSHING

BEARING - cross pivot (Order A47759)

2шт.

27

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

2шт.

28

131-52

NUT,3/8"-16, GC

NUT - hex jam, 3/8 inch NC

2шт.

30

A45550

FRAME

BASE - lower

1шт.

31

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

32

A45503

SHOCK ABSORBER

- seat

1шт.

33

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

2шт.

34

A45056

STEP BOLT

BOLT - shoulder

1шт.

35

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex nylon insert, 3/8 inch NC

1шт.

36

A45054

BUMPER,Neoprene

- seat

2шт.

40

A45522

SLIDE

ASSEMBLY - left, seat mounting, Includes handle and spring

1шт.

L35503

SPRING

- slide return (Replaces A45060)

1шт.

41

A45523

SLIDE

ASSEMBLY - right, seat mounting, includes spring

1шт.

L35503

SPRING

- slide return (Replaces A45060)

1шт.

42

NSS

NOT SOLD SEPARAT

SPACER - slider (Supplied with slides)

4шт.

43

A45524

ROD

- latch connecting

1шт.

44

111-220

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - round head square neck, 5/16 NC x 7/8 inch (Grade 2)

4шт.

45

131-464

LOCK NUT,5/16"-18, G8

NUT - hex nylon insert, 5/16 inch NC

4шт.

50

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 mm)

4шт.

51

131-205

LOCK NUT,5/16"-18

NUT - hex lock, 5/16 inch NC

4шт.

Выбрано товаров: 45
