Запчасти Case IH 2294 (9-456) - SEAT, AIR/OIL SUSPENSION, P.I.N. 9938101 AND AFTER (09) - CHASSIS/ATTACHMENTS

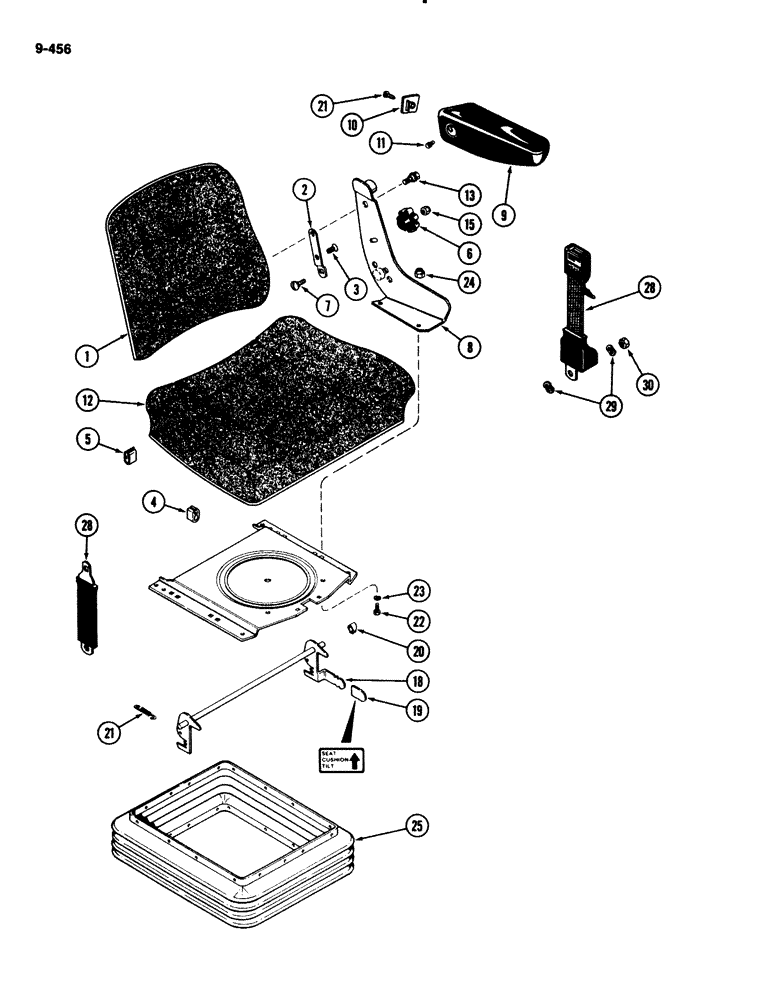

Схема запчастей Case IH 2294 - (9-456) - SEAT, AIR/OIL SUSPENSION, P.I.N. 9938101 AND AFTER (09) - CHASSIS/ATTACHMENTS
28
20
8
28
19
6
23
18
29
9
4
24
1
25
22
3
30
13
5
21
7
11
2
12
21
15
10

Артикул

Название

Примечание

Количество

A181028

SEAT

ASSEMBLY - air/oil suspension, Includes: Ref. 1 - 30

1шт.

A49826

SEAT

BACKREST ASSEMBLY - seat, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - backrest (Order A49826)

1шт.

2

A48343

LINK

- backrest tilt

2шт.

3

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

- flat head, 3/8 NC x 1 inch

2шт.

4

N9034

SEAT

CLIP - cushion retaining

2шт.

5

N6674

CLIP

- cushion retaining

2шт.

6

A45487

BUTTON

KNOB - backrest tilt

2шт.

7

A45527

CARRIAGE BOLT

- tilt knob

2шт.

8

A49517

BRACKET

- armrest, right

1шт.

8

A49516

BRACKET

- armrest, left (Shown)

1шт.

9

A49515

ARMREST

- seat, right

1шт.

9

A49514

ARMREST

- seat, left (Shown)

1шт.

10

A45584

COVER

PLATE - cover, right

1шт.

10

A45583

PLATE

- cover, left (Shown)

1шт.

11

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

12

A49825

SEAT

CUSHION - seat

1шт.

13

A48346

BOLT

- back tilt

2шт.

13

A47781

BOLT,Hex Flg, 1/2" - 13 x 1.25", Gr 5

BOLT - seat tilt

2шт.

15

131-179

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

2шт.

18

A49518

LEVER

TILT ASSEMBLY - seat

1шт.

19

D82870

KNOB

CAP - tilt

1шт.

20

A49519

SPACER

- lever

2шт.

21

A45471

- tension, tilt lever

2шт.

22

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 1-3/4 inch

4шт.

23

A47352

WASHER

- retaining

4шт.

24

131-179

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

4шт.

25

A49618

BOOT

- seat

1шт.

28

A46982

SAFETY BELT

SAFETY BELT

1шт.

29

A46987

WASHER

- wave

4шт.

30

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

2шт.
