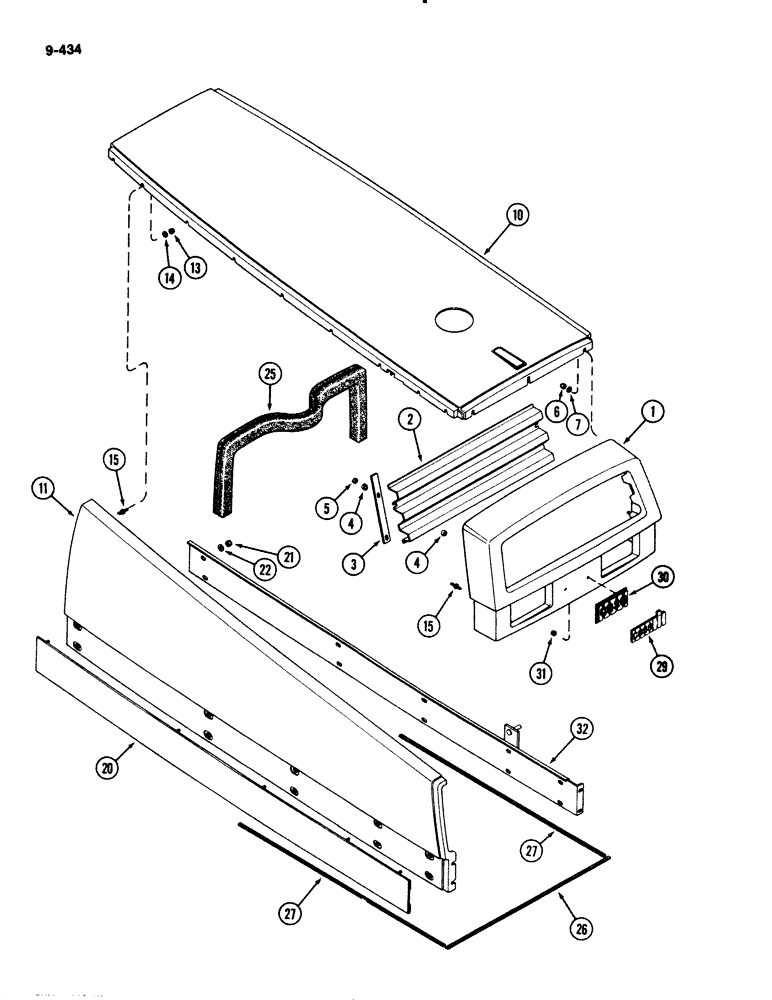

Запчасти Case IH 2294 (9-434) - UPPER GRILLE, HOOD AND PANELS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A145887
GUARD
GRILLE ASSEMBLY - upper (Includes studs, see Ref 15) (White)
1шт.
1
A181468
GRILLE
ASSEMBLY - upper (Includes studs, see Ref 15) (Red)
1шт.
2
A162560
SCREEN
- upper grille
1шт.
3
A147667
BRACKET
- grille screen
2шт.
4
A147030
SPACER
- grille screen
8шт.
5
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, 1/4"-20, GA
4шт.
6
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, (Grille to hood) 1/4"-20, GA
3шт.
7
195-102
WASHER,1/4"
- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)
3шт.
10
A145886
HOOD
- upper (White)
1шт.
10
A181467
HOOD
- upper (Red)
1шт.
11
A145622
PANEL
ASSEMBLY - left side (Includes studs, see Ref 15) (White)
1шт.
11
A181463
PANEL
ASSEMBLY - left side (Includes studs, see Ref 15) (Red)
1шт.
11
A145623
PANEL
ASSEMBLY - right side (Includes studs, see Ref 15) (White)
1шт.
11
A181462
PANEL
ASSEMBLY - right side (Includes studs, see Ref 15) (Red)
1шт.
13
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, 1/4"-20, GA
18шт.
14
195-102
WASHER,1/4"
- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)
18шт.
15
A160247
STUD
- hood mounting, 1/4 inch NC
29шт.
20
A145688
PANEL
- decal
2шт.
21
131-205
LOCK NUT,5/16"-18
NUT - hex jam lock, 5/16 inch NC
20шт.
22
195-103
WASHER,5/16"
- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)
20шт.
25
A149299
SEAL PROTECTION
- hood and panels
1шт.
26
A162383
SEAL
SEAL - hood to grille (Order A162397 and cut to required length)
1шт.
A162397
SEAL
- adhesive sided, 50 feet (15 m)
1шт.
27
A162381
STRIP
SEAL - hood to grille (Order A162397 and cut to required length)
1шт.
A162398
SEAL
- adhesive sided, 50 feet (15 m)
1шт.
29
A181437
EMBLEM CASE/IH
EMBLEM - grille, Case IH mark
1шт.
30
321-4739
EMBLEM
- grille, Case mark
1шт.
31
131-431
PUSH-ON NUT,Self, Threading, 1/4"
NUT - self-threading, 1/4 inch
2шт.
32
A145989
FRAME
- hood, left
1шт.
32
A145988
FRAME
- hood, right (Shown)
1шт.
Выбрано товаров: 30
